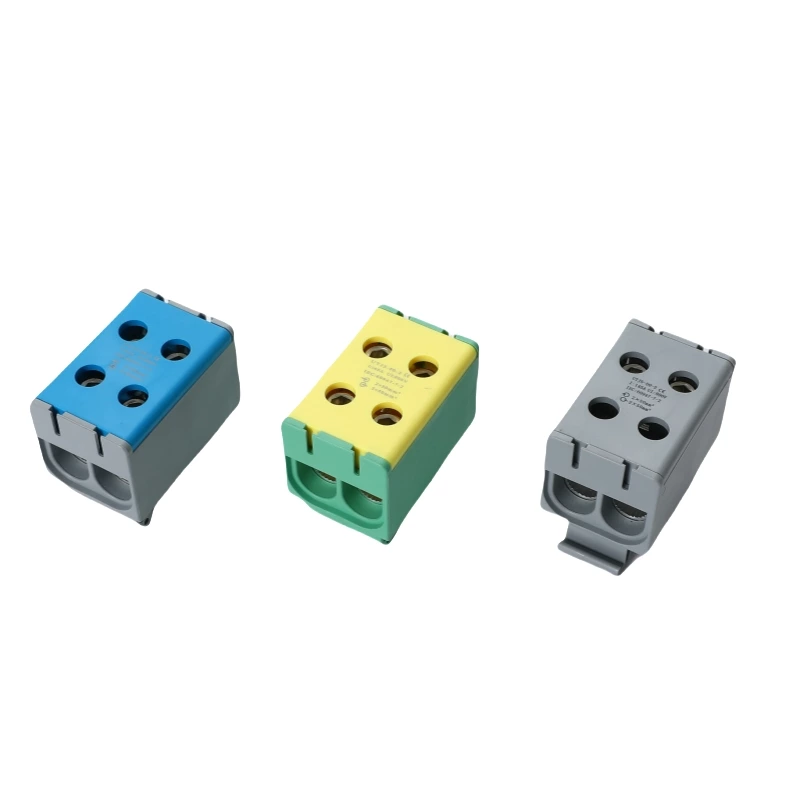

Wire Connector Aluminum Industrial Disteibution Terminal Blocks Thread Type SOT5-50-2 For Al/Cu Connector 2*50mm2
- Part:
- SOT5-50-2
- Rated current:
- 145A
- Rated voltage conductor:
- 800V
- Product Certification:
- CE
- Order No.:
- SOT5-50-2
- Packaging Details:
- CTNS
- Delivery Time:
- within7-14days
- Payment Terms:
- T/T
- Supply Ability:
- 100000 pcs per month
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description
Specification
| Item no. | Current(A） | Voltage(V) | Dimensions(mm) | Wire section(mm2) | Screw specs | Entry Method | Product color |
| SOT5-16 | 63 | 800 | 14*44*40 | 16 | M6 | 1 in,1 out |  |
| SOT5-35 | 120 | 800 | 15.8*46*40 | 35 | M8 | 1 in,1 out | |
| SOT-35-2 | 120 | 800 | 27.8*46*40 | 2*35 | M6 | 1 in,3 out | |
| SOT5-50 | 145 | 800 | 17.8*50*43.3 | 50 | M10 | 1 in,1 out | |
| SOT5-50-2 | 145 | 800 | 31.8*50*43.3 | 2*50 | M10 | 1 in,3 out | |
| SOT5-50-3 | 145 | 800 | 44.8*50*43.3 | 3*50 | M10 | 1 in,5 out | |
| SOT5-95 | 220 | 800 | 24*91.4*49.2 | 95 | M14 | 1 in,1 out | |
| SOT5-95-2 | 220 | 800 | 42*91.4*49.2 | 2*95 | M14 | 1 in,3 out | |
| SOT5-150 | 240 | 800 | 28.8*101.6*60 | 150 | M18 | 1 in,1 out | |
| SOT5-240 | 380 | 800 | 36*130.7*66.7 | 240 | M20 | 1 in,1 out |
Advantage
Thick aluminum conductor ,lightweight,large cross-section,and strong corrosion resistance.
The brand new nylon PA66 can withstand high temperatures and pressures ,maintaining good performance in various harsh environments.
Equipped with hexagonal screws,unscrew the screw before wiring,tighten the screws after connecting the wires,and complete the wiring with firmness and durability.
Location
Packaging
FAQs
01. How many employees does your factory have?
We have over 130 employees, covering the entire production chain.
02. Which type of rail is it compatible with? Can it be mounted using screws without a rail?
The base clip is compatible with standard 35mm DIN electrical rails (the universal rail found in distribution boxes). The base features a built-in mounting clip; once this clip is removed, the main unit exposes pre-drilled mounting holes, allowing it to be secured directly to the cabinet's base plate using self-tapping screws.
03. Can both solid and stranded copper wires be connected directly?
For single-strand solid wires, simply tightening the screw is sufficient; however, for multi-strand stranded wires, we recommend crimping a cold-press terminal onto the wire before connecting it to prevent loose strands, poor contact, or arcing.
04. How do I place an order?
Please send your purchase order to us via email, and we will send you a quotation and a pro forma invoice.
