high current plug socket electric vehicle energy storage connector ESS-200A-50-B/S-OR-90
- Part:
- ESS-200A-50-B/S-OR-90
- Number of contacts:
- 1
- Rated current:
- 200A
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description
high current plug socket electric vehicle energy storage connector ESS-200A-50-B/S-OR-90
Energy Storage Connector, Product range: ESS socket, Color: orange, Wire cross section: 50 mm², Rated voltage: 1500V, Rated current: 200 A, Connection method: Busbar/Screw, Contact type: needle
Connectors for energy storage systems: Connection technology for busbars and battery poles
Install your energy storage systems quickly, safely, and cost-effectively for applications up to 1,500 V – with pluggable battery connections via busbar connection or via battery pole connector. Benefit from the advantages of both connection technologies for front or rear connection.
Battery-pole connectors for free wiring
Device and cable connectors that are protected against polarity reversal are ideal for use in energy storage systems. Featuring a rotatable design, touch protection, and mechanical coding, the connectors provide a high degree of flexibility and safety when it comes to connecting battery poles.
- Can be rotated 360°: ideal for flexible cable outlets
- No incorrect plugging: battery connection protected against polarity reversal by mechanical coding
- Safe installation: touch-protected battery poles even when not plugged in
- Various color versions: facilitates identification of battery poles
- Flexible installation with different device connection technologies
Specification
Wiring data
| Wiring mode | Busbar/Screw |
| Protection grade (pair plug) | IP67 |
| Ambient temperature (operation) | -40°C ~ +125°C |
| Ambient temperature (storage/transportation) | -40°C ~ +80°C |
| Altitude | 2000m |
Mechanical properties
| Plugging times | 100 |
| Insertion force | <60N |
| Pullout force | >10N |
Material data
| Insulating material | Nylon |
| Halogen-free | Compliance with standards |
| Environmental protection matters | REACH/RoHS compliant |
| Sealing ring material | Silicone |
| Contact material | Copper alloy |
| Shell color | Orange |
| Flammability rating | UL94V-0 |
Electrical parameters
| Pollution level | 3 |
| Rated current | 200A / UL DC1500V |
| Insulation resistance | >5000MΩ |
| Contact resistance | ≤0.5mΩ |
Advantage
☑ Exclusive patents
☑ IP67 protection
☑ With safety locking latch
☑ The plug can rotate 360°after assembled
☑ The socket is with hand-proof protection
☑ With color-coded and mechnism-coded desgin avoiding misplug
Location

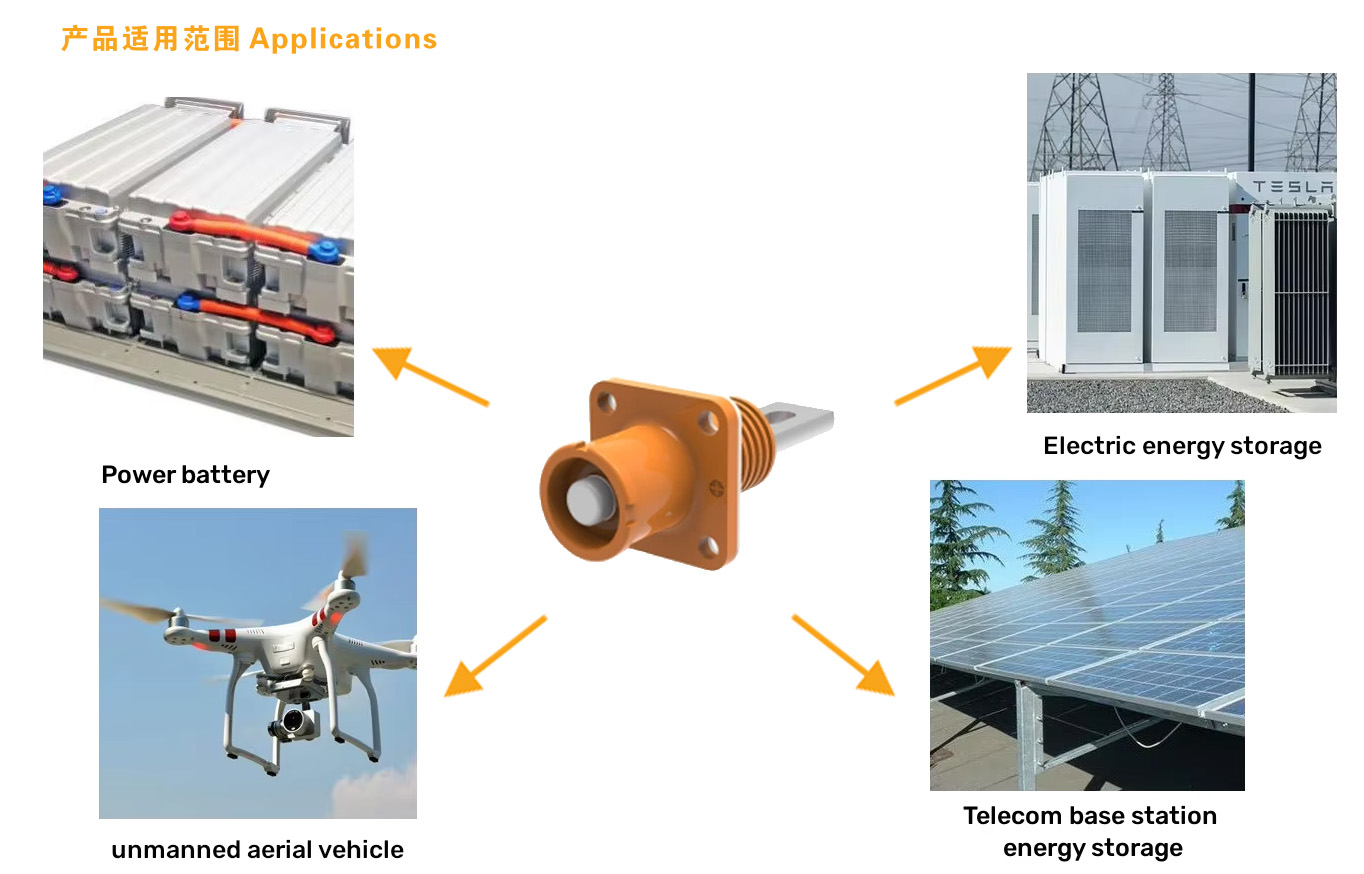

SMICO Energy Storage Connector Applications :
- Power battery
- Electric energy storage
- unmanned aerial vehicle
- Telecom base station energy storage
Packaging
Videos
FAQs
01. How many employees does your factory have?
We have over 130 employees, covering the entire production chain.
02. Is front plug mating reversible?
Anti-reverse design, positive & negative connectors have different coding, wrong polarity cannot plug together, avoid reverse connection short circuit.
03. What’s IP protection grade? Can it work outdoor directly?
Front mating side reaches IP65 after full installation (dustproof & splash-proof), cabinet inner side IP20; can resist outdoor rain but cannot be soaked in water long term.
