male female hvil hv high voltage connector energy battery storage ev connector

Part:
ESS-150A-35-C-BK-18
Number of contacts:
1
Rated current:
150A
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
male female hvil hv high voltage connector energy battery storage ev connector ESS-150A-35-C-BK-18

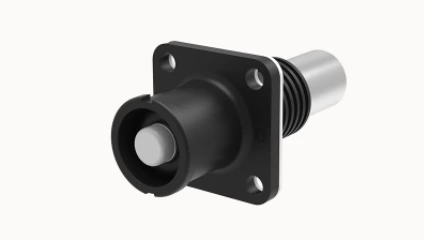

Energy Storage Connector, Product range: ESS socket, Color: black, Wire cross section: 35 mm², Rated voltage: 1500V, Rated current: 150 A, Connection method: Crimp, Contact type: Needle

Connectors for energy storage systems: Connection technology for busbars and battery poles

Install your energy storage systems quickly, safely, and cost-effectively for applications up to 1,500 V – with pluggable battery connections via busbar connection or via battery pole connector. Benefit from the advantages of both connection technologies for front or rear connection.

Battery-pole connectors for free wiring

Device and cable connectors that are protected against polarity reversal are ideal for use in energy storage systems. Featuring a rotatable design, touch protection, and mechanical coding, the connectors provide a high degree of flexibility and safety when it comes to connecting battery poles.

  • Can be rotated 360°: ideal for flexible cable outlets
  • No incorrect plugging: battery connection protected against polarity reversal by mechanical coding
  • Safe installation: touch-protected battery poles even when not plugged in
  • Various color versions: facilitates identification of battery poles
  • Flexible installation with different device connection technologies

male female hvil hv high voltage connector energy battery storage ev connector

Product advantages

☑ Exclusive patents
☑ IP67 protection
☑ With safety locking latch
☑ The plug can rotate 360°after assembled
☑ The socket is with hand-proof protection
☑ With color-coded and mechnism-coded desgin avoiding misplug

male female hvil hv high voltage connector energy battery storage ev connector

       Busbar       Screw           Crimp      Busbar/Screw

Wiring data
Wiring mode Crimp
Environment condition
Protection grade (pair plug) IP67
Ambient temperature (operation) -40°C ~ +125°C
Ambient temperature (storage/transportation) -40°C ~ +80°C
Altitude 2000m
Mechanical properties
Plugging times 100
Insertion force <100N
Pullout force >10N
Material data
Insulating material Nylon
Halogen-free Compliance with standards
Environmental protection matters REACH/RoHS compliant
Sealing ring material Silicone
Contact material Copper alloy
Shell color Black
Flammability rating UL94V-0
Electrical parameters
Pollution level 3
Rated current 150A / UL DC1500V
Insulation resistance >5000MΩ
Contact resistance ≤0.5mΩ

male female hvil hv high voltage connector energy battery storage ev connector
