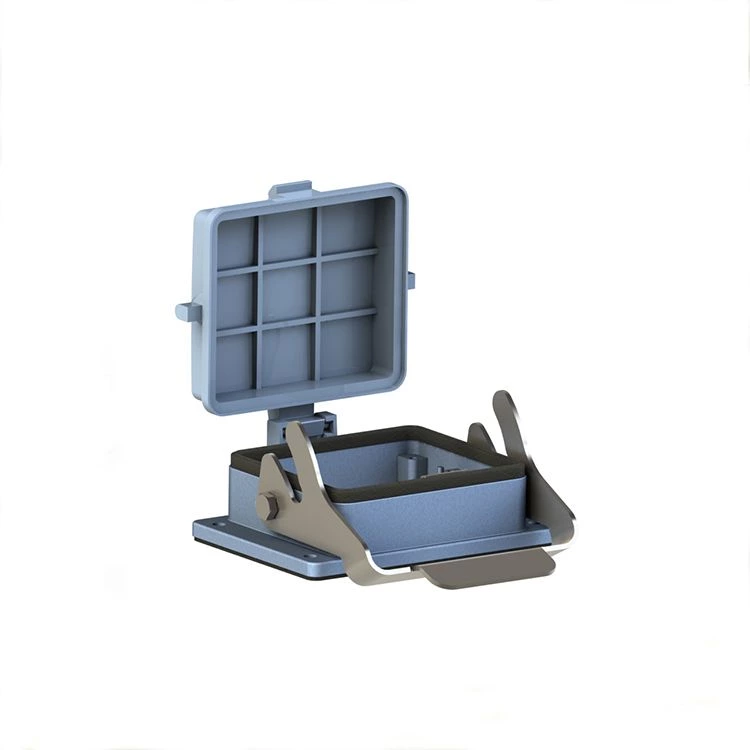

H32B Bulkhead mounted housings with thermo-plastic cover
Metal hoods/housing for industrial applications.
Locking levers:Easy Lock.
Field of application:for excellent mechanical and electrical protection in demanding environments, for example, in the automobile and mechanical engineering industries also for process and regulation control applications.
Distinguishing feature: Hoods/housings colour-coded grey(RAL 7037)
- Part:
- SO-H32B-ST-CV-1L/S
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09300320301
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
| Material | aluminium die-cast |
| Colour | Grey |
| Locking element | |
| ---Lever type | metal elastic pressing |
| ---Material | Stainless steel |
| Hoods/Housing sealing | NBR |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc.to UL 94 | V0 |
| Degree of protection acc.to EN 60529 for coupled connector | IP65 |
