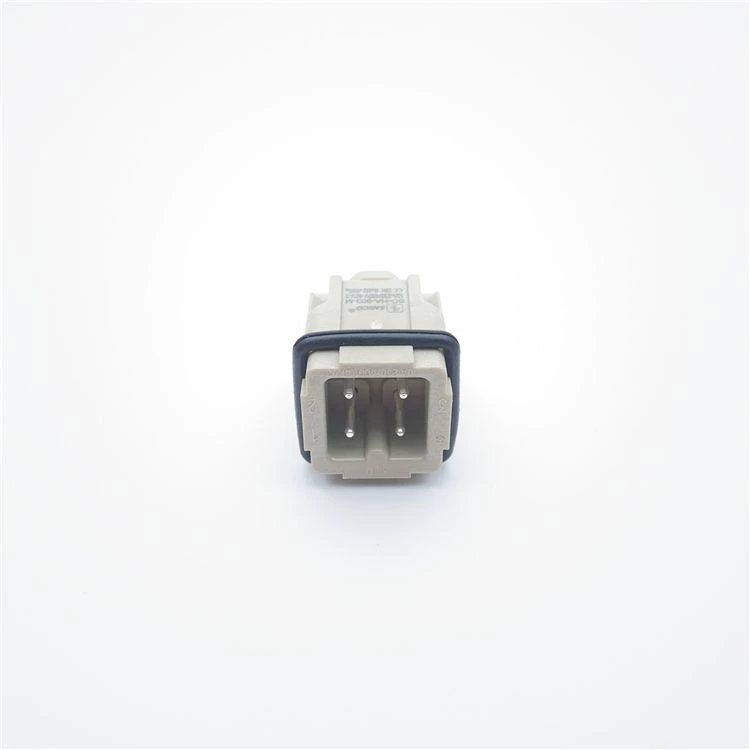

3pin HA Silm hdc heavy duty connectors insert 09200032611

Part:
SO-HA-003-M
Number of contacts:
3
Rated current:
10A
Rated voltage conductor:
230/400V
Order No.:
09200032611
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF

3pin HA Silm hdc heavy duty connectors insert  09200032611

3pin HA Silm hdc heavy duty connectors insert  09200032611

 HA Silm hdc heavy duty connectors insert -SMICO Connectivity 3pin 4pin  HA-003-M ,10A used for industrial robot ,various harness  field .

Different position to install and free combination to use .

3 Poles + PE, 10 A Male Screw Terminal :

Silm Inserts Suitable Shell:3AHood/Housing
Number of contacts 3
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage conductor 230/400V
---Rated impulse voltage 4kV
---Pollution degree 3
---or 10A 250V 4kV 3
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 1.0-2.5mm2
---AWG 18-14
---Tightening/Test torque 0.25N·m

SMICO heavy duty connector can match the following interchangeable.

The hood and housing for H3A .

Suppier Plug insert Socket insert
SMICO

SO-HA-003-M

SO-HA-003-F

H 09200032611 09200032611
ILME CKM03 CKF03
TE
LAPP EPIC 10420000 10421000
PHOENIX 1585252 1585265
MOLEX
WEIDMULLER HDC HA 3 MS HDC HA 3 FS
WIELAND 73.310.0353.0 73.300.0353.0
AMPHENOL





3pin HA Silm hdc heavy duty connectors insert  09200032611

3pin HA Silm hdc heavy duty connectors insert  09200032611

SMICO heavy duty connector

  • Compatible with other brands

  • accept OEM /ODM

  • accept customized colour : like blue ,black

  • The popular parts in stock , delivery time fast

  • Export Packing : Packing for each items respectively or packing for full one set

  • Without MOQ except the customized type

3pin HA Silm hdc heavy duty connectors insert  09200032611

SMICO Heavy duty connectors Applications :

  • Machinery
  • Automation
  • Robotics
  • Rail
  • Energy Distribution
  • Renewable Energy
  • Construction Machinery
  • Professional Light and Sound

3pin HA Silm hdc heavy duty connectors insert  09200032611

3pin HA Silm hdc heavy duty connectors insert  09200032611

Heavy duty connector H3A hood and Housing :

  1. H3A.P PC materials , white colour IP65
  2. HP3/H  Zine dia-cost ,epoxy poder coating ,black colour , IP68
  3. H3A Zinc die-cast  ,Grey colour ,IP65 ,Popular type

    Hood&Housing

    Material

    aluminium die-cast

    Colour

    Grey

    Locking element



    ---Lever type

    metal elastic pressing

    ---Material

    Stainless steel

    Hoods/Housing sealing

    NBR

    Limiting temperatures

    -40ºC...+125ºC

    Flammability acc.to UL 94

    V0

    Degree of protection acc.to EN 60529 for coupled connector

    IP65



3pin HA Silm hdc heavy duty connectors insert  09200032611
