Heavy duty connector EPIC HD series 80 poles

Heavy duty connector HD series 80 poles 80Poles + PE, 10A Female Crimping terminal : Inserts Suitable Shell:32BHood/Housing Number of contacts 80 Electrical data acc. to EN 61 984 ---Rated current 10A

Part:
SO-HD-080-FC
Number of contacts:
80 PINS
Rated current:
10A
Rated voltage conductor:
250v
Product Certification:
UL CUL CE ROHS DMT
Order No.:
09210403101
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF

Heavy duty connector EPIC - Heavy duty connector EPIC HD series 80 poles - China Smico Electrical

Heavy duty connector EPIC HD series 80 poles

Heavy duty connector EPIC HD series 80 poles

Heavy duty connector  HD series 80 poles

80Poles + PE, 10A Female Crimping terminal :

Inserts Suitable Shell:32BHood/Housing
Number of contacts 80
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage conductor 250V
---Rated impulse voltage 4kV
---Pollution degree 3
---Pollution degree 2 also 10A 230/400V 4kV 2
---Rated voltage acc. to UL/CSA 600V
---Rated voltage for wrap terminal acc. to CSA 2A 30V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤3mΩ
Crimp terminal
---Wrie gauge 0.14-2.5mm²
---AWG 26-14



SMICO heavy duty connector can match the following interchangeable.

The hood and housing for H32B .

Suppier Plug insert Socket insert
SMICO SO-HD-080-MC SO-080-FC
H 09210403001 09210403101
ILME CDM 40 CDF 40
TE
LAPP EPIC 11.2652 11.2662
PHOENIX 1584415 1584428
MOLEX
WEIDMULLER  HDC HD 40 MC  HDC HD 40 FC
WIELAND  73.710.4058.0 73.700.4058.0
AMPHENOL

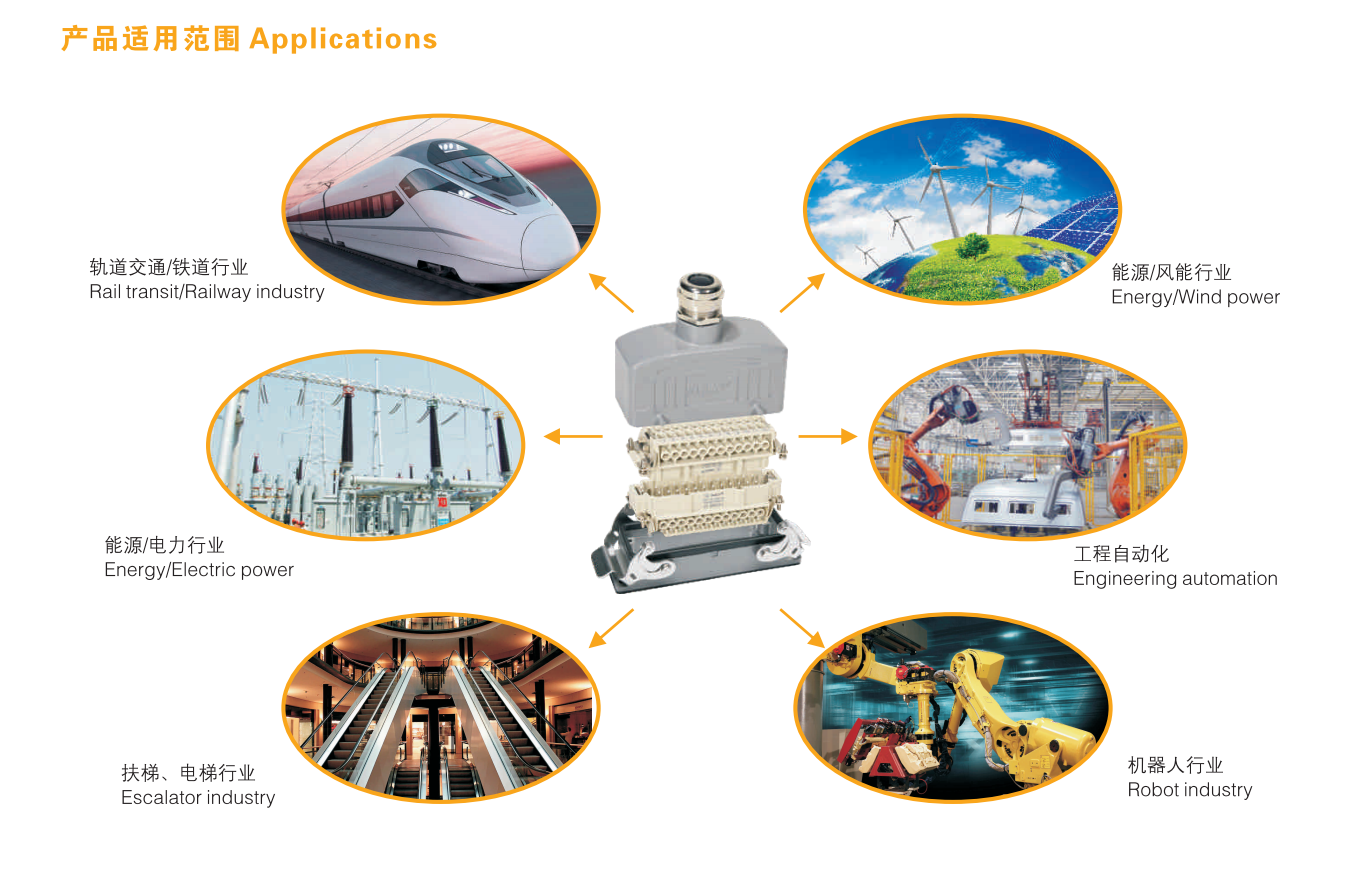

Heavy-duty connectors, also known as heavy-duty sockets, are widely used in construction machinery, textile machinery, packaging and printing machinery, tobacco machinery, electric locomotives and petrochemical electrical equipment that require electrical and signal connections.

Heavy duty connector EPIC HD series 80 poles

Advantages of heavy-duty connectors
1. Realize pre-installation, pre-installation of a large number of and complex circuits, which can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.
2. The heavy-duty connector provides a highly integrated connection, and the rich combination methods maximize the effective utilization of the equipment space.
3. Heavy-duty connector The connector conveniently and efficiently realizes the modular structure of each functional template block of the equipment, so that the equipment can be transported, installed, maintained and repaired conveniently and safely. Connectors are widely used in the field of power transmission and distribution.
4. The high protection level (IP65, IP68) provided by the heavy-duty connector is incomparable to the advantages of the equipment connection system under the harsh environment. Provide effective protection in harsh environments such as sand, rain, cold, ice and snow, and oil pollution.
