Rectangular heavy duty connector HDC-HEE-032 for Robot arms

Part:
SO-HEE-032-MC
Number of contacts:
32 PINS
Rated current:
16A
Rated voltage conductor:
500V
Product Certification:
UL CUL CE ROHS DMT
Order No.:
09320323001
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF

Rectangular heavy duty connector HDC-HEE-032 for Robot arms

Rectangular heavy duty connector HDC-HEE-032 for Robot arms

Rectangular heavy duty connector HDC-HE-032 for Robot arms with crimping wire terminal ,16A 500V , IP65 hood and housing . Protect the wire and each to connect and change the wire

32 Poles+PE,16A,Crimping male insert :

Inserts Suitable Shell:16BHood/Housing
Number of contacts 32
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 830V 8kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Crimp terminal
---Wrie gauge 0.14-4.0mm2
---AWG 26-12
---Stripping length 7.5mm

SMICO heavy duty connector can match the following interchangeable.

The hood and housing for H16B .

Suppier Plug insert Socket insert
SMICO SO-HEE-032-MC SO-HEE-032-FC
H '09320323001 09320323101
ILME
TE
LAPP EPIC 10.1844C0 10.1854C0
PHOENIX 1584732 1584745
MOLEX
WEIDMULLER HDC HEE 32 MC  HDC HEE 32 FC
WIELAND  70.810.3256.0 70.800.3256.0
AMPHENOL

Heavy-duty connectors, also known as HDC heavy-duty connectors, aviation plugs, are widely used in construction machinery, textile machinery, packaging and printing machinery, tobacco machinery, robots, rail transit, hot runners, electricity, automation, etc. that require electrical and signal connections In the device.

  The function of the heavy-duty connector
   1. Electrical insulation between connectors to avoid interference between signals.
        2. Fix the position of the connector, which is conducive to plugging and unplugging and the stability of the position.
        3. Provide mechanical protection and support for the insert body.
        4. Separate the connector from the application environment, reduce environmental pollution and corrosion of the connector, and extend the service life of the connector.

  The advantages of heavy-duty connectors
  1. Realize pre-installation, pre-installation of a large number of complicated circuits, which can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.
        2. The heavy-duty connector provides a highly integrated connection, and the abundant combination methods maximize the effective utilization of the equipment space.
       3. Heavy-duty connector The connector conveniently and efficiently realizes the modular structure of each functional template block in the equipment, so that the equipment can be transported, installed, maintained and repaired conveniently and safely. Connectors are widely used in the field of power transmission and distribution.
      4. The high protection level (IP65, IP68) provided by the heavy-duty connector is incomparable to the advantages of the equipment connection system in the harsh environment. Provide effective protection in harsh environments such as sand, dust, rain, cold, ice and snow, and oil pollution.

   heavy-duty connector wiring method
   1. Loosen the screw with a screwdriver, put the wire into the side hole of the insert, and then tighten the screw.
        2. To install the upper shell of the heavy-duty connector, use a screwdriver to unscrew the fixing screws of the insert, put the insert into the upper shell, and then tighten the fixing screws.
        3. For the installation of the lower shell of the heavy-duty connector, use the same method to fix the lower shell, and insert the upper shell and the lower shell of the inserted body into each other.

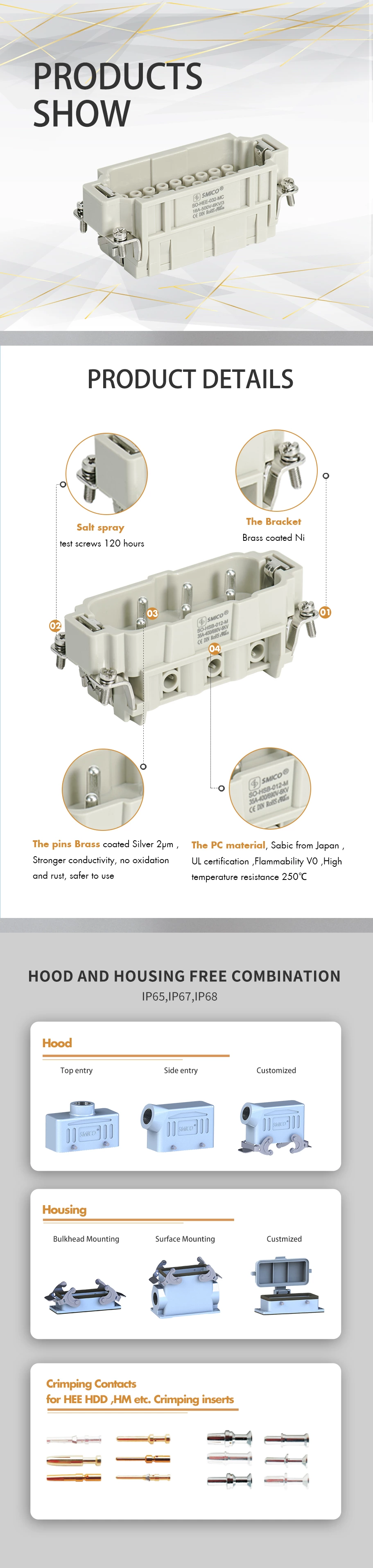

Rectangular heavy duty connector HDC-HEE-032 for Robot armsRectangular heavy duty connector HDC-HEE-032 for Robot arms

SMICO heavy duty connector

  • Compatible with other brands

  • accept OEM /ODM

  • accept customized colour : like blue ,black

  • The popular parts in stock , delivery time fast

  • Export Packing : Packing for each items respectively or packing for full one set

  • Without MOQ except the customized type

Rectangular heavy duty connector HDC-HEE-032 for Robot arms
