Crimping heavy duty connector HK-006/36-FC 09320123101

Part:
SO-HK-012/2-FC
Product Certification:
UL CUL CE ROHS DMT
Order No.:
09320123101
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF

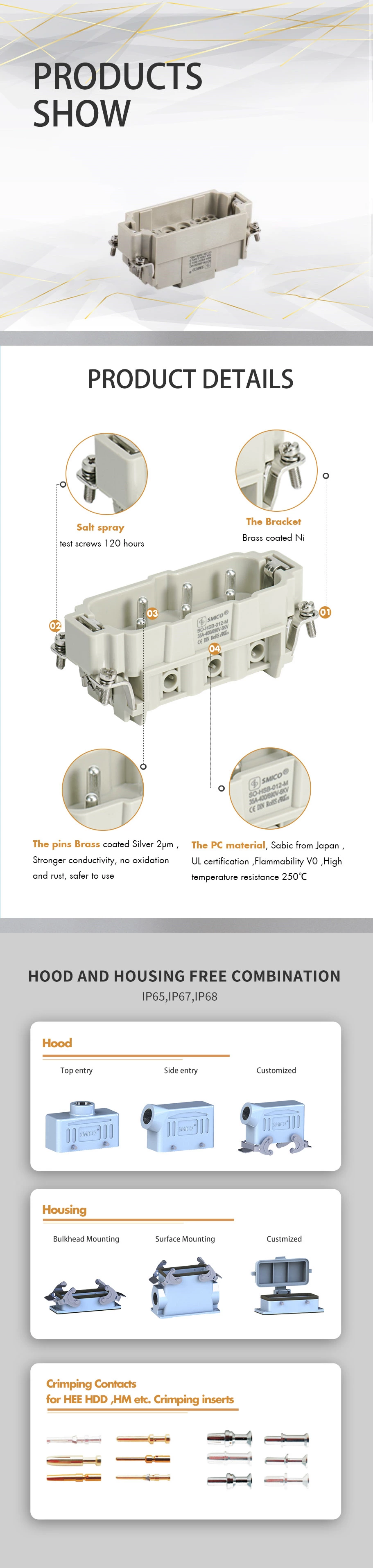

Crimping heavy duty connector HK-006/36-FC 09320123101

Crimping heavy duty connector HK-006/36-FC 09320123101

HK series Heavy Duty Rectangular Connector connect the power and signal area .
It's has different pins for them , avariety of combinations, suitable for different needs .
It has HK-004/0,HK-004/2 ,HK-004/8,HK-008/24,HK-006/36 etc.

6+36 Poles + PE, 40/10A Female Crimping Terminal :

Inserts Suitable Shell:16BHood/Housing
Number of contacts 6/36+PE
Electrical data acc. to EN 61 984
Power area
---Rated current 40A
---Rated voltage 690V
---Rated impulse voltage 8kV
---Pollution degree 3
Signal area
---Rated current 10A
---Rated voltage 160V
---Rated impulse voltage 2.5kV
---Pollution degree 3
Rated voltage acc. to UL/CSA 600/300V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Power contacts
---Material copper alloy
---Surface hard-silver plated
hard-gold plated
---Contact resistance ≤0.3mΩ
---Crimp terminal
------mm² 1.5-6mm²
------AWG 16-10
Signal contacts
---Material copper alloy
---Surface hard-silver plated
hard-gold plated
---Contact resistance ≤3mΩ
---Crimp terminal
------mm² 0.14-2.5mm²
------AWG 26-14

SMICO heavy duty connector can match the following interchangeable.

The hood and housing for H16B .

Suppier Plug insert Socket insert
SMICO SO-HK-006/36-M SO-HK-006/36-F
H 09380423001 09380423101
ILME CXM 6/36 CXF 6/36
TE T2120422101-000 T2120422201-000
LAPP EPIC
PHOENIX
MOLEX
WEIDMULLER HDC S6/36 MC HDC S6/36 FC
WIELAND 72.713.4253.0 72.703.4253.0
AMPHENOL

Crimping heavy duty connector HK-006/36-FC 09320123101Crimping heavy duty connector HK-006/36-FC 09320123101

SMICO heavy duty connector

  • Compatible with other brands

  • accept OEM /ODM

  • accept customized colour : like blue ,black

  • The popular parts in stock , delivery time fast

  • Export Packing : Packing for each items respectively or packing for full one set

  • Without MOQ except the customized type

Crimping heavy duty connector HK-006/36-FC 09320123101

SMICO Heavy duty connectors Applications :

  • Machinery
  • Automation
  • Robotics
  • Rail
  • Energy Distribution
  • Renewable Energy
  • Construction Machinery
  • Professional Light and Sound

Crimping heavy duty connector HK-006/36-FC 09320123101



Crimping heavy duty connector HK-006/36-FC 09320123101
