HK-004/2-F Female power heavy duty connector 09380062701
- Part:
- SO-HK-004/2-F
- Number of contacts:
- 4/2 PINS
- Rated current:
- 80A/16A
- Rated voltage conductor:
- 830/400V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09380062701
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description
\
Specification

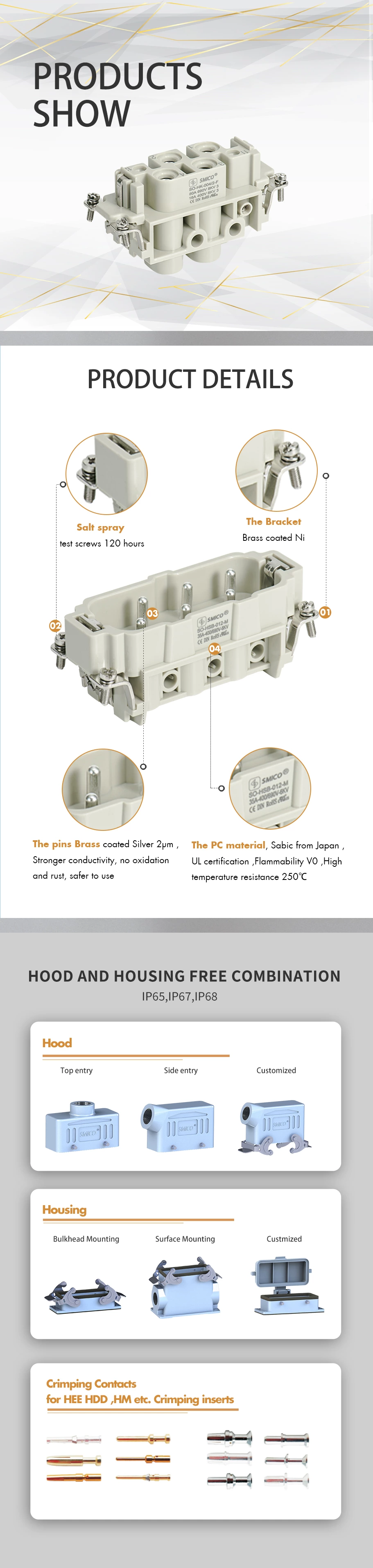

HK-004/2-F Female power heavy duty connector
HK-004/2-F Female 80A heavy duty connector , the 80A pins connect the power area , the 16A pins connect the signal area ,Combination of power and signal area in one connector,
Screw termination for power and signal area, it's used in the power combination boxes for plug socket .
4+2 Poles + PE, 80/16 A Femle Screw Terminal :
| Inserts | Suitable Shell:16BHood/Housing | ||||||||||||||
| Number of contacts | 4/2 | ||||||||||||||
| Electrical data acc. to EN 61 984 | |||||||||||||||
| Power area | |||||||||||||||
| ---Rated current | 80A | ||||||||||||||
| ---Rated voltage | 830V | ||||||||||||||
| ---Rated impulse voltage | 8kV | ||||||||||||||
| ---Pollution degree | 3 | ||||||||||||||
| ---Pollution degree 2 also | 80A 1000V 8kV 2 | ||||||||||||||
| Signal area | |||||||||||||||
| ---Rated current | 16A | ||||||||||||||
| ---Rated voltage | 400V | ||||||||||||||
| ---Rated impulse voltage | 6kV | ||||||||||||||
| ---Pollution degree | 3 | ||||||||||||||
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 | ||||||||||||||
| Rated voltage acc. to UL/CSA | 600/300V | ||||||||||||||
| Insulation resistance | ≥1010Ω | ||||||||||||||
| Material | polycarbonate | ||||||||||||||
| Limiting temperatures | -40℃...+125℃ | ||||||||||||||
| Flammability acc. to UL 94 | V0 | ||||||||||||||
| Mechanical working life(mating cycles) | ≥500 | ||||||||||||||
| Contacts | |||||||||||||||
| Power contacts | |||||||||||||||
| ---Material | copper alloy | ||||||||||||||
| ---Surface | hard-silver plated | ||||||||||||||
| ---Contact resistance | ≤0.3mΩ | ||||||||||||||
| ---Screw terminal | |||||||||||||||
| ------geometric wire gauge | 1.5-16mm² | ||||||||||||||
| ------AWG | 16-6 | ||||||||||||||
| ---Tightening tourque | |||||||||||||||
| ------mm² |
|
||||||||||||||
| ------N.m | |||||||||||||||
| ---Stripping length | 14mm | ||||||||||||||
| Signal contacts | |||||||||||||||
| ---Material | copper alloy | ||||||||||||||
| ---Surface | hard-silver plated | ||||||||||||||
| ---Contact resistance | ≤1mΩ | ||||||||||||||
| ---Screw terminal | |||||||||||||||
| ------mm² | 0.5-2.5mm² | ||||||||||||||
| ------AWG | 20-14 | ||||||||||||||
| ---Tightening tourque | 0.5Nm | ||||||||||||||
| ---Stripping length | 7.5mm | ||||||||||||||
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H16B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HK-004/2-M | SO-HK-004/2-F |
| H | 09380062611 | 09380062701 |
| ILME | CXM 4/2 | CXF 4/2 |
| TE | T2100062101-000 | T2100062201-000 |
| LAPP EPIC | ||
| PHOENIX | ||
| MOLEX | ||
| WEIDMULLER | HDC S4/2 MS | HDC S4/2 FS |
| WIELAND | 72.215.0653.0 | 72.205.0653.0 |
| AMPHENOL |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type
Location
SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| HK-004/2-F Female power heavy duty connector 09380062701 | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
