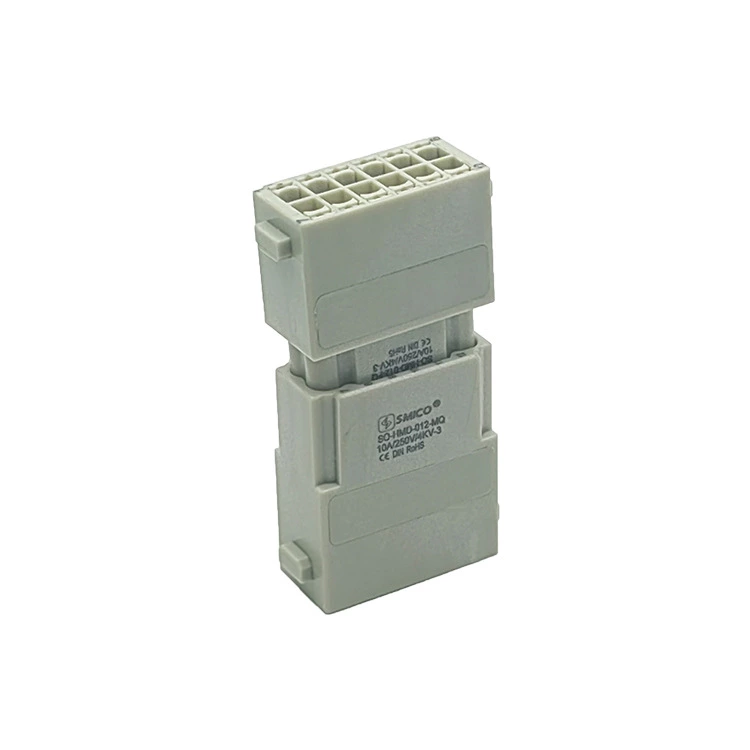

12 pins HMD-012-MQ male heavy duty connector Quick Lock module termination

Inserts Number of contacts 12 Electrical dataacc. to EN 61 984 ---Rated current 10A ---Rated voltage 250V ---Rated impulse voltage 4kV -Pollution degree 3 Rated voltage acc. to UL/CSA 600V Insulation

Part:
SO-HMD-012-MQ
Number of contacts:
12
Rated current:
10A
Rated voltage conductor:
250V
Order No.:
09140122632
Packaging Details:
EXPORT CARTON
Delivery Time:
WITHIN 7 DAYS
Payment Terms:
T/T
Supply Ability:
10000pcs/Month
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month

Heavy duty connector Quick Lock module - 12 pins HMD-012-MQ male heavy duty connector Quick Lock module termination - China Smico Electrical

12 pins HMD-012-MQ male  heavy duty connector Quick Lock module termination

Inserts
Number of contacts 12
Electrical dataacc. to EN 61 984
---Rated current 10A
---Rated voltage 250V
---Rated impulse voltage 4kV
-Pollution degree 3
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≤ 3 mΩ
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life -mating cycles ≥500
Contacts
Material copper alloy
Surface hard-silver plated

Contact resistance ≤1mΩ
Crimp terminal
---mm2 0.25-1.5mm2

12 pins HMD-012-MQ male  heavy duty connector Quick Lock module termination
