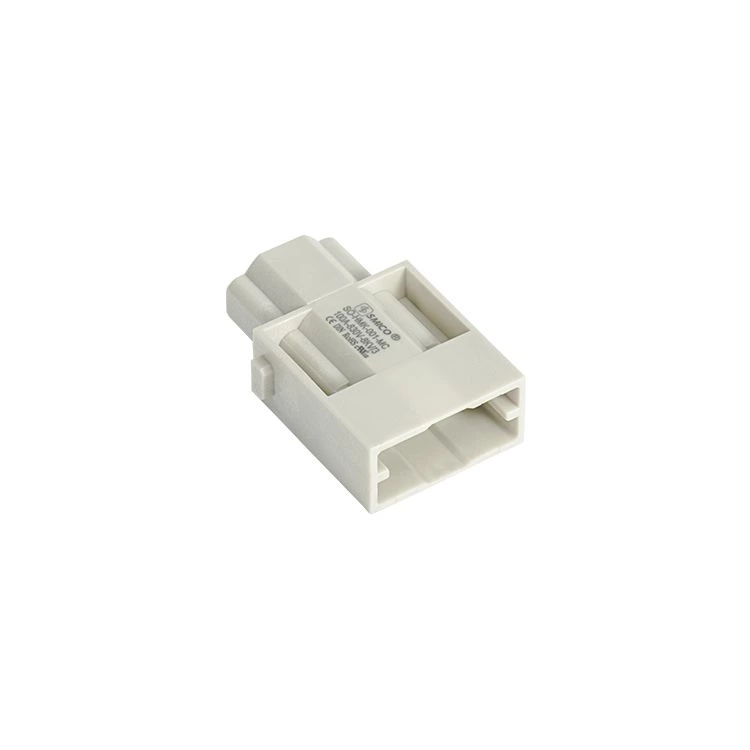

Electrical Connector Modular 1 Pin 100A Connectors With Silver Plated Contacts 09140013031 HMK-001-MC
- Part:
- SO-HMK-001-MC
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09140013031
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description
Specification
| Inserts | |
| Number of contacts | 1 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 100A |
| ---Rated voltage | 830V |
| ---Rated impulse voltage | 8KV |
| －Pollution degree | 3 |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Max. insulation diameter | 13mm |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤0.3mΩ |
| Crimp terminal | |
| ---mm2 | 10-35mm2 |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type
Location
SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| Electrical Connector Modular 1 Pin 100A Connectors With Silver Plated Contacts 09140013031 HMK-001-MC | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
