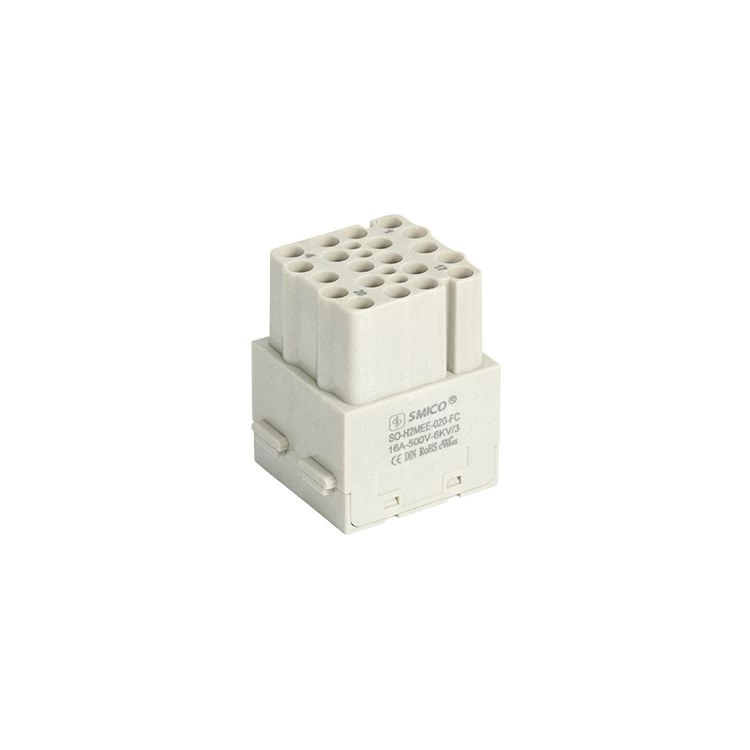

H2MEE Heavy Duty Electrical Connector High Contact Density 20 Pin
Suitable for HE Crimp contacts.
Higher density of crimp contacts.
Standard module for power up to 16A.
Also suitable as reliable signal connector.
- Part:
- SO-H2MEE-020-FC
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09140203101
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
| Inserts | |
| Number of contacts | 20 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| －Pollution degree | 3 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---mm2 | 0.14-4mm2 |
| ---AWG | 26-12 |
