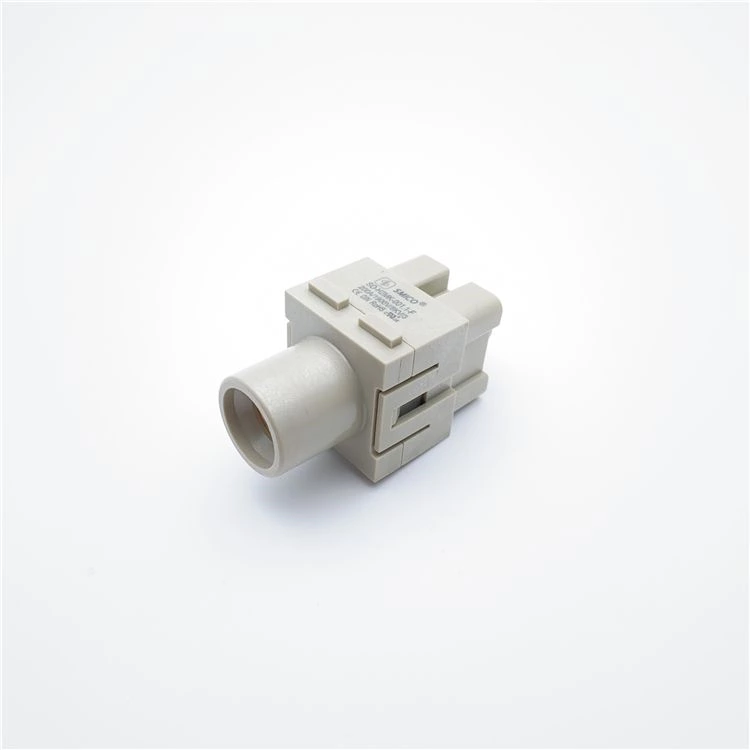

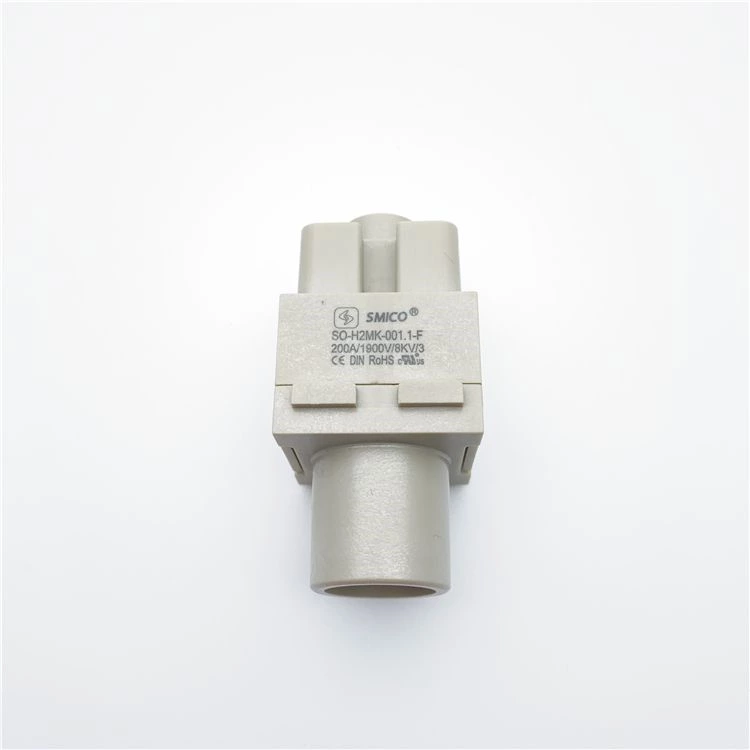

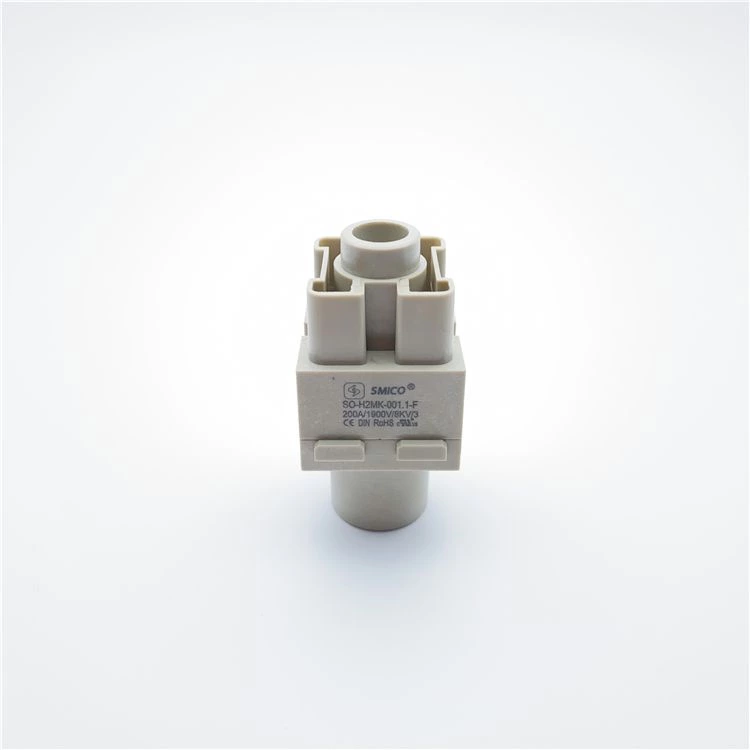

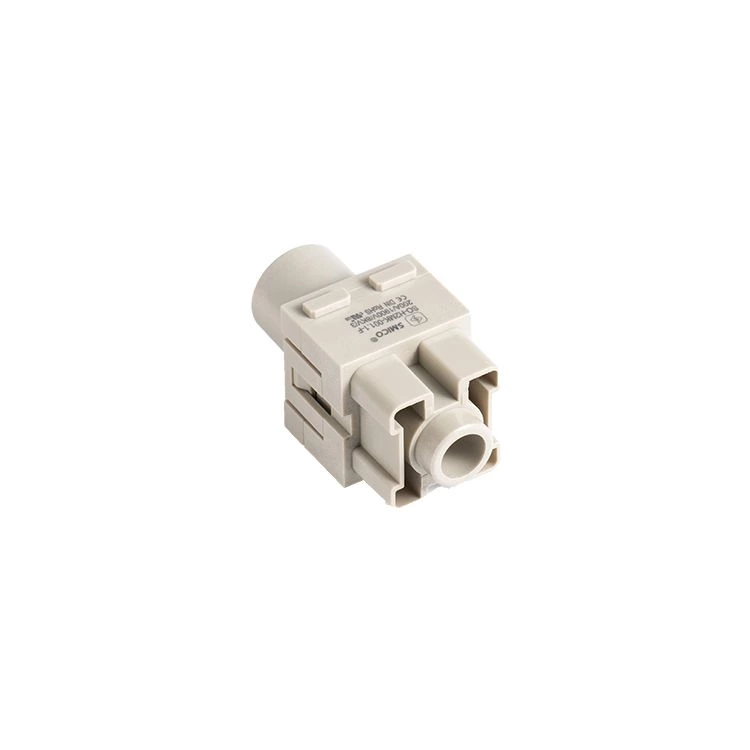

H2MK-001.1-F 200A screw Heavy Duty Connector 09140012763, 09140012762
- Part:
- SO-H2MK-001.1-F
- Number of contacts:
- 1
- Rated current:
- 200A
- Rated voltage conductor:
- 1000V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09140012763
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description
Specification
H2MK-001-F 200A screw Heavy Duty Connector 09140012763, 09140012762
H2MK-001-F 200A HV module Heavy Duty Connector
SMICO heavy duty connector 200A Crimp and Axial module are compatible other brand module.Contacts can be unlocked from the mating side .
1P 200A female screw terminal :
| Inserts | |||||||||||
| Number of contacts | 1 | ||||||||||
| Electrical dataacc. to EN 61 984 | |||||||||||
| ---Rated current | 200A | ||||||||||
| ---Rated voltage | 1900V | ||||||||||
| ---Rated impulse voltage | 8KV | ||||||||||
| －Pollution degree | 3 | ||||||||||
| Rated voltage acc. to UL | 600V | ||||||||||
| Insulation resistance | ≥10^10Ω | ||||||||||
| Material | polycarbonate | ||||||||||
| Limiting temperatures | -40℃...+125℃ | ||||||||||
| Flammability acc. to UL 94 | V0 | ||||||||||
| Mechanical working life -mating cycles | ≥500 | ||||||||||
| Contacts | |||||||||||
| Material | copper alloy | ||||||||||
| Surface | hard-silver plated | ||||||||||
| Contact resistance | 0.3mΩ | ||||||||||
| For stranded wire according to IEC 60 228 Class 5 | |||||||||||
| Screw terminal | |||||||||||
| ---Wire gauge | 25-70mm2 | ||||||||||
| ---AWG | 2-0 | ||||||||||
| ---Hexagonal driver | SW 5 | ||||||||||
| ---Stripping length | 16mm | ||||||||||
| ---Tightening tourque |
|
||||||||||
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type
Location
SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| H2MK-001.1-F 200A screw Heavy Duty Connector 09140012763, 09140012762 | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
