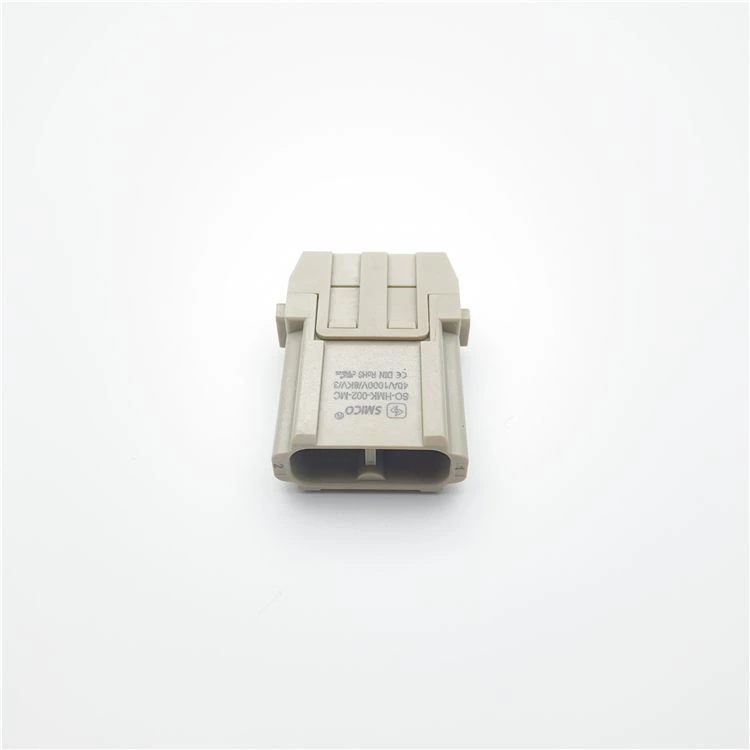

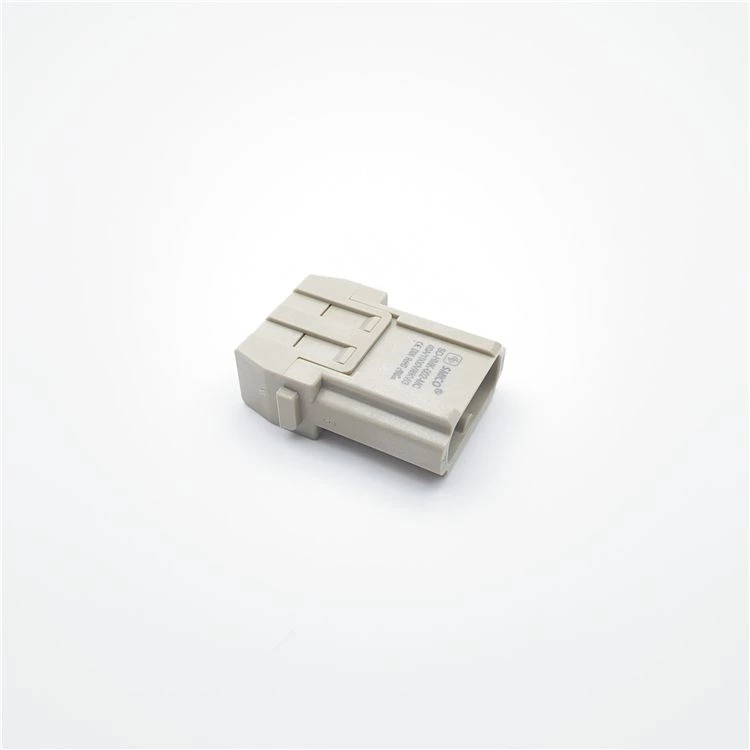

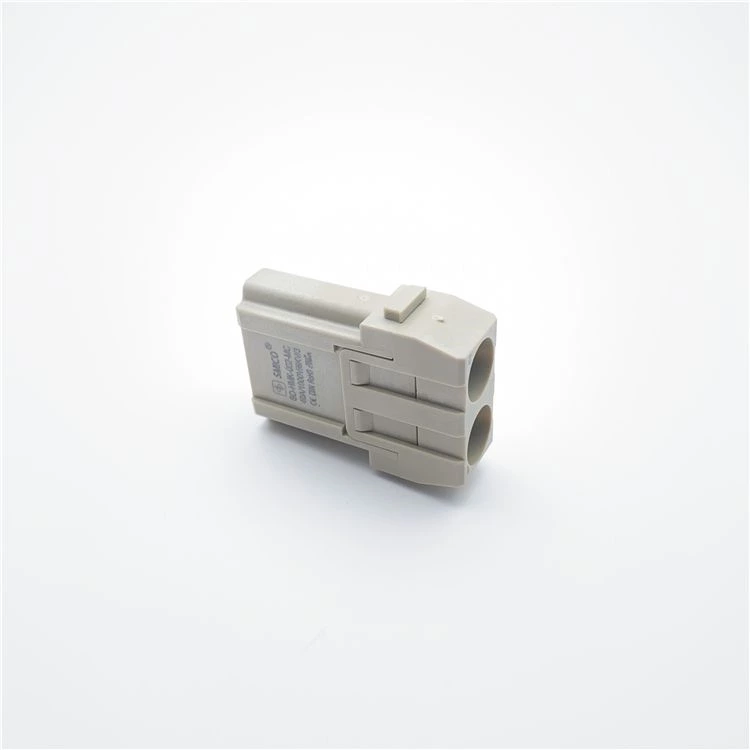

HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts

Crimp or axial screw termination available. No special tools required for axial-screw termination.
Part:
SO-HMK-002-MC
Product Certification:
UL CUL CE ROHS DMT
Order No.:
09140023002
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF

HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts

Inserts
Number of contacts 2
Electrical dataacc. to EN 61 984
---Rated current 40A
---Rated voltage 1000V
---Rated impulse voltage 8kV
-Pollution degree 3
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life -mating cycles ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance ≤0.3mΩ
Crimp terminal
---mm2 1.5-10mm2
---AWG 16-8

HDC Modular 2 Pin 40A Connectors With Silver Plated Contacts
