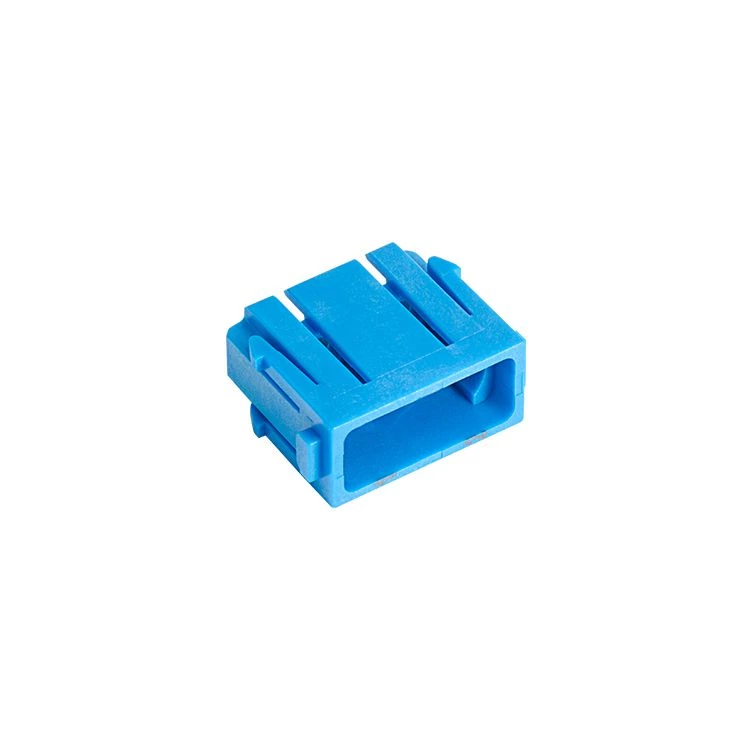

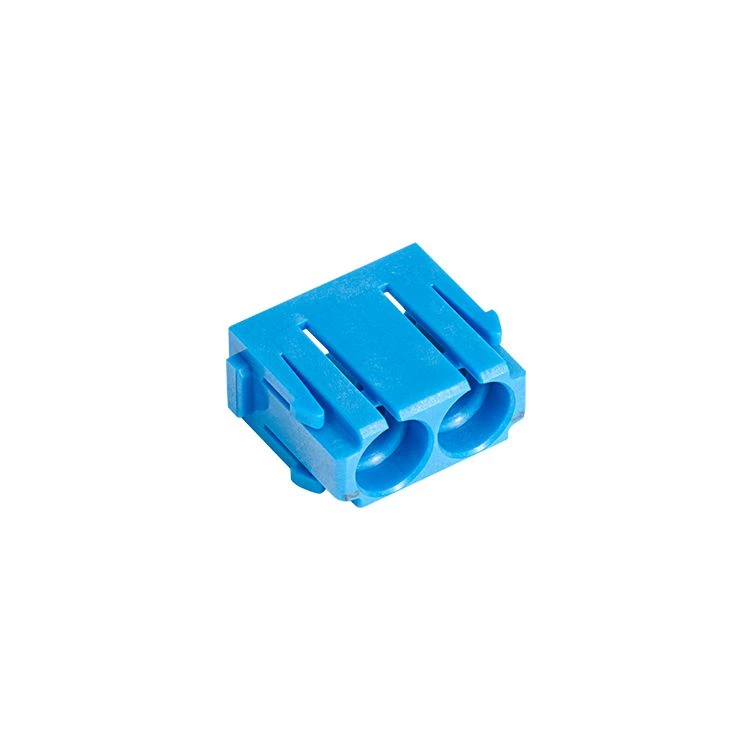

Pneumatic Heavy Duty Electrical Connector Polycarbonate Material

For the transmission of clean and dry compressed air. Female contacts with/without shut off. Removal of tubes from pre-assembled pneumatic contact is possible.
Part:
SO-HMP-002
Product Certification:
UL CUL CE ROHS DMT
Order No.:
09140024501
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF

Pneumatic Heavy Duty Electrical Connector Polycarbonate Material

Inserts
Number of contacts 2
Colour blue
Material polycarbonate
Limiting temperatures -40℃...+80℃
Flammability acc. to UL 94 V0
Mechanical working life -mating cycles ≥500
Contacts
Material delrin acetal
Colour black
Tube termination
---Internal diameter (ID) 6.0mm / 1/4“
Working pressure up to 8 bar / 116 psi
Sealing
---Material Buna-N
Shut off valve
---Material Polypropylen

Pneumatic Heavy Duty Electrical Connector Polycarbonate Material
