5pin 16A industrial quick lock connector heavy duty connectors HQ-005/0-MQ 09120052633
- Part:
- SO-HQ-005/0-MQ
- Number of contacts:
- 5
- Rated current:
- 16A
- Rated voltage conductor:
- 230/400V
- Product Certification:
- CE ROHS UKCA IEC-61984
- Order No.:
- 09120052633
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description
Specification
5pin 16A industrial quick lock connector heavy duty connectors HQ-005/0-MQ 09120052633
Industrial multi-pole heavy duty connectors is used according your demand to choose different pins and surface mounting to install .

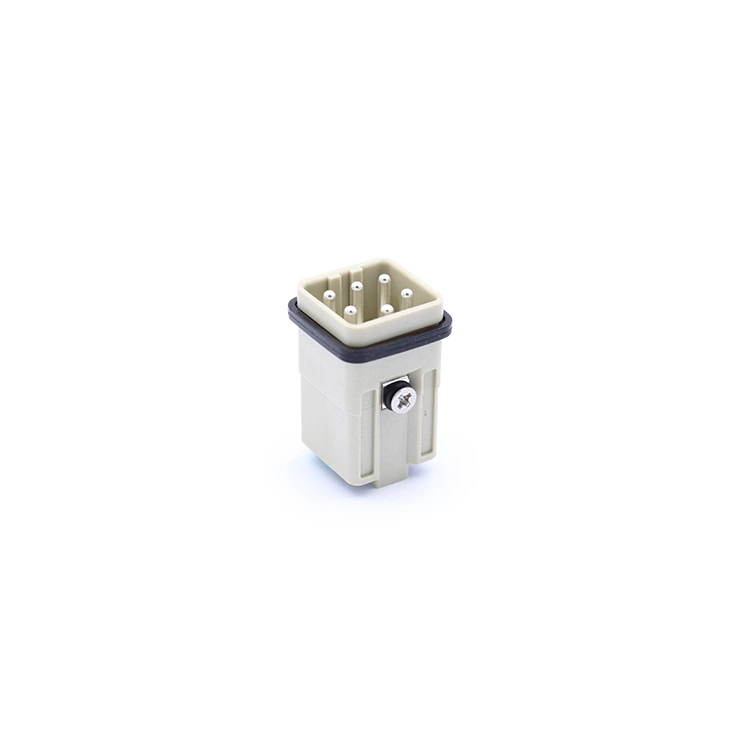

5 Poles + PE, 16A male Quick locking Terminal :
| Inserts | Suitable Shell:3AHood/Housing |
| Number of contacts | 5+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor -ground | 230/400V |
| ---Rated voltage conductor -conductor | 400V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 320/500V 4kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H3A .
| Suppier | Plug insert | Socket insert |

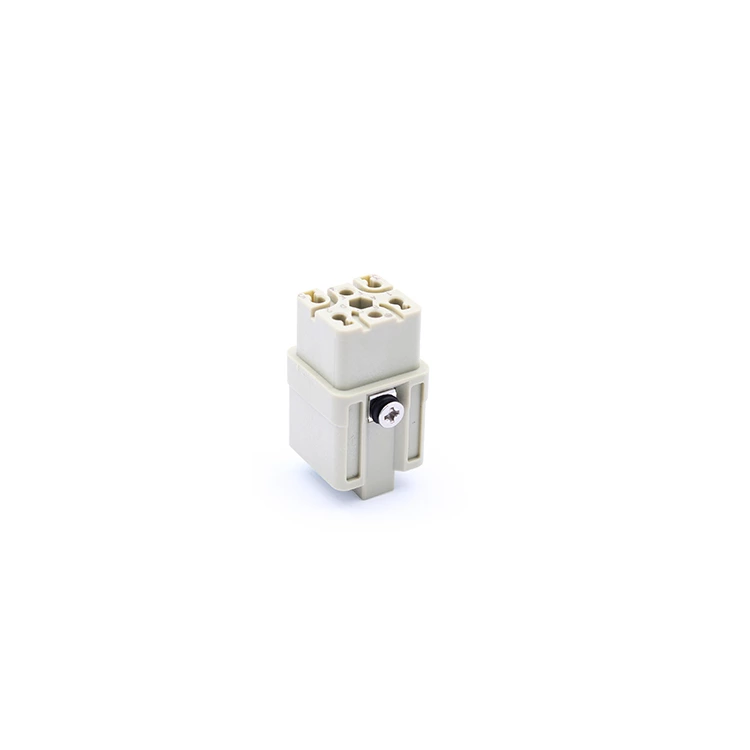

| SMICO | SO-HQ-005-MQ | SO-HQ-005-FQ |
| H | 09120052633 | 09120052733 |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type
Location
SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| 5pin 16A industrial quick lock connector heavy duty connectors HQ-005/0-MQ 09120052633 | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
