IP54 Cable entry system Flame class UL94-V0 Self-extinguishing Detachable frame KBL 16/2
- Part:
- KBL 16/2
- Product Certification:
- CE
- Order No.:
- KBL 16/2
- Packaging Details:
- CTNS
- Delivery Time:
- within 10-14days
- Payment Terms:
- T/T
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description

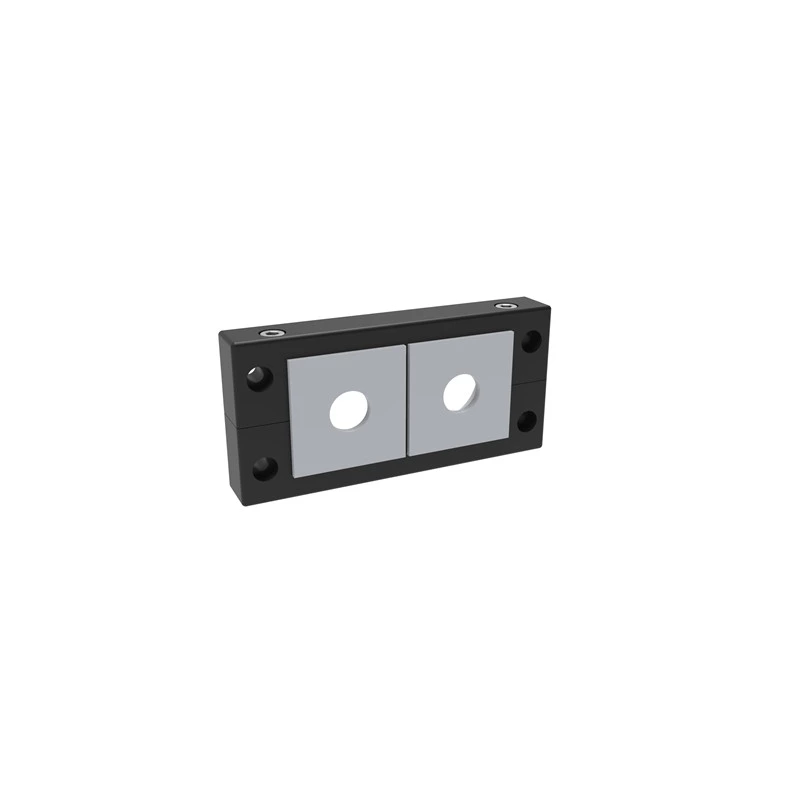

Split cable entry system for routing cables with connectors providing an IP54 / UL Type 12 rating.
Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm.
The cable entry system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.
Specification
| Type | KBL 16 detachable frame（Module purchased separately） |
| Frame model | KBL 16/2 |
| Trame part No. | 042162 |
| Material | Polyamide (PA) |
| Flame class | UL94-V0, Self-extinguishing |
| Protection degree | IP54, With gasket and correct selection of the cable inserts（Conform to DIN EN 60529:2000-09） |
| Temperature | - 40°C to + 140°C (Static) |
| Properties | Halogen-free, silicone-free |
| Number of KT modules small / large | 2×KT（ large module） |
| Cut-out dimensions（mm） | 37 × 85 |
| Height | 17 mm |
Advantage

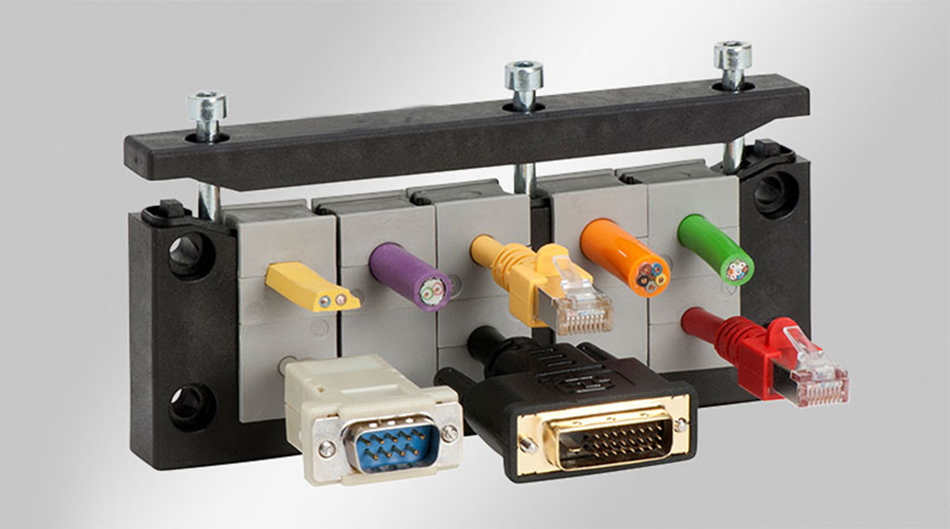

- Modular inserts freely combined on one frame, integrate RJ45, D-SUB, DVI, power cables in single cutout; reduce scattered holes on cabinet panel greatly.
- Single insert can be replaced/added on mounted frame without cutting cabinet again for later equipment upgrade.
- Individual rubber gasket clamps each cable tightly, IP54~IP65 whole-panel protection; replacing one cable won’t break sealing of other wiring.
- Eliminate gap between cabinet cutout and cables vs traditional loose hole wiring, ideal for dusty & damp industrial cabinet.
- Pre-terminated plug (RJ45/DVI/D-SUB) pass through from inner cabinet after plug crimped outside, save field wiring time significantly.
- Top compression bar locks all inserts without adhesive, quick release for maintenance & cable replacement.
- Only one rectangular cutout on cabinet instead of dozens of scattered holes, lower cabinet stamping & processing cost.
- Universal base frame, only stock frame + various inserts to match different projects, reduce inventory SKU quantity.
- UL94-V0 flame-retardant PA66 material, -40℃~+110℃ working range, oil/acid resistant for harsh industrial environment.
- Compression locking structure anti-vibration, no insert loose under mechanical vibration for machine/vehicle cabinet.
