IP65 Clamping range 20-21mm KT20 big module Matching KBL framework 041220
- Part:
- KT20
- Product Certification:
- CE
- Order No.:
- KT20
- Packaging Details:
- CTNS
- Delivery Time:
- within 10-14days
- Payment Terms:
- T/T
- Supply Ability:
- 100000 pcs per month
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description

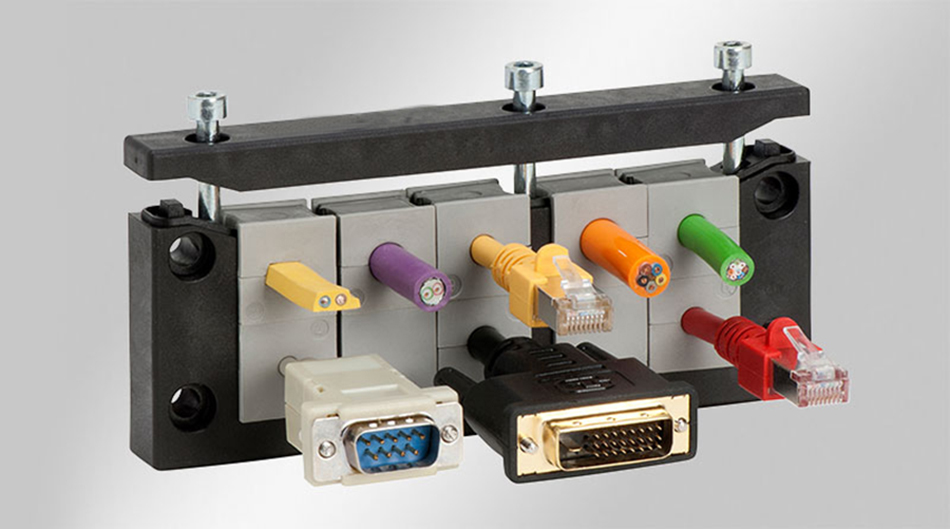

Split cable entry system for routing cables with connectors providing an IP54 / UL Type 12 rating.
Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm.
The cable entry system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.
Specification
| Type | KT 20 |
| Part No. | 041220 |
| Material | Elastomer |
| Module color | Grey |
| Flame class | UL94-V0, Self-extinguishing |
| Protection degree | IP65 |
| Temperature | -40°C to + 90°C ( Static) |
| Properties | Halogen-free, silicone-free |
| Number of cables | 1 Pcs |
| Clamping range | 20-21 mm |
| Use | KBL frame |
Advantage
- Modular inserts freely combined on one frame, integrate RJ45, D-SUB, DVI, power cables in single cutout; reduce scattered holes on cabinet panel greatly.
- Single insert can be replaced/added on mounted frame without cutting cabinet again for later equipment upgrade.
- Individual rubber gasket clamps each cable tightly, IP54~IP65 whole-panel protection; replacing one cable won’t break sealing of other wiring.
- Eliminate gap between cabinet cutout and cables vs traditional loose hole wiring, ideal for dusty & damp industrial cabinet.
- Pre-terminated plug (RJ45/DVI/D-SUB) pass through from inner cabinet after plug crimped outside, save field wiring time significantly.
- Top compression bar locks all inserts without adhesive, quick release for maintenance & cable replacement.
- Only one rectangular cutout on cabinet instead of dozens of scattered holes, lower cabinet stamping & processing cost.
- Universal base frame, only stock frame + various inserts to match different projects, reduce inventory SKU quantity.
- UL94-V0 flame-retardant PA66 material, -40℃~+110℃ working range, oil/acid resistant for harsh industrial environment.
- Compression locking structure anti-vibration, no insert loose under mechanical vibration for machine/vehicle cabinet.
Location
Packaging
FAQs
01. How many employees does your factory have?
We have over 130 employees, covering the entire production chain.
02. What kinds of insert modules are available?
Multiple modular options: Round rubber inserts for multi-core power cables, pre-cut hole inserts for RJ45/Ethernet, D-SUB/DB serial port, DVI/HDMI, fiber optic, pneumatic air hose, customized special connector cutouts. Users freely combine different inserts into one single frame.
03. What standard frame sizes are in stock?
Standard frames: 2/3/4/5/6-position widths; custom length/hole quantity available for special cabinet cutout.
