Explanation Of The Composition Of Heavy-duty Connectors
Contact No. 1
The contact is the core component of Heavy Duty Connector to complete the electrical connection function. Usually, the contact pair consists of a male contact and a female contact, and the electrical connection is completed by inserting the female contact and the male contact.
The male contact is a rigid component, which is cylindrical (round pin), square column (square pin) or flat (insert). The male contact is usually made of brass and phosphor bronze. The female contact, that is, the socket, is the key part of the contact pair. It relies on the elastic deformation of the elastic structure when the pin is inserted to generate elastic force to form a close contact with the male contact to complete the connection. There are many types of sockets, cylindrical (slotted, shrinking), tuning fork, cantilever (longitudinal slotted), folding (longitudinal slotted, 9-shaped), box type (square socket), hyperbolic wire spring socket.

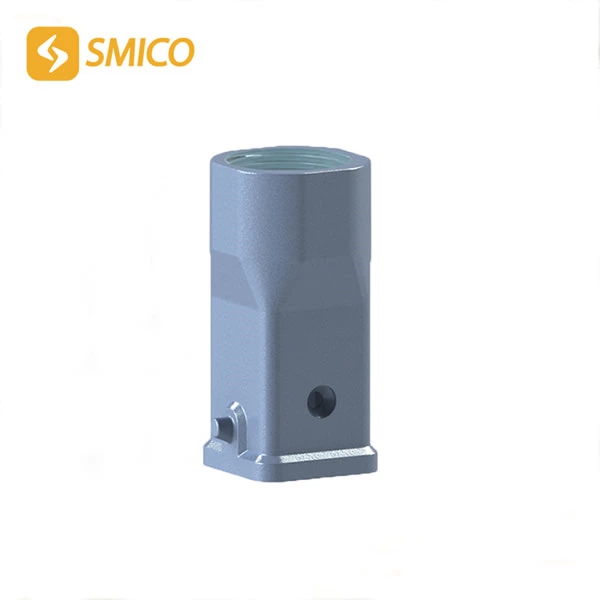

Shell No. 2
The shell is also called the shell, which is the outer cover of HSB Connector Insert. It provides mechanical protection for the built-in insulating mounting plate and pins, and provides alignment of the plug and socket plugs, thereby fixing the H24B Connector Hood & Housing to the equipment.
No. 3 Insulator
The insulator is usually called the base or plug-in of the automotive connector. Its function is to arrange the contacts in the required position and spacing to ensure the insulation performance between the contacts and between the contacts and the housing. Good insulation resistance, voltage resistance and processing performance are the basic requirements for selecting insulating materials processed into insulators.

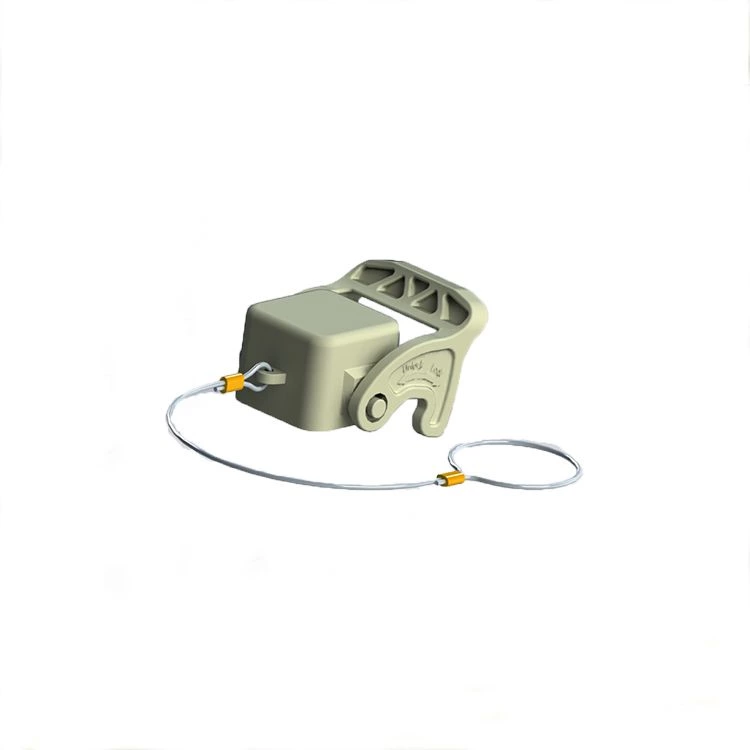

No. 4 Accessories
Accessories are divided into structural accessories and installation accessories. Accessories such as circlips, locating keys, locating pins, guide pins, coupling rings, cable clamps, sealing rings, and sealing pads. Installation accessories such as screws, nuts, screws, spring rings, etc. Most accessories have standard parts and universal parts.
