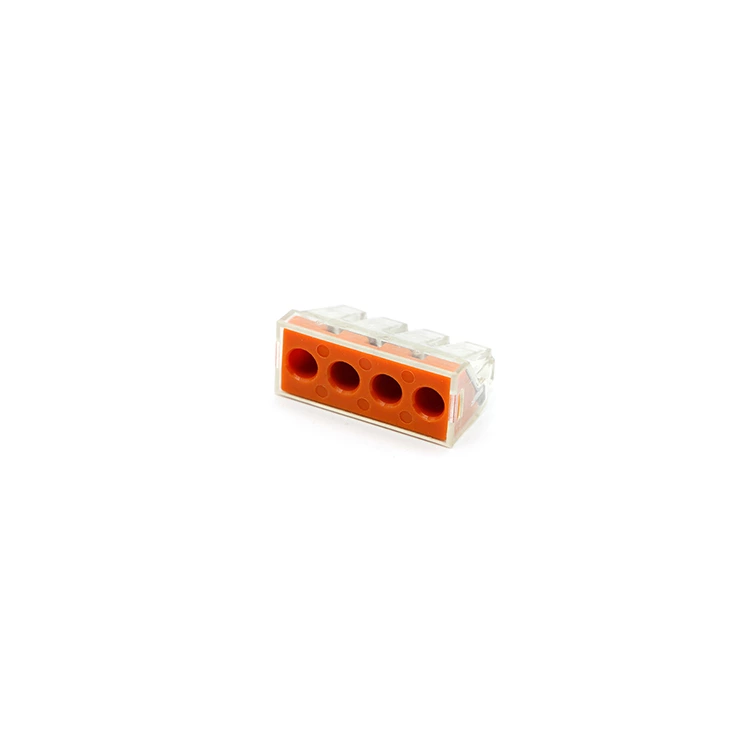

773 series wire terminal connector 104D quick connector 4pin push wire connector PCT-102
- Part:
- PCT-102
- Number of contacts:
- PCT-102
- Rated current:
- 24A
- Rated voltage conductor:
- 450V
- Order No.:
- PCT-102
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description
Specification
| Parameter | Specification |
|---|---|
| Rated voltage conductor | 450V |
| Rated current | 24A |
| Applicable Wire Size | 0.5~2.5mm², compatible with solid & stranded copper wire (no ferrule needed for stranded wire) |
| Flammability Rating | UL94-V0 flame retardant PC housing |
| Operating Temperature | -40℃ ~ +105℃ |
| Ingress Protection | IP20 (indoor wiring only) |
| Internal Structure | All terminals internally connected, multi-in & multi-out wire splitting |

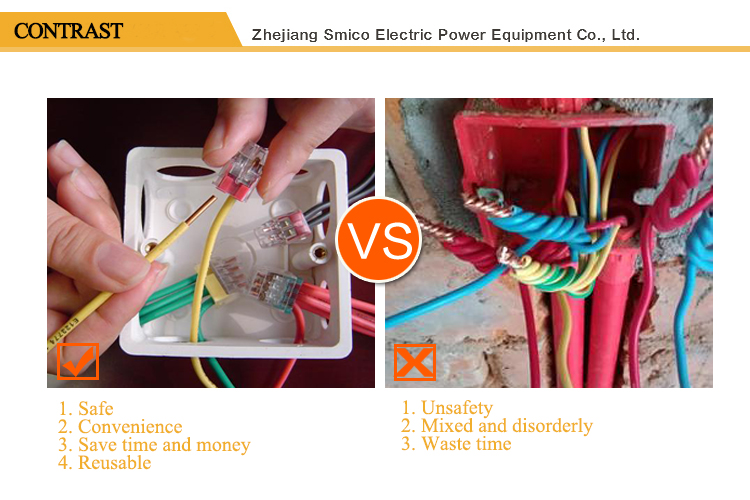

Advantage
Fast, easy, no-twist necessary, reduces installation time and twist fatigue
Color-coded for easy indentification of different sizes
Compact size; takes up less space
No bare wires to cause shorts
Each wire is individually clamped; provides more secure gripping on conductor
Location
Packaging
FAQs
01. How many employees does your factory have?
We have over 130 employees, covering the entire production chain.
02. What wire gauge can these terminals accept?
Standard model fits 0.5~2.5mm² solid & stranded copper wire, rated at 32A, 450V AC. Hard solid wire plugs directly; fine-stranded wire can be inserted without pre-crimped ferrule.
03. All holes inside one connector are interconnected?
Yes, internal conductive piece connects all terminals. Support 1-in multi-out wire splitting for lamp/socket parallel wiring.
