UKK 125A Din Rail Screw Distribution Terminal Block Power

Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month

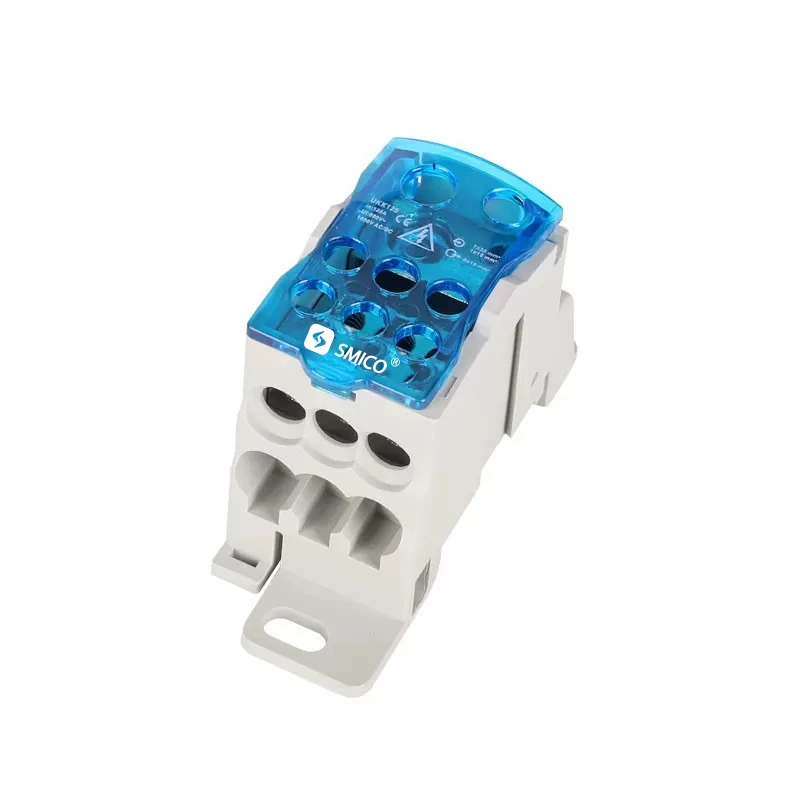

UKK 125A Din Rail Screw Distribution Terminal Block Power

UKK 125A Din Rail Screw Distribution Terminal Block Power plays an important part in power distribution industrial. Products with excellent electrical contact, visual confirmation and inspection of wire connection easily.

  •  Compact, hinged removable cover

  •  IP20, finger-safe body.

  •  Clip-on DIN Rail or fixed by screw on board directly.

  • Tin-plated brass connectors.

  • Sliding DIN rail latch for easy mounting

  • Small footprint savespanel space

  • CE, RoHs Recognized

Technical Parameters

Model No. UKK 125A
Color Blue and Gray, other color can be customized

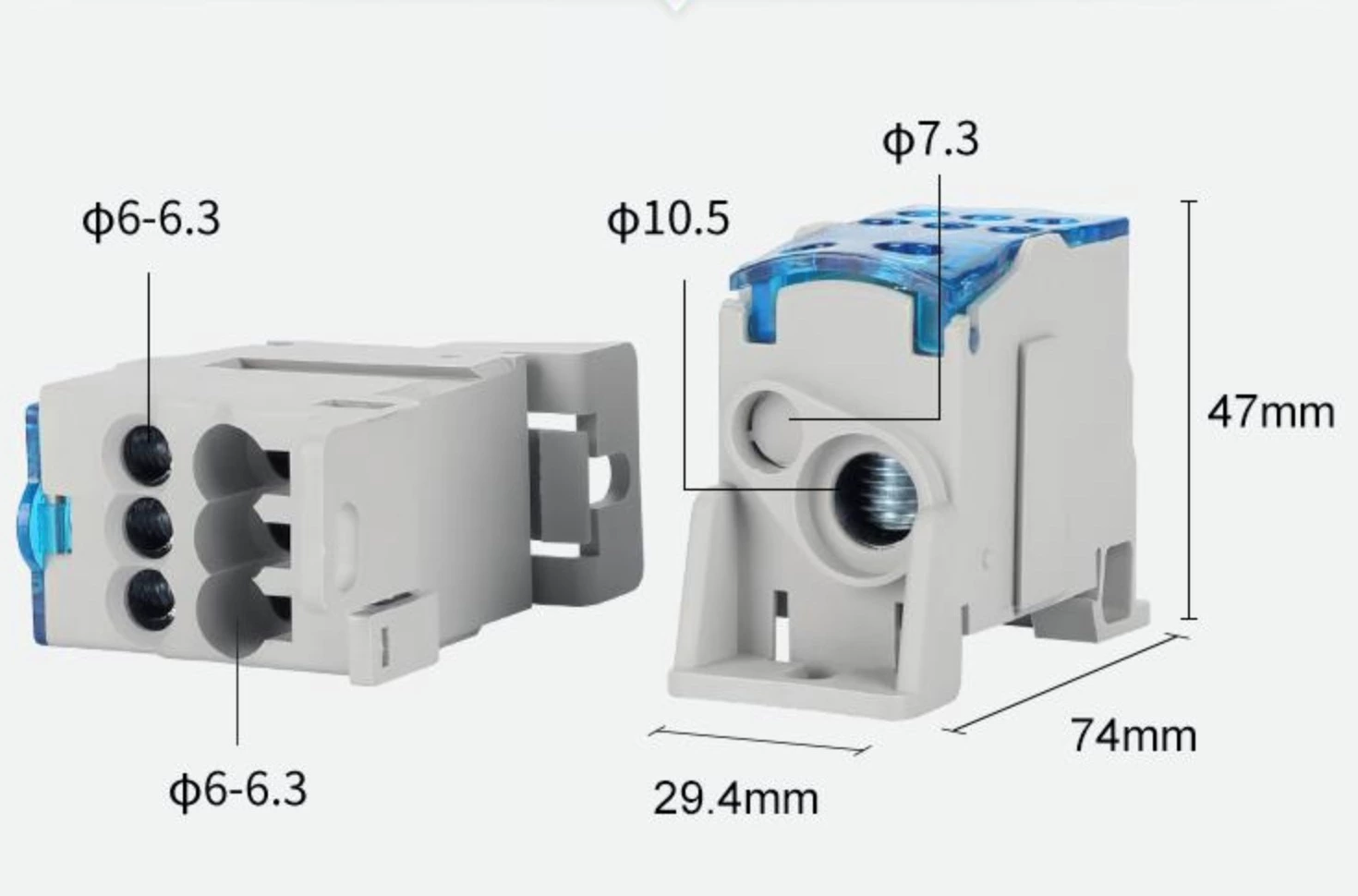

Length/Height/Wide (mm) 29.4/47/74
Connection method Screw connection by Allen screw driver
Material PA66, Nicel-plated brass conductor
Rated Voltage/Current 690V/125A
Entry Specification 1X16 /1X35mm²
Output Specification 6X16 mm²
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO SMICO,  LOGO can be customized
Certification CE/RoHS/CQC/ISO 9001

Material of din rail terminal block

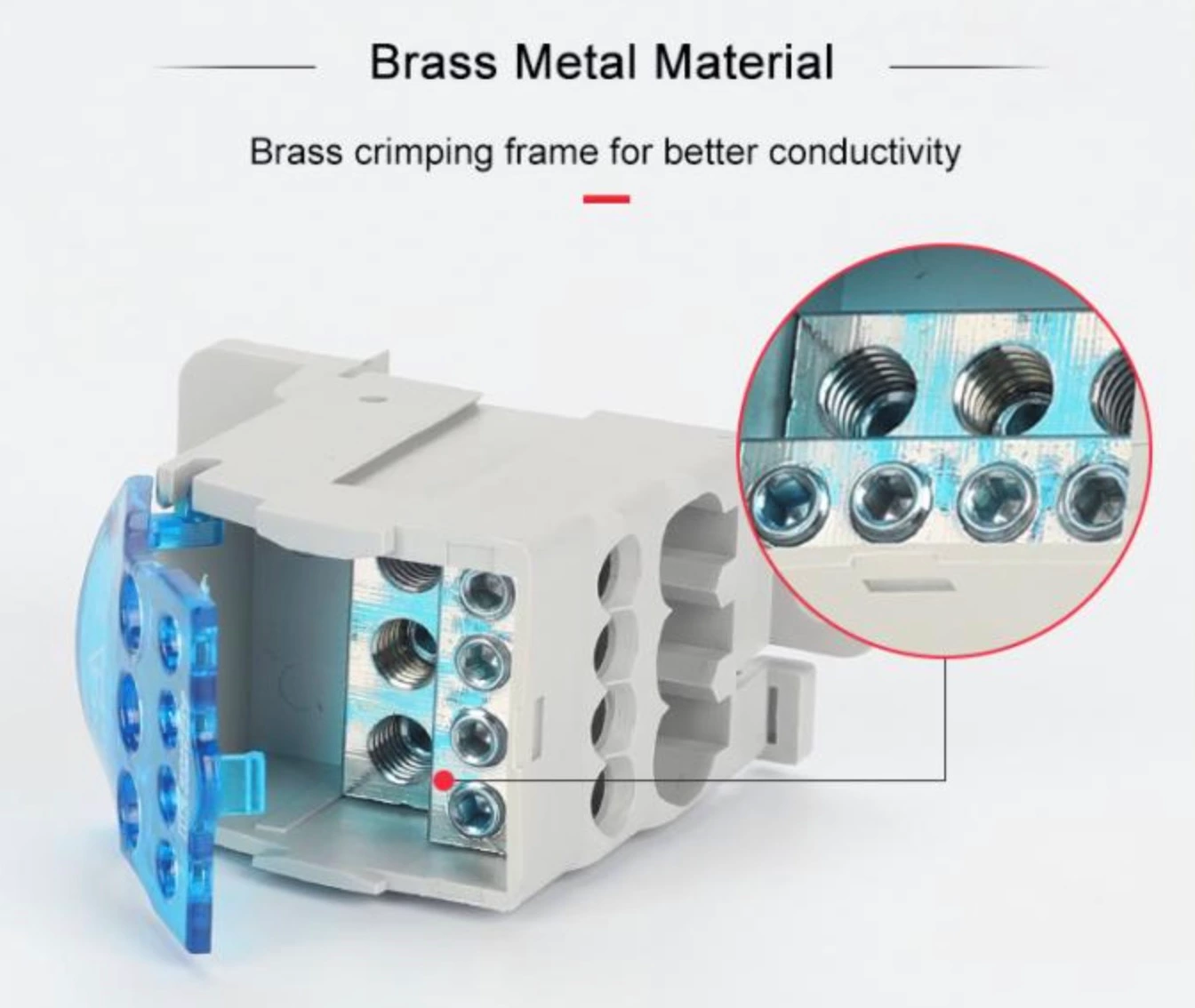

Terminal material: the terminal is made of excellent brass tinned,which is firm and durable,with strong corrosion resistance and good conductivity.

Shell material: the shell is made of Flame retardant nylon material,which is high strength and strong insulation performance.

Screw material: zinc steel,metric thread screw.

Features of Terminal Block Distribution Box

●Made of flame-retardant shell, it is high temperature resistant and corrosion resistant.

●The installation is simple and safety.The terminal block distribution box is easy and quick to install on the din rail.

●The transparent cover can easily see if the cable is conneted reliably.

●Cable fixing screw diameters>95% fill ratio: excellent electrical.

●Clip-on DIN rail or mount to panel with screws: easy fixing.keeping only one input, the blocks can be connected in parallel using a jumper wire.

●DIN rail or panel mount

●Wire ready: captive termination screws shipped backed out to save time on conductor installations

Installation diagram

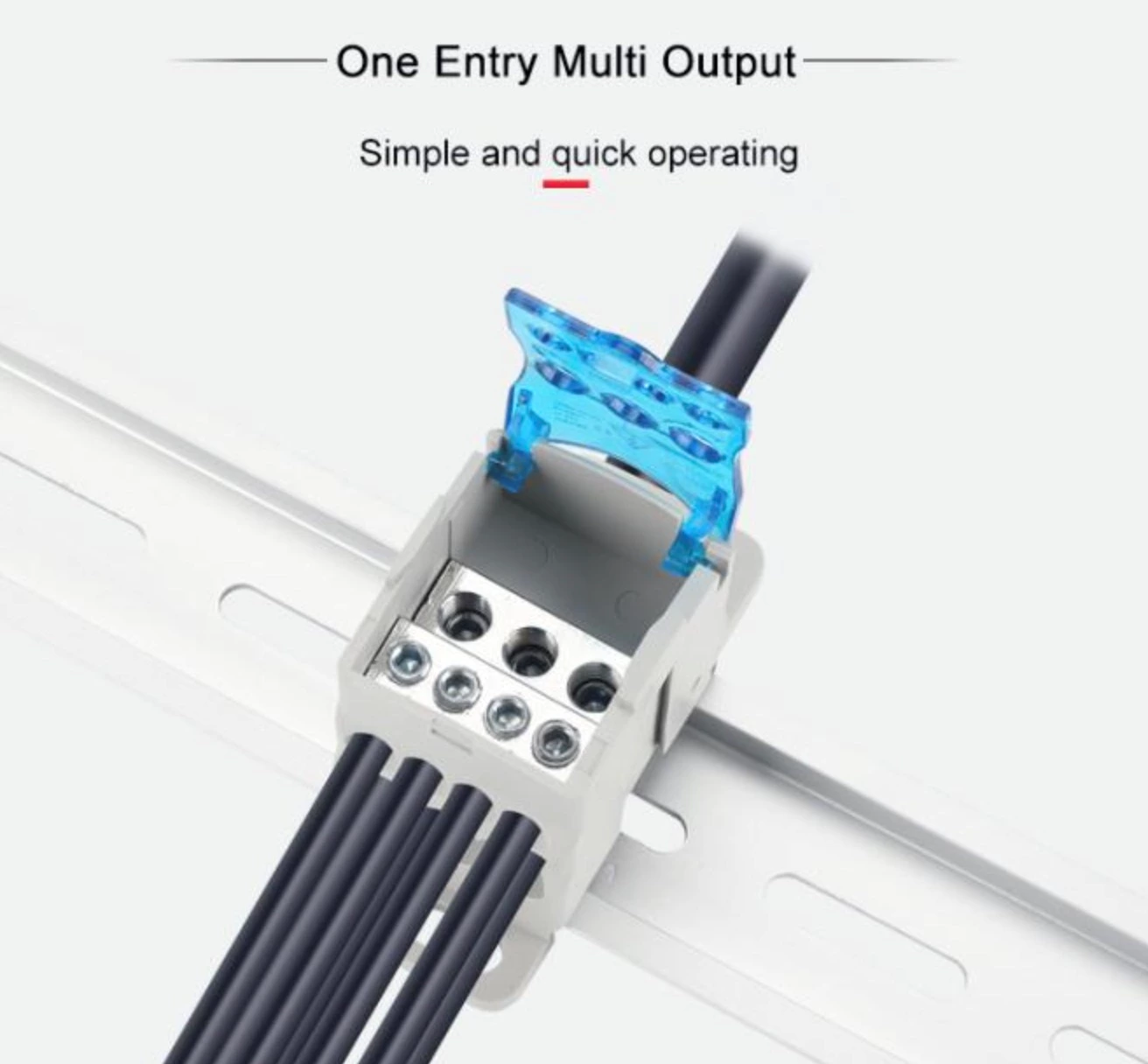

The UKK series  terminal block distribution box is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.It is install with 35mm wide din rail or chassis mounting with screw.

UKK 125A Din Rail Screw Distribution Terminal Block Power

UKK 125A Din Rail Screw Distribution Terminal Block Power

UKK 125A Din Rail Screw Distribution Terminal Block Power
