UKK Din Rail Power Distribution Terminal Block Box UKK 500A

A power distribution box is commonly employed in high-current power distribution applications. It provides a convenient, cost-effective, and safer method for distributing power from a single input source to multiple outputs. Equipped with a removable main cover, it allows for easy access during installation and maintenance.

These distribution boxes are designed to ensure high conductivity and excellent electrical contacts, thereby minimizing energy loss and maximizing efficiency in power distribution. They offer a reliable and secure solution for managing power distribution in various settings, providing enhanced safety and operational reliability.

Cable fixing screw diameters＞95% fill ratio: excellent electrical.

Clip-on DIN rail or mount to panel with screws: easy fixing.

High safety.

Simple and quick operating.

Professional power design.

Safe and stable performance.

Made from safe and high quality material.

Reasonable Design save the installation space.

Brass crimping frame for better conductivity.

It is preferably used in electrical machine control systems.

keeping only one input, the blocks can be connected in parallel using a jumper wire.

01. How many employees does your factory have?

We have over 130 employees, covering the entire production chain.

02. Is DIN rail mounting the only option? Can it be screw-mounted directly to a baseplate?

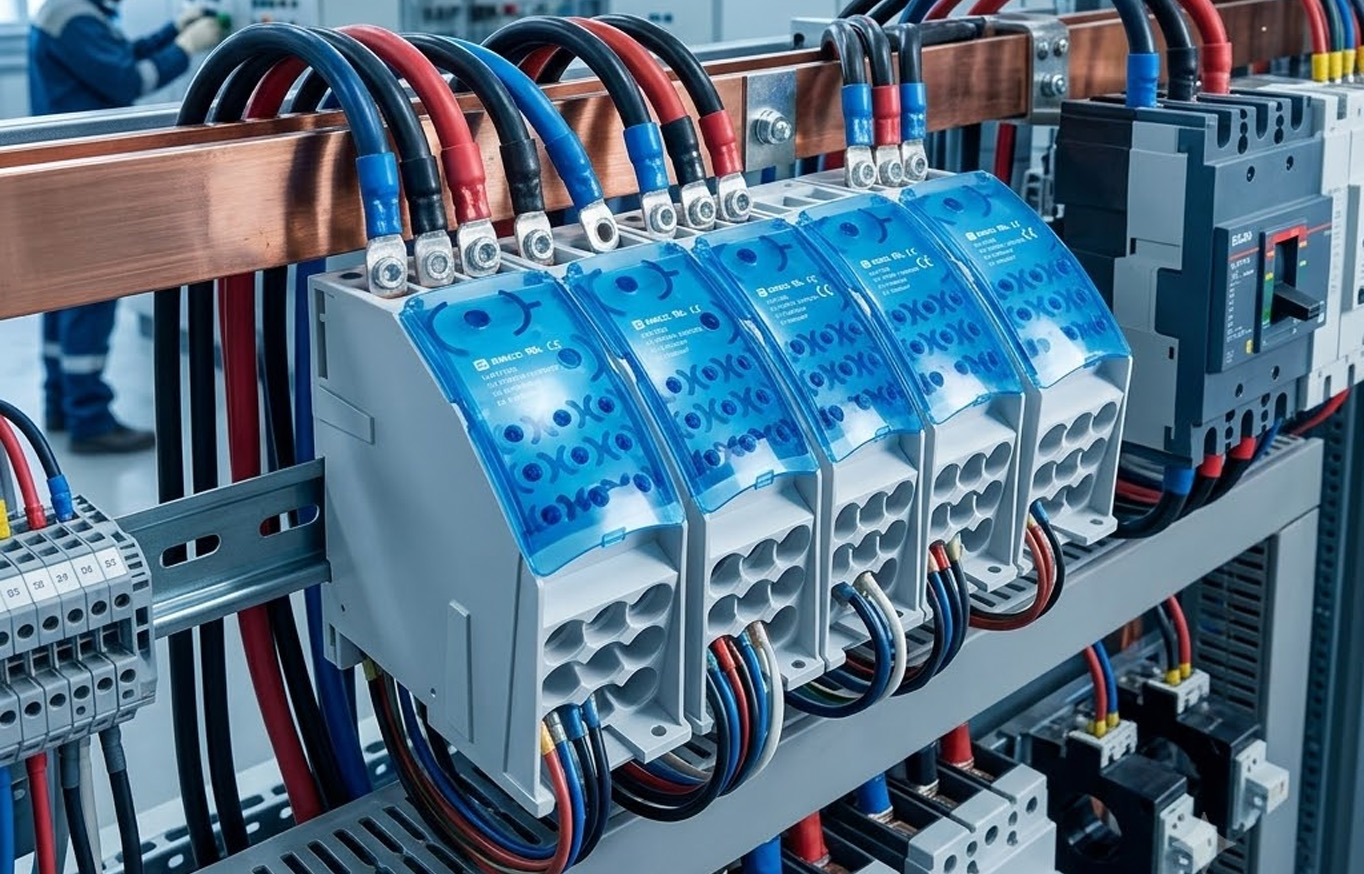

The product comes standard with a 35mm DIN rail clip for mounting (compatible with standard distribution box rails). The product base features pre-drilled screw holes; by removing the mounting clip, the unit can be directly secured via screws to the cabinet's mounting plate. Both installation methods are fully supported.

03. Can the transparent blue lid be removed? What is its function?

The top cover features a hinged, detachable design: ① Once powered on, the transparent cover allows for a direct visual inspection to verify that the cable's copper cores are securely clamped and to check for any signs of overheating or oxidation; ② Rated IP20 for protection, it prevents accidental contact by fingers with live terminals while offering dust and short-circuit protection; furthermore, during maintenance, screws can be tightened without the need to completely remove the cover.

04. How do I place an order?

Please send your purchase order to us via email, and we will send you a quotation and a pro forma invoice.
