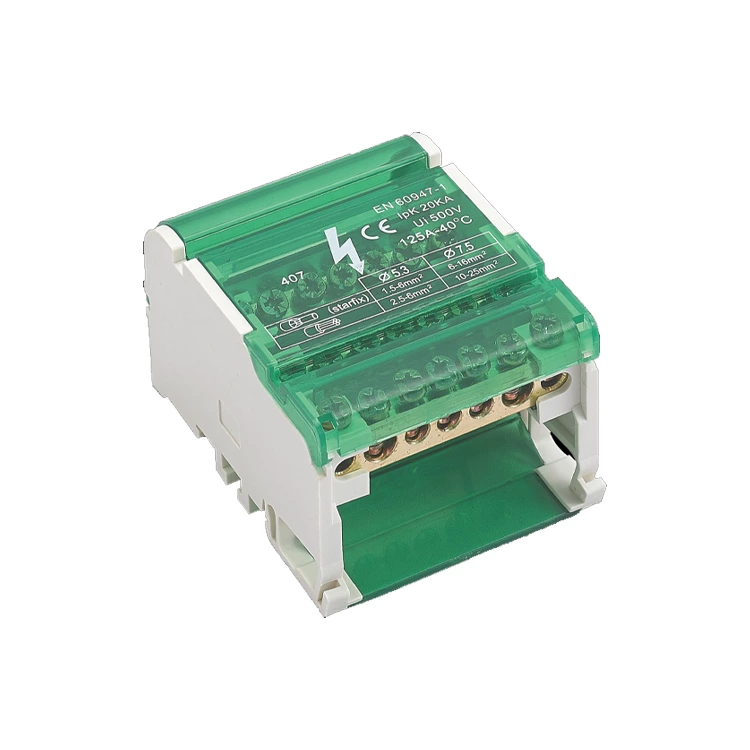

UKK407/125 125A 500V 4 way din rail terminal Copper Bar PA power distributors blocks Cable Box

UK407/125 125A 500V 4 way din rail terminal Copper Bar PA power distributors blocks Cable Box Power distribution blocks provide a safe,convenient cable splicing method providing a fixed junction tap-o

Part:
UK407/125
Rated current:
125A
Rated voltage conductor:
500V
Product Certification:
CE,UL ,ISO
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month

UKK407/125 125A 500V  4 way din rail terminal Copper Bar PA power distributors blocks Cable Box

Power distribution blocks provide a safe,convenient cable splicing method  providing a fixed junction tap-off point or splitting primary power into secondary circuits. UK series offers U Type 35MM din Rail installation and an optional hinged safety cover. Optional distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools or other conductive materials. They also prevent accidental contact with live connectors.

With the distribution module eliminates the need to wire each device in the control circuit back to the power source by using one large wire on the input side, and several smaller wires on the output side to your devices downstream. This will give your electrical panel a clean and professional apperance.

  •  Can be easily mounted on standard DIN 35mm rail or direct mounted to the wall of your enclosure

  •  IP20 rated with hinged and removable cover.

  •  High conductivity with excellent electrical contacts.

  • Faster to wire than conventional busbar systems, for a cleaner and more professional installation



Model No. SO407/125
Color Blue and Gray
Length/Height/Wide (mm) 66/50/86
Connection method Screw connection
Material Flame resistant Nylon PA66,  brass conductor
Rated Voltage/Current 500V/125A
Input Wiring 1X8.5mm
Output wiring 1x7.5mm /5X5.3mm
Mounting Type DIN Rail 35
Standard IEC 60947-7-1
LOGO SMICO,  LOGO can be customized
Certification CE/RoHS/UL/ISO 9001

Entry and output, Simple and quick operating, Separate incoming and outgoing, distinguish internal cable clearly

UKK407/125 125A 500V  4 way din rail terminal Copper Bar PA power distributors blocks Cable Box

There are fence between the terminals to prevent contact and short circuit

UKK407/125 125A 500V  4 way din rail terminal Copper Bar PA power distributors blocks Cable Box

It can be install on standard 35mm din rail directly

UKK407/125 125A 500V  4 way din rail terminal Copper Bar PA power distributors blocks Cable Box

Transparent dust-proof cover can view the internal wiring directly without opening the cover

UKK407/125 125A 500V  4 way din rail terminal Copper Bar PA power distributors blocks Cable Box
