10pins Heavy Duty Power and Signal Connectors
- Part:
- SO-HA-010-F
- Number of contacts:
- 10
- Rated current:
- 16A
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09200102812
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
10pins Heavy Duty Power and Signal Connectors catalogue
Heavy Duty Power and Signal Connectors for power, signals and data in industrial environments and according demand to match .

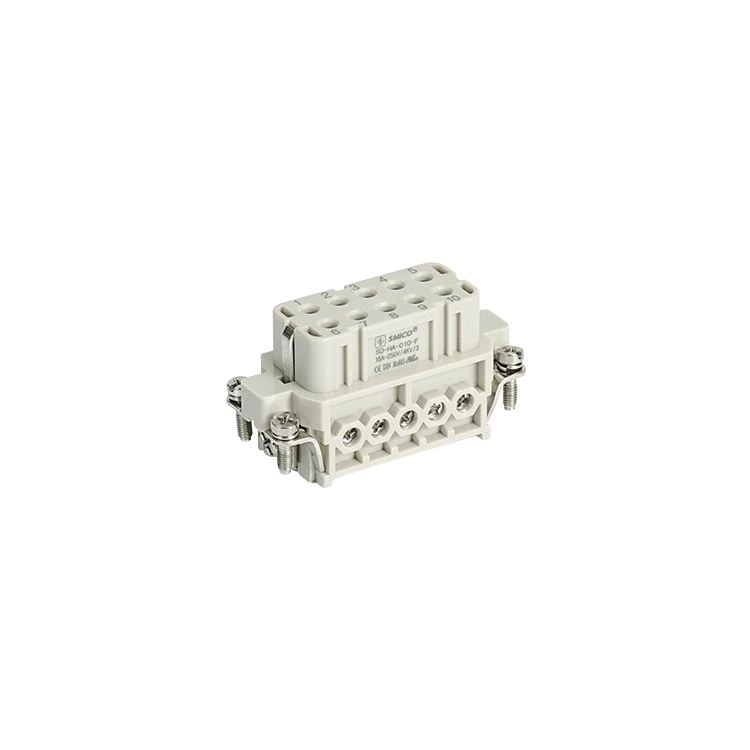

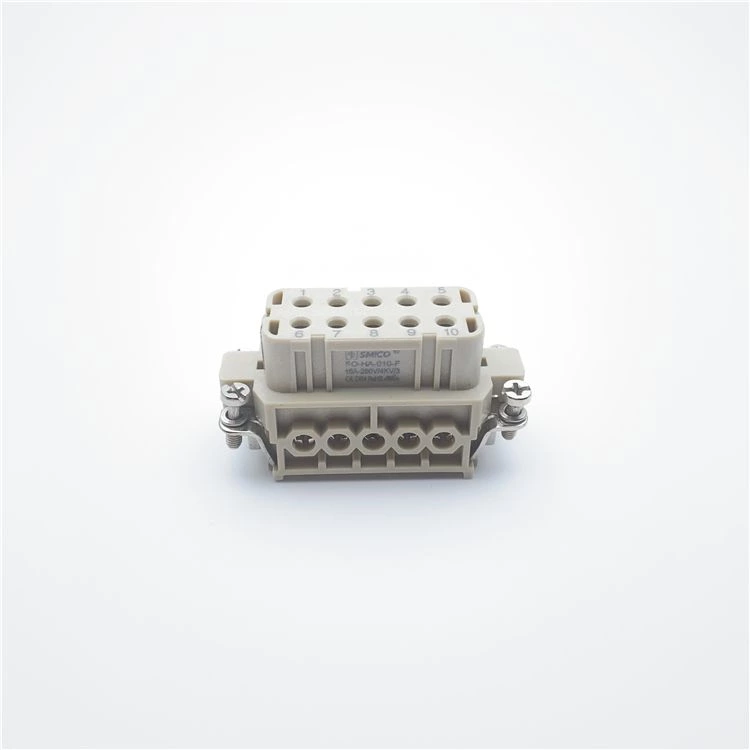

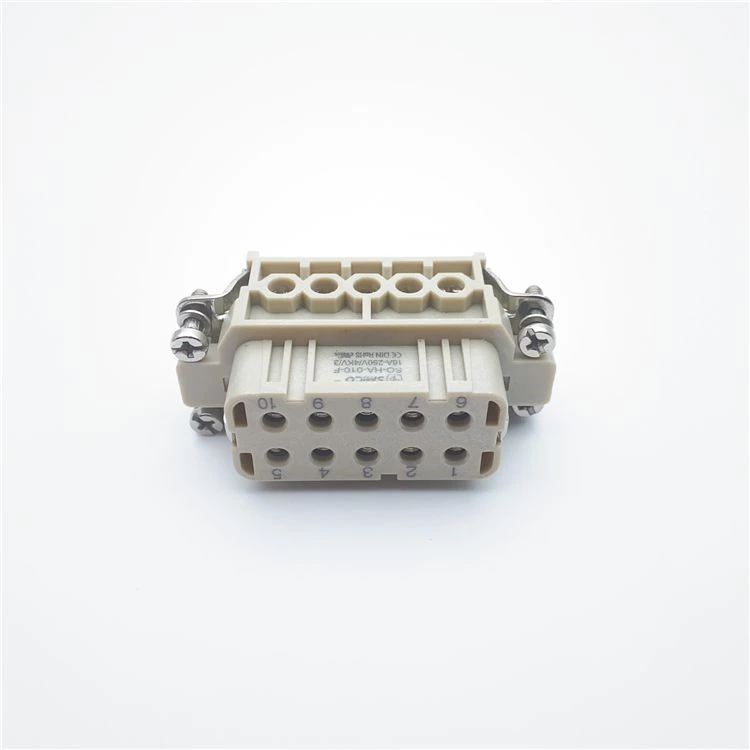

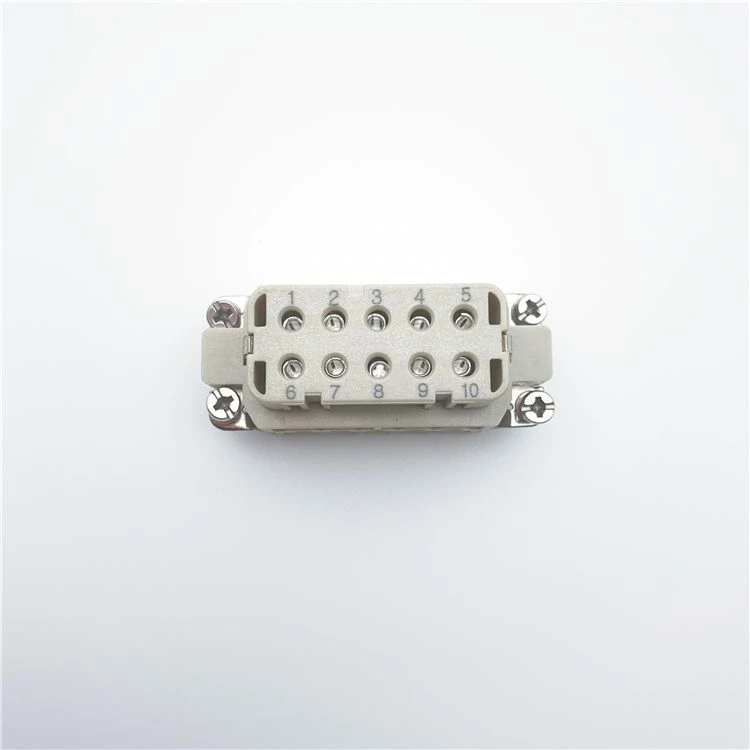

10Poles + PE, 16 A Female Screw Terminal :
| Inserts | Suitable Shell:10AHood/Housing |
| Number of contacts | 10 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H10A .
| Suppier | Plug insert | Socket insert |
| SMICO |
SO-HA-010-M |
SO-HA-010-F |
| H | 09200102612 | 09200102812 |
| ILME | CDAM 10 | CDAF 10 |
| TE | ||
| LAPP EPIC | 10440100 | 10441100 |
| PHOENIX | 1585294 | 1585304 |
| MOLEX | ||
| WEIDMULLER | HDC HA 10 MS | HDC HA 10 FS |
| WIELAND | ||
| AMPHENOL |
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type
SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Heavy-duty connectors are specially designed and applied to meet the requirements of harsh environmental conditions.
The main application areas are industrial automation, equipment manufacturing and industrial system buildings, as well as information and control technology.
- Its shell protects the instrument from rain, ice and dust. Compared with the traditional connection method, the use can save 20-30% of the installation cost of the machining center;
- it increases the production efficiency and reduces the error rate of the wiring.
- For machinery and equipment manufacturers, it can save installation time, secure and reliable connections, and reduce overall production costs. For terminal users, they can freely install and operate equipment without any professional guidance. It also becomes easy to maintain. This not only increases the effectiveness and practicability of the mechanical equipment, but also reduces the parking time and the equipment maintenance time. The efficiency has been effectively improved. Meet the needs of customers.

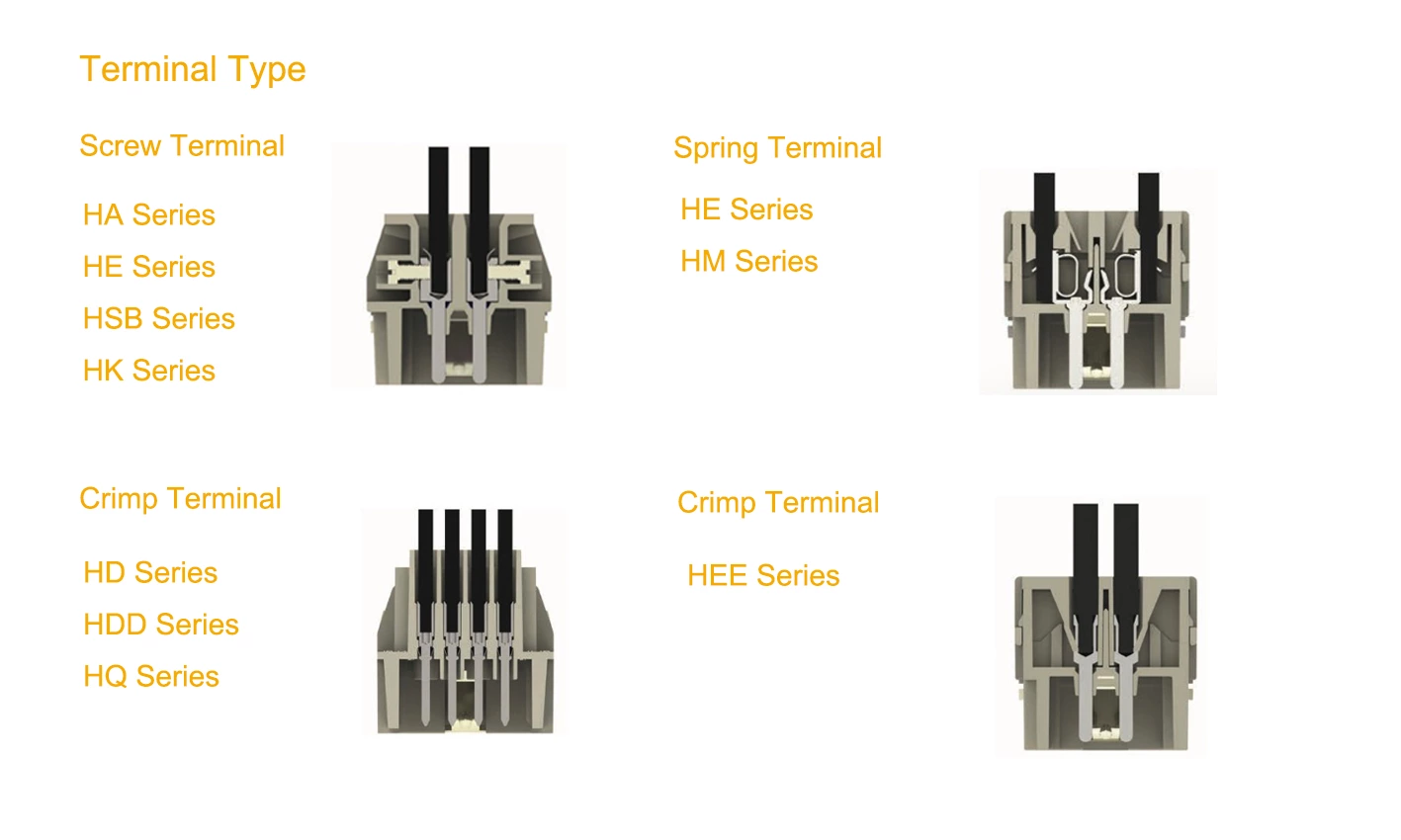

The Heavy duty connector Terminal connector way :
