Heavy duty electrical wire connectors 10A 4poles Germany
Heavy duty electrical wire connectors 10A 4poles Germany Heavy-duty connectors (HDCs) --SMICO manufacturer ,develop and designer for the connectors , from single pole to 216 poles ,5A to 200A SMICO He
- Part:
- SO-HA-004-F
- Number of contacts:
- 4
- Rated current:
- 10A
- Rated voltage conductor:
- 230/400V
- Order No.:
- 09200042711
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Heavy duty electrical wire connectors 10A 4poles Germany
Heavy-duty connectors (HDCs) --SMICO manufacturer ,develop and designer for the connectors , from single pole to 216 poles ,5A to 200A
SMICO Heavy duty connectors Features
- Interconnections for power, signal and data
- Good costs
- Voltage up to 1000V , Amp from 5A to 200A
- UL, CE ,DIN, ROHS approvals
- Vibration proof
- High pole sizes
- IP65 to IP69K
- Corrosion resistance
- Robust

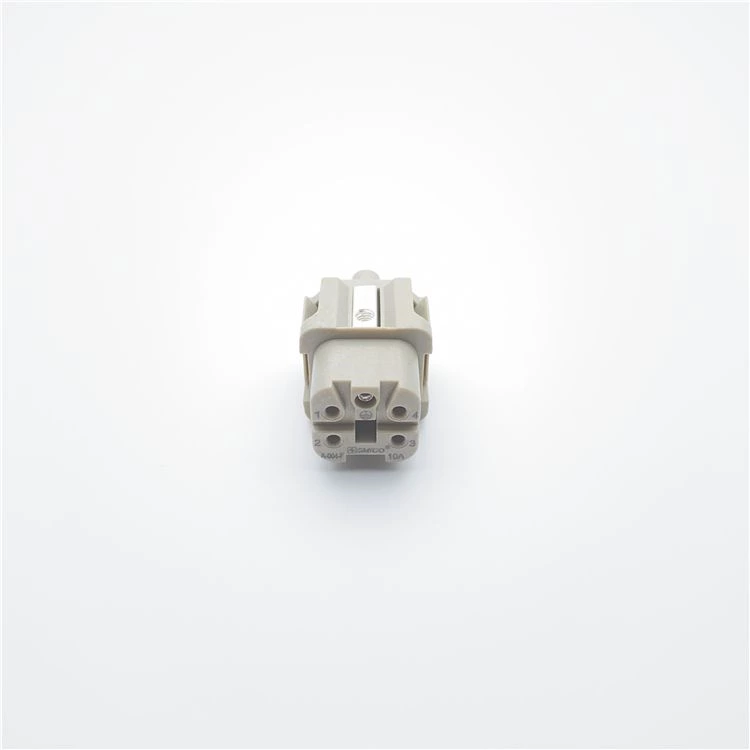

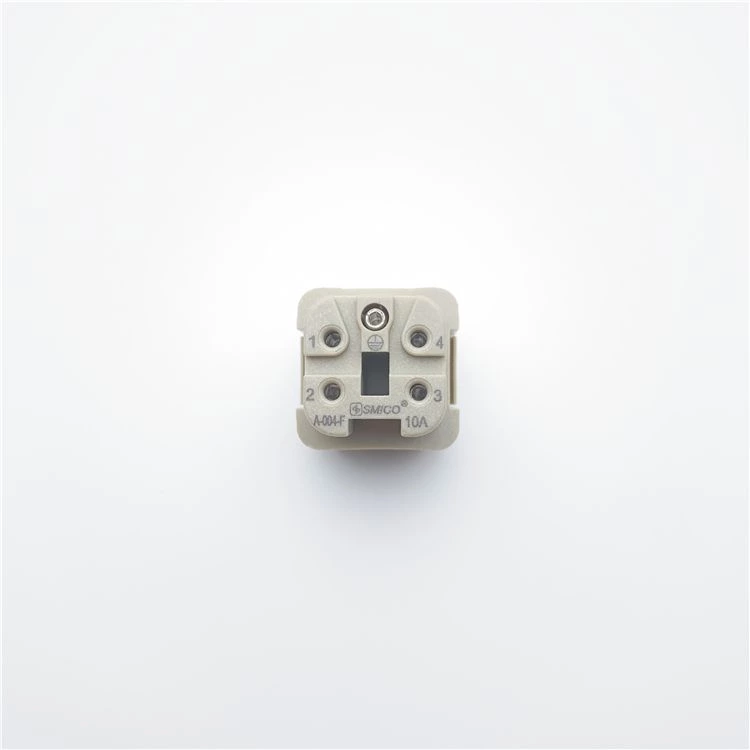

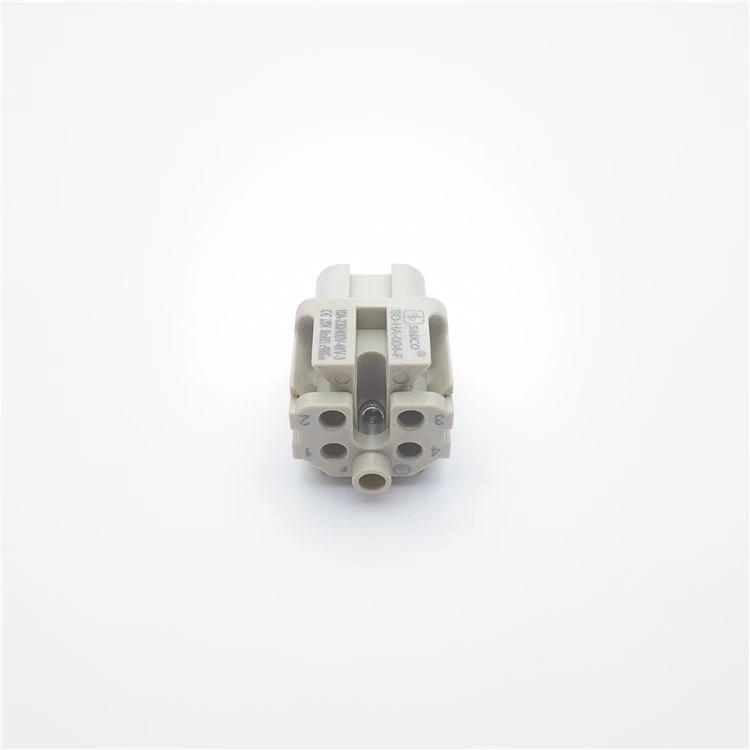

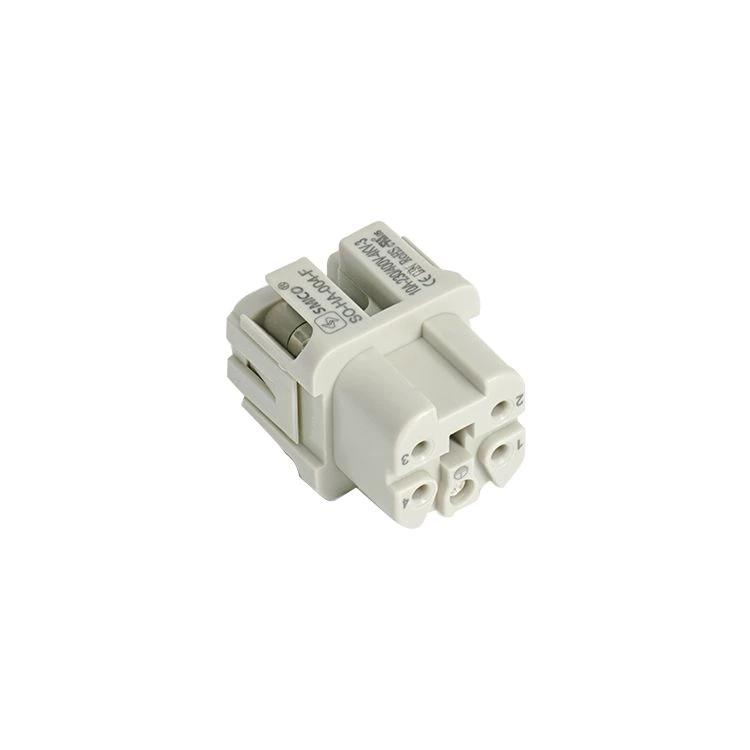

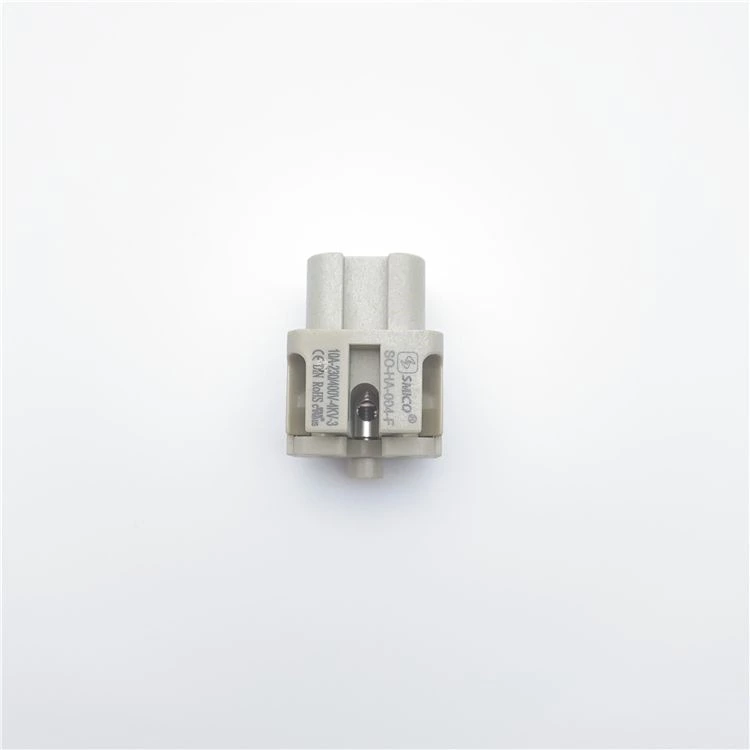

4 Poles + PE, 10 A Feale Screw Terminal :
| Inserts | Suitable Shell:3AHood/Housing |
| Number of contacts | 4 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 230/400V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 10A 250V 4kV 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H3A .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HA-004-M | SO-HA-004-F |
| H | 09200042611 | 09200042711 |
| ILME | CKM04 | CKF04 |
| TE | ||
| LAPP EPIC | 104310000 | 104320000 |
| PHOENIX | 1585278 | 1585281 |
| MOLEX | ||
| WEIDMULLER | HDC HA 4 MS | HDC HA 4 FS |
| WIELAND | 73.310.0453.0 | 73.300.0453.0 |
| AMPHENOL |
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type
SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Heavy-duty connector has different connect ways ,connect setp following :
- The first step is to connect the heavy-duty connector
Loosen the screw with a screwdriver, put the wire into the side hole of the insert, and then tighten the screw
- Step 2 Install the upper shell of the heavy-duty connector
Use a screwdriver to unscrew the fixing screw of the insert body, put the insert body into the upper shell, and then tighten the fixing screw
- The third step is to install the lower shell of the heavy-duty connector
Use the same method to fix the lower shell, and insert the upper shell and the lower shell with the inserted body into each other.
