25 Pole Heavy Duty Multi Pin Connector for EUROPA 67

Part:
SO-HD-025-MC
Number of contacts:
25
Rated current:
10A
Rated voltage conductor:
250V
Product Certification:
UL CUL CE ROHS DMT
Order No.:
09210253001
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF

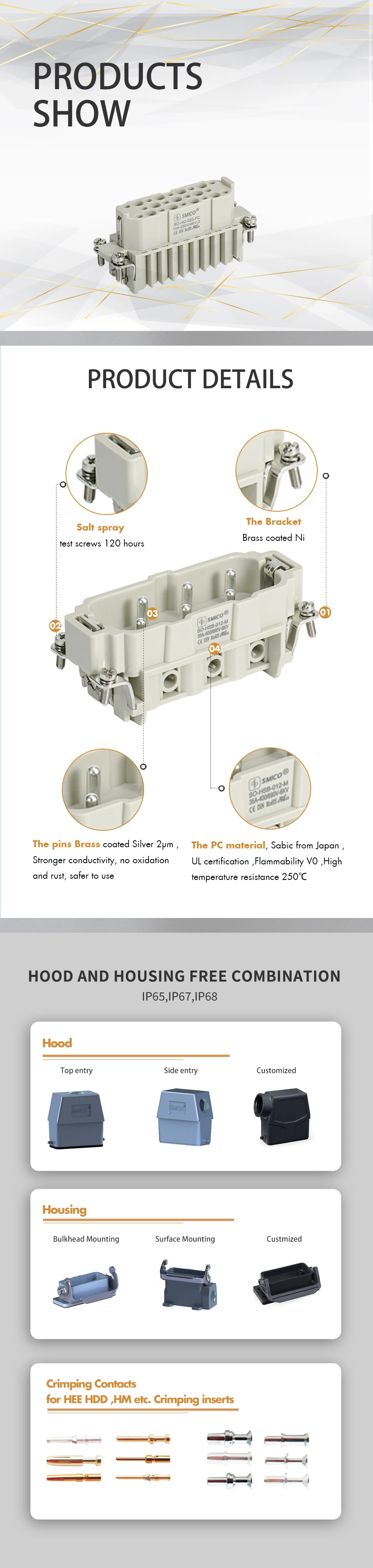

25 Pole Heavy Duty Multi Pin Connector for EUROPA 67

25 Pole Heavy Duty Multi Pin Connector for EUROPA 67

Heavy duty connector and Plugs for EUROMAP 67 , 50pins for H32A hood and housing .Used for Injection Moulding Machine ,Handling Device and Robot

25Poles + PE, 10A Male Crimping terminal :

Inserts Suitable Shell:16AHood/Housing
Number of contacts 25
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage conductor 250V
---Rated impulse voltage 4kV
---Pollution degree 3
---Pollution degree 2 also 10A 230/400V 4kV 2
---Rated voltage acc. to UL/CSA 600V
---Rated voltage for wrap terminal acc. to CSA 2A 30V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤3mΩ
Crimp terminal
---Wrie gauge 0.14-2.5mm²
---AWG 26-14

According to EUROMAP 67 connector, SMICO heavy duty connector can match the following interchangeable.

The hood and housing for H32A  .

Suppier Plug insert Socket insert
SMICO

SO-HD-025-MC (1-25)

SO-HD-050-MC(26-50)

SO-HD-025-FC(1-25)

SO-HD-025-FC(26-50)

H

09210253001

09210253011

09210253101

09210253111

ILME CDM25 CDF25
TE T2020252101-000
T2020252101-Z00
T2020252201-000
T2020252201-Z00
LAPP EPIC 11283300
11283400
11282300
11283500
PHOENIX 1584392
1411478
1584402
1411481
MOLEX 7125.4112.0
7125.4012.3
7125.4112.3
7125.4012.0
WEIDMULLER 1650810000
1023040000
1650820000
1023050000
WIELAND 73.700.2553.0
73.700.2553.3
73.710.2553.0
73.710.2553.3
AMPHENOL C146 10A025 500 2 C146 10A025 505 2 C146 10B025 500 2  C146 10B025 505 2
