Industrial wire connectors HDD-108 pins for plug socket 09161083101 HDD-108-FC
- Part:
- SO-HDD-108-FC
- Number of contacts:
- 108 PINS
- Rated current:
- 10A
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09161083101
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description
Specification

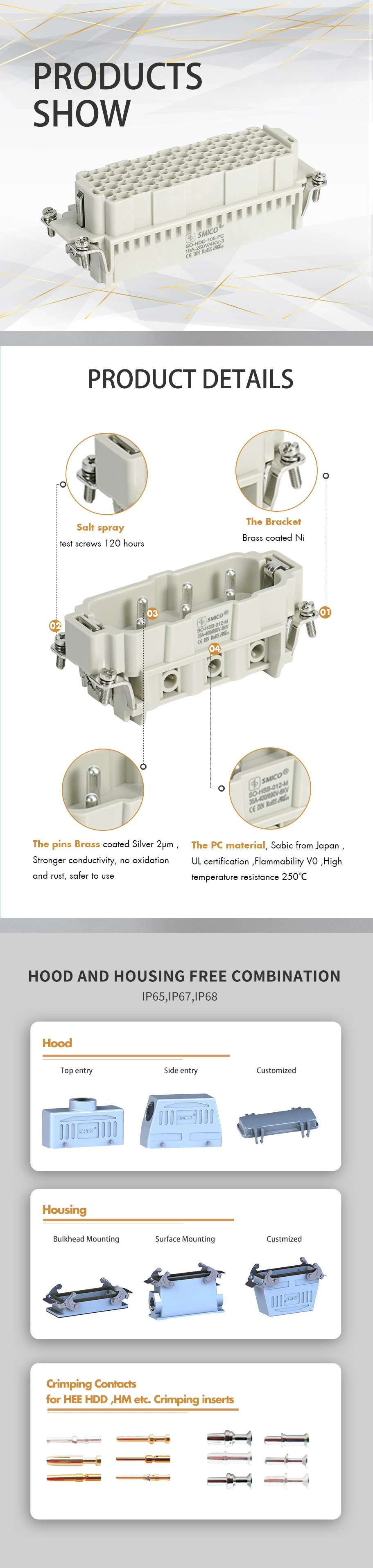

Industrial wire connectors HDD-108 pins for plug socket
Industrial wire connectors HDD-108 pins for plug socket , easy connect the wire and quickly , Flexible application and can move it .
| Inserts | Suitable Shell:24BHood/Housing |
| Number of contacts | 108 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| ---Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H24B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HDD-108-MC | SO-HDD-108-FC |
| H | 09161083001 | 09161083101 |
| ILME | CDDM 108 | CDDF 108 |
| TE | ||
| LAPP EPIC | 11.2853 | 11.2863 |
| PHOENIX | 1584114 | 1584130 |
| MOLEX | ||
| WEIDMULLER | HDC HDD 108 MC | HDC HDD 108 FC |
| WIELAND | 73.810.0853.0 | 73.800.0853.0 |
| AMPHENOL |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type
Location
SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| Industrial wire connectors HDD-108 pins for plug socket 09161083101 HDD-108-FC | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
