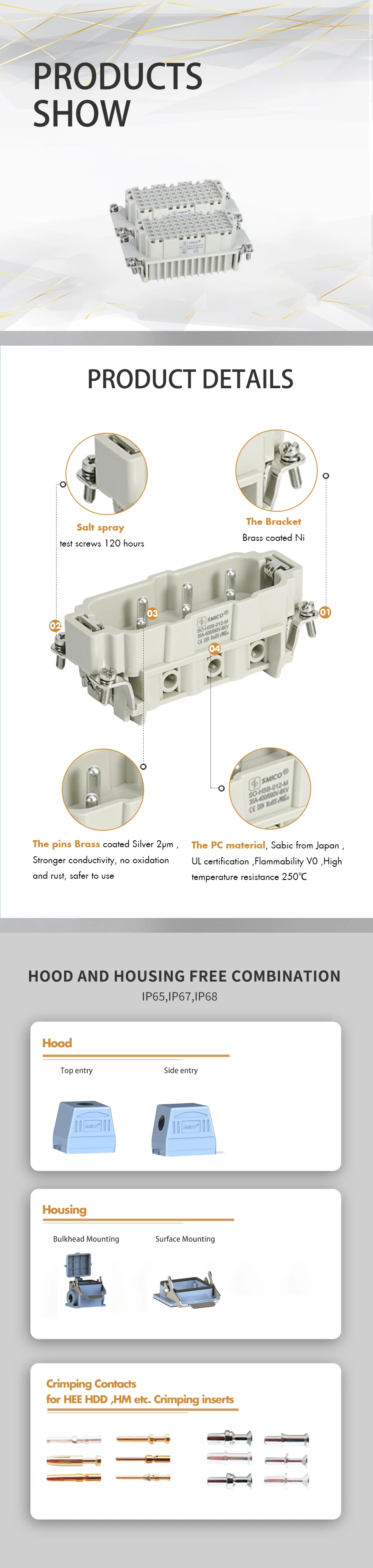

Rectangular heavy duty connector HDD crimping series HDD-144-FC
- Part:
- SO-HDD-144-FC
- Number of contacts:
- 144 PINS
- Rated current:
- 10 A
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Description
Specification
Rectangular heavy duty connector HDD crimping series
Rectangular heavy duty connector HDD crimping series , more types combination for the pins and choose the pins which you need
144Poles + PE, 10 A Female Crimping Terminal :
| Inserts | Suitable Shell:32BHood/Housing |
| Number of contacts | 144 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| ---Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H16B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HDD-144-MC | SO-HDD-144-FC |
| H | 09160723001 09160723011 | 09160723101 09160723111 |
| ILME | CDDM 72 CDDM 72 N | CDDF 72 CDDF 72 N |
| TE | ||
| LAPP EPIC | 11.2852 11.2854 | 11.2862 11.2864 |
| PHOENIX | 1584075 1584088 | 1584091 1584101 |
| MOLEX | ||
| WEIDMULLER | HDC HDD 72 MC HDC HDD 72 MC 73-144 | HDC HDD 72 FC HDC HDD 72 FC 73-144 |
| WIELAND | 73.810.4253.0 | 73.800.7253.0 |
| AMPHENOL |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type
Location
SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| Rectangular heavy duty connector HDD crimping series HDD-144-FC | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
