09330062701 Heavy Duty Connector for KUKA Industrial Solution 6pin female

Part:
SO-HE-006-F
Number of contacts:
6
Rated current:
16A
Rated voltage conductor:
500V
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Order No.:
09330062701
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF

09330062701  Heavy Duty Connector for KUKA Industrial Solution  6pin female

09330062701  Heavy Duty Connector for KUKA Industrial Solution

09330062701  Heavy Duty Connector for KUKA Industrial Solution ,used in the automation area , you may confirm the poles to us and the types for hood and housing ,we choose the right type .

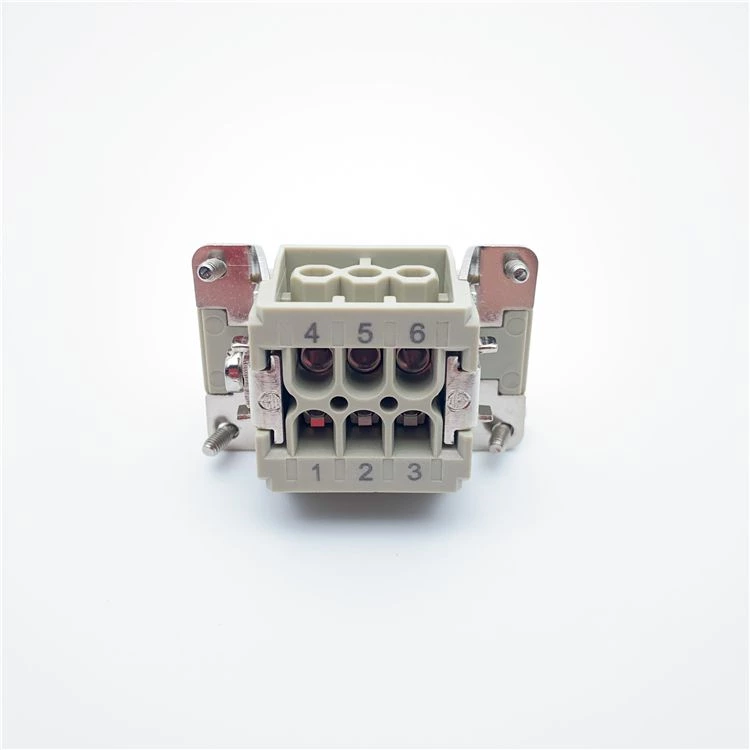

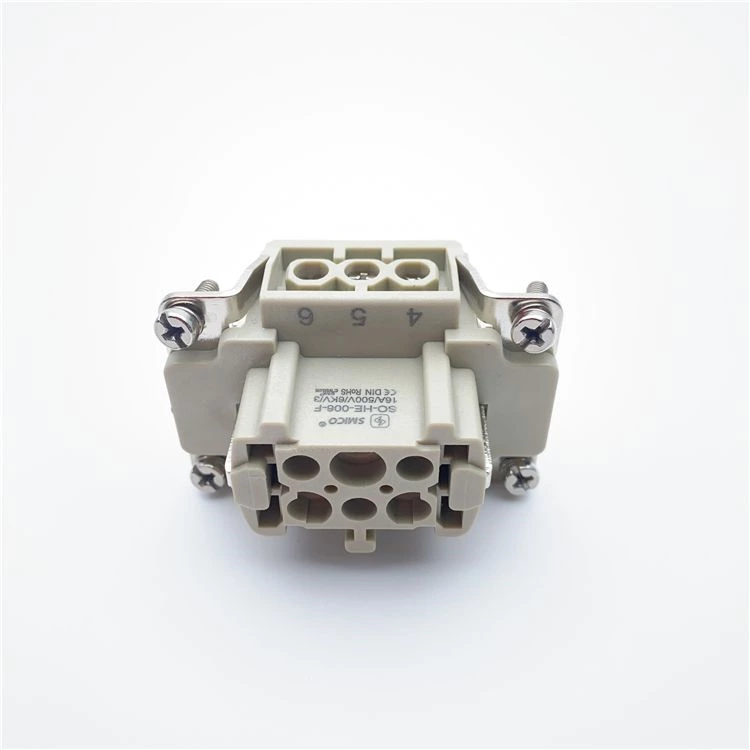

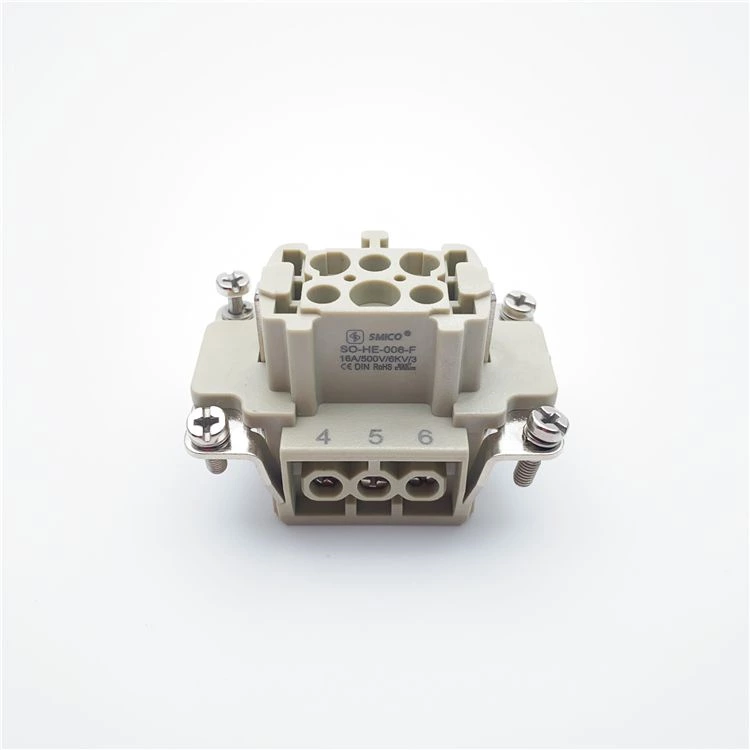

6 Poles+PE,16A,screw Female insert

Inserts Suitable Shell:6BHood/Housing
Number of contacts 6
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 0.14-2.5mm2
---AWG 26-14
---Tightening/Test torque 0.5N·m
---Stripping length 7.0mm



SMICO heavy duty connector can match the following interchangeable.

The hood and housing for H6B .

Suppier Plug insert Socket insert
SMICO SO-HE-006-M SO-HE-006-F
H 09330062601 09330062701
ILME CNEM 06 T CNEF 06 T
TE
LAPP EPIC 10.1900 10.1910
PHOENIX 1648115 1648128
MOLEX
WEIDMULLER HDC HE 6 MS  HDC HE 6 FS
WIELAND  70.310.0602.0  70.300.0602.0
AMPHENOL

Heavy duty connectors are mainly used in various equipment that requires electrical and signal connections.

  • They can provide effective protection to themselves in harsh environments such as sand, rain, ice, snow, oil, etc., so they can maintain good working performance even in extremely harsh environments.
  • Heavy duty connectors are highly integrated connectors that can save labor time and improve work efficiency. In addition, heavy duty connectors can efficiently implement the modularization of equipment functions, so that the equipment can be easily and safely transported, installed, maintained, and repaired.
  • Heavy duty connectors are generally classified by pins, and the commonly used types are 3 pin, 4 pin, 6 pin, 10 pin, 16 pin, 24 pin, 32 pin and 48pin.
