Heavy Duty Connector 09330062601 screw 6pin male insert

Part:
SO-HE-006-M
Number of contacts:
6
Rated current:
16A
Rated voltage conductor:
500V
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Order No.:
09330062601
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF

Heavy Duty Connector  09330062601 screw 6pin male insert

Heavy Duty Connector  09330062601 screw 6pin male insert

Heavy Duty Connector  09330062601 screw 6pin male insert- -SMICO Connectivity 6pin HE-006-M ,16A used for industrial robot ,various harness  field

6 Poles+PE,16A,screw male insert

Inserts Suitable Shell:6BHood/Housing
Number of contacts 6
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 0.14-2.5mm2
---AWG 26-14
---Tightening/Test torque 0.5N·m
---Stripping length 7.0mm



SMICO heavy duty connector can match the following interchangeable.

The hood and housing for H6B .

Suppier Plug insert Socket insert
SMICO SO-HE-006-M SO-HE-006-F
H 09330062601 09330062701
ILME CNEM 06 T CNEF 06 T
TE
LAPP EPIC 10.1900 10.1910
PHOENIX 1648115 1648128
MOLEX
WEIDMULLER HDC HE 6 MS  HDC HE 6 FS
WIELAND  70.310.0602.0  70.300.0602.0
AMPHENOL

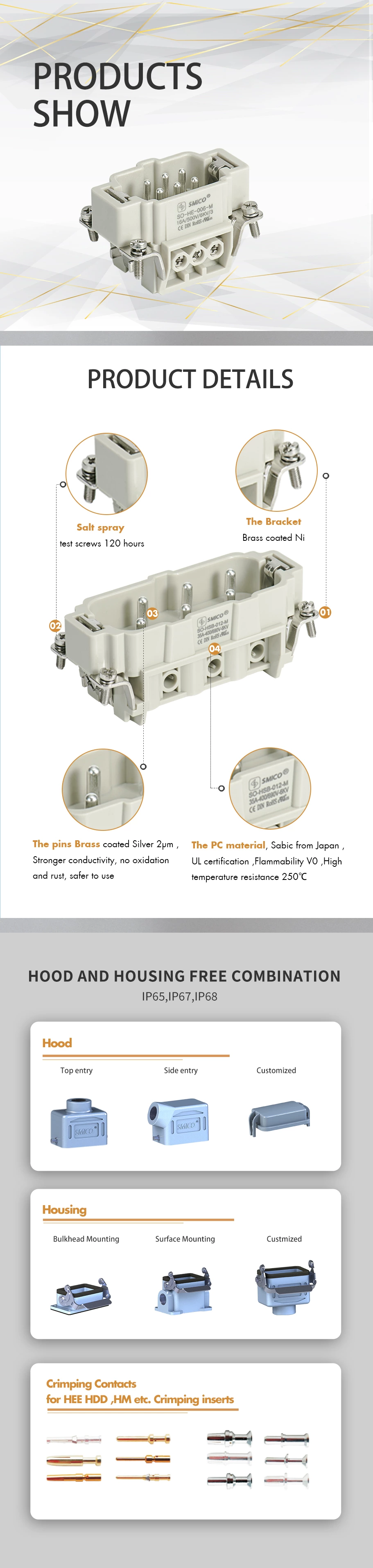

Heavy Duty Connector  09330062601 screw 6pin male insert

Heavy Duty Connector  09330062601 screw 6pin male insert

SMICO heavy duty connector

  • Compatible with other brands

  • accept OEM /ODM

  • accept customized colour : like blue ,black

  • The popular parts in stock , delivery time fast

  • Export Packing : Packing for each items respectively or packing for full one set

Heavy Duty Connector  09330062601 screw 6pin male insert

SMICO Heavy duty connectors Applications :

  • Machinery
  • Automation
  • Robotics
  • Rail
  • Energy Distribution
  • Renewable Energy
  • Construction Machinery
  • Professional Light and Sound

Heavy Duty Connector  09330062601 screw 6pin male insertHeavy Duty Connector  09330062601 screw 6pin male insertWhat products does the SMICO heavy duty connector consist of ?

The HDC portfolio consists of:

1. Insert :  1 to 216 pins for crimping terminal ,screw , cage termination .
2.Hoods, housings and bases: available in different protection degrees IP65, IP67, IP68 and IP69k
3.Contact systems: ranging from 5A to 650A in screw, crimp and cage clamp termination

4.Cable gland : according your cable range


Heavy Duty Connector  09330062601 screw 6pin male insert
