10 pin heavy duty connector HDC HEE-010 Crimping type
- Part:
- SO-HEE-010-MC
- Number of contacts:
- 10 PINS
- Rated current:
- 16A
- Rated voltage conductor:
- 500V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09320103001
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month

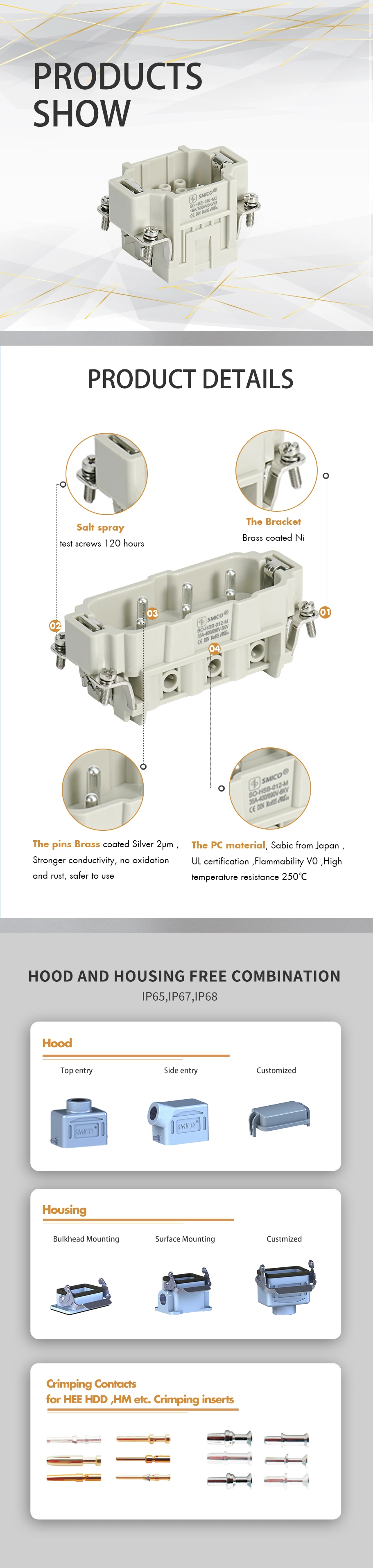

10 pin heavy duty connector HDC HEE-010 Crimping type
10 pin heavy duty connector HDC HEE-010 Crimping type 16A 500V crimping type , you can use put less pins ,use 8 pins and empty 2pin or other pins you need .
10 Poles+PE,16A,Crimping Male insert :
| Inserts | Suitable Shell:6BHood/Housing |
| Number of contacts | 10 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 830V 8kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm2 |
| ---AWG | 26-12 |
| ---Stripping length | 7.5mm |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H6B .
| Suppier | Plug insert | Socket insert |
| SMICO |
SO-HEE-010-MC |
SO-HEE-010-FC |
| H | 09320103001 | 09320103101 |
| ILME | ||
| TE | ||
| LAPP EPIC | 10.1804C0 | 10.1814C0 |
| PHOENIX | 1584774 | 1584703 |
| MOLEX | ||
| WEIDMULLER | HDC HEE 10 MC | HDC HEE 10 FC |
| WIELAND | 70.810.1056.0 | 70.800.1056.0 |
| AMPHENOL |
How to choose SMICO Heavy duty connectors :
1. Choose the insert that you need : How many pins you need ,and the Amp ,Voltage ,screw type or Crimping type
2. Choose the hood and housing : Top entry or Side entry ,Bulkhead mounting or Surface mounting
3. Choose the size of cable gland , plastic or metal cable gland
4. If crimping type , you need choose the correct the size of pins
