Heavy duty Crimping connectors High Density module HEEE-048-FC Pins female inserts connector

Heavy duty Crimping connectors High Density module HEEE-048-FC Pins female inserts connector

Part:
SO-HEEE-048-FC
Number of contacts:
48 Pins
Rated current:
16A
Rated voltage conductor:
500V
Product Certification:
UL CUL CE ROHS DMT
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF

Heavy duty connector High Density module - Heavy duty Crimping connectors High Density module HEEE-048-FC Pins female inserts connector - China Smico Electrical

Heavy duty Crimping connectors High Density module HEEE-048-FC Pins female inserts connector

 Heavy duty Crimping connectors High Density module HEEE-048-FC Pins female inserts connector

48pin Male Heavy Duty Rectangular Connector For Plastic Injection Machine Crimp Terminal connector ,each to operation,need use crimping tool and removal tool

48 Poles+PE,16A,Crimping male insert :

Inserts Suitable Shell:16BHood/Housing
Number of contacts 48
Electrical data acc. to EN 61 984
---Rated current 16A
---Rated voltage conductor 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 830V 8kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Crimp terminal
---Wrie gauge 0.14-4.0mm2
---AWG 26-12
---Stripping length 7.5mm



SMICO heavy duty connector can match the following interchangeable.

The hood and housing for H24B .

Suppier Plug insert Socket insert
SMICO SO-HEE-046-MC SO-HEE-046-FC
H 09320463001 09320463101
ILME
TE
LAPP EPIC 10.1864C0 10.1874C0
PHOENIX 1584761 1584758
MOLEX
WEIDMULLER HDC HEE 46 MC  HDC HEE 46 FC
WIELAND 70.810.4656.0 70.800.4656.0
AMPHENOL



Heavy duty Crimping connectors High Density module HEEE-048-FC Pins female inserts connectorHeavy duty Crimping connectors High Density module HEEE-048-FC Pins female inserts connector

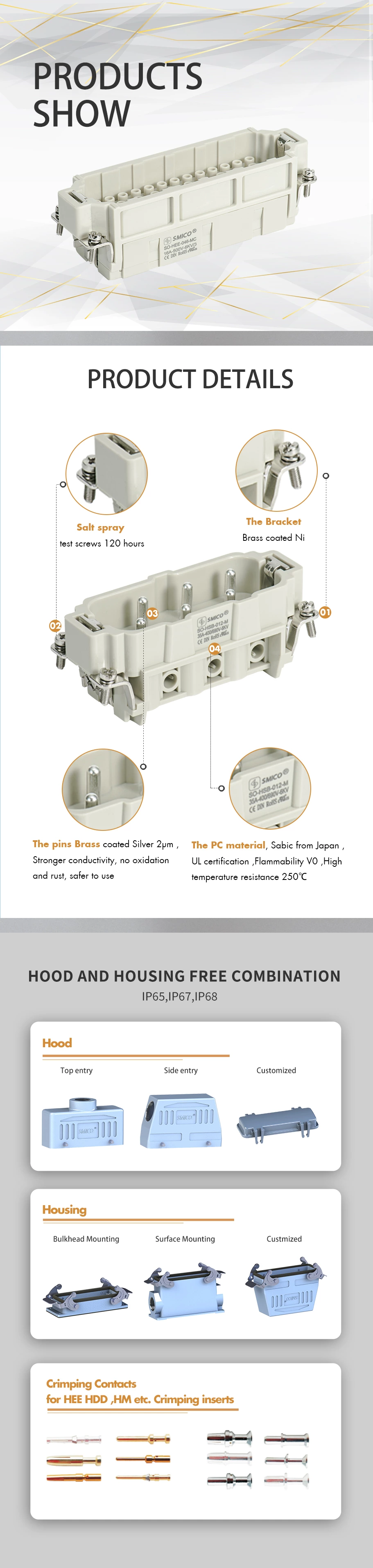

SMICO heavy duty connector

  • Compatible with other brands

  • accept OEM /ODM

  • accept customized colour : like blue ,black

  • The popular parts in stock , delivery time fast

  • Export Packing : Packing for each items respectively or packing for full one set

Heavy duty Crimping connectors High Density module HEEE-048-FC Pins female inserts connector

Advance for heavy duty connectors :

1. Realize pre-installation, pre-installation of a large number of and complex circuits, which can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.
2. The heavy-duty connector provides a highly integrated connection, and the rich combination methods maximize the effective utilization of the equipment space.
3. Heavy-duty connector The connector conveniently and efficiently realizes the modular structure of each functional template block of the equipment, so that the equipment can be transported, installed, maintained and repaired conveniently and safely. Connectors are widely used in the field of power transmission and distribution.
4. The high protection level (IP65, IP68) provided by the heavy-duty connector is incomparable to the advantages of the equipment connection system under the harsh environment. Provide effective protection in harsh environments such as sand, rain, cold, snow, and oil



Heavy duty Crimping connectors High Density module HEEE-048-FC Pins female inserts connector
