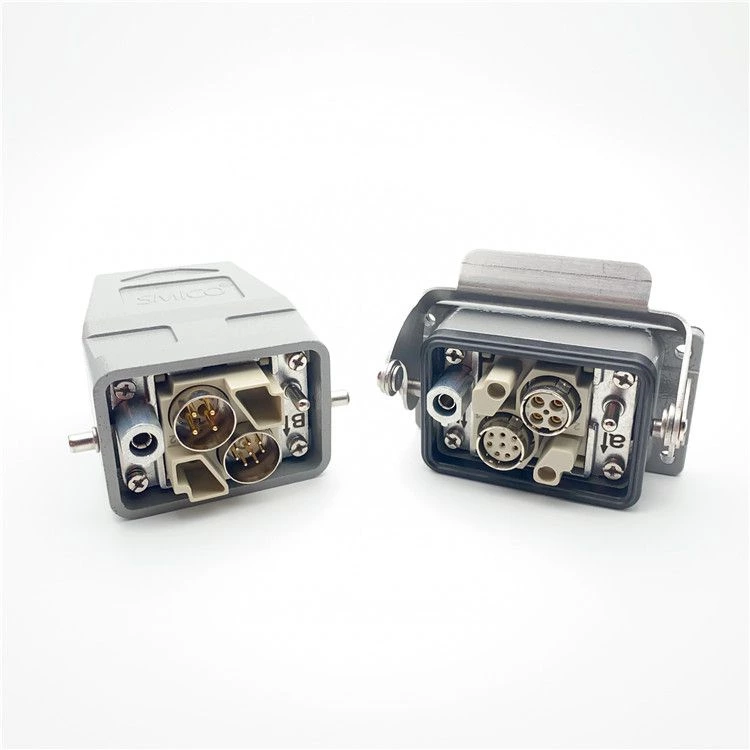

Coaxial Electric Terminal Crimp Heavy Duty Connector

Part:
EMC-008-FC
Product Certification:
CE,UL,CUL,ROHS,DMT
Order No.:
09150083113
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month

Coaxial Electric Terminal Crimp Heavy Duty Connector

Q-Coax contacts
Number of contacts
-High Density Q-Coax 8+shielding
Electrical data acc. to EN 61 984
-High Density Q-Coax 5A 50V 0.8kv 3
Rated current 5A
Rated voltage 50V
Rated impulse voltage 0.8kv
Pollution degree 3
Material
-Insulator polycarbonate
-Outer conductor zinc alloy
Contact resistance ≤4mΩ
Limiting temperatures -40℃...+85℃
Flammability acc. to UL 94 V0
Outer surface finish nickel
Cable diameter 3-9.5mm

Coaxial Electric Terminal Crimp Heavy Duty Connector
