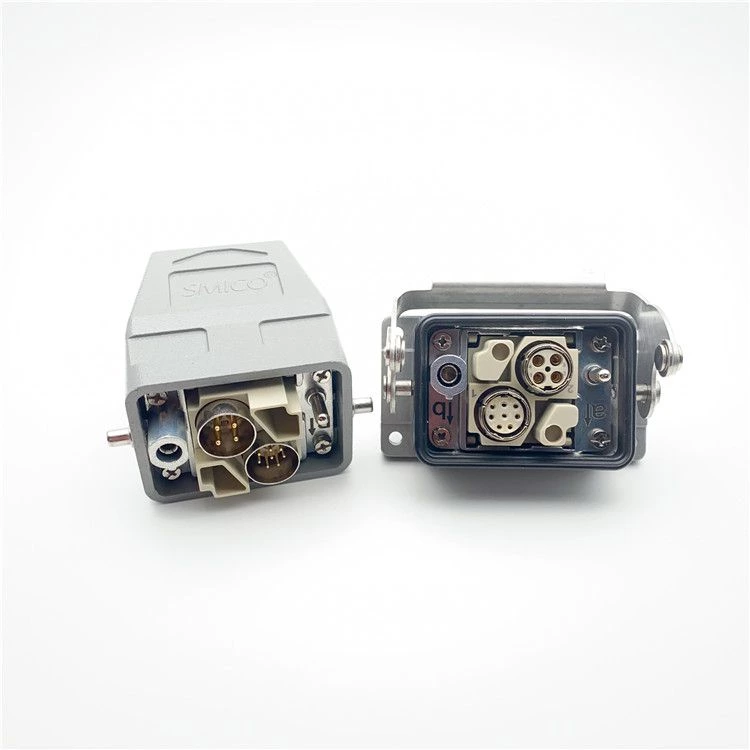

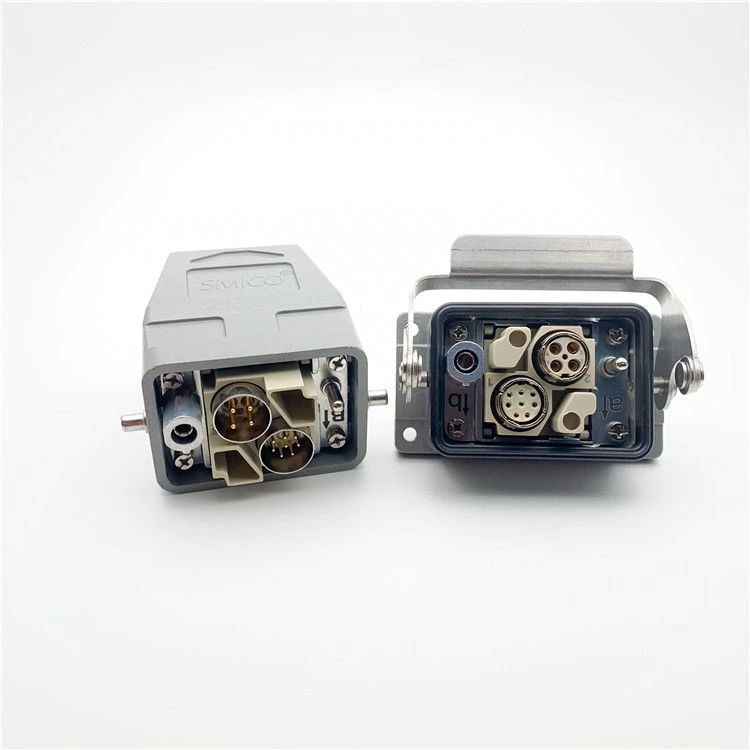

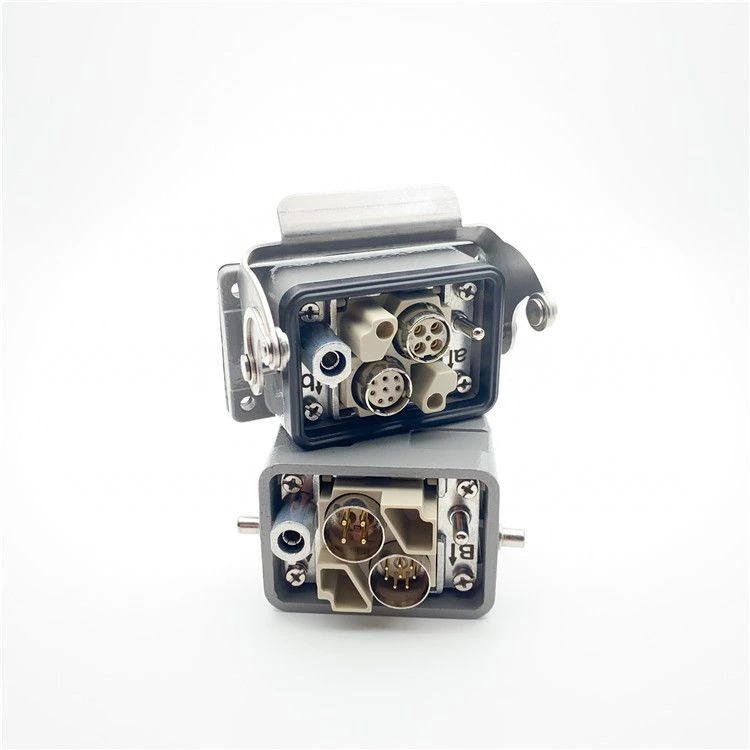

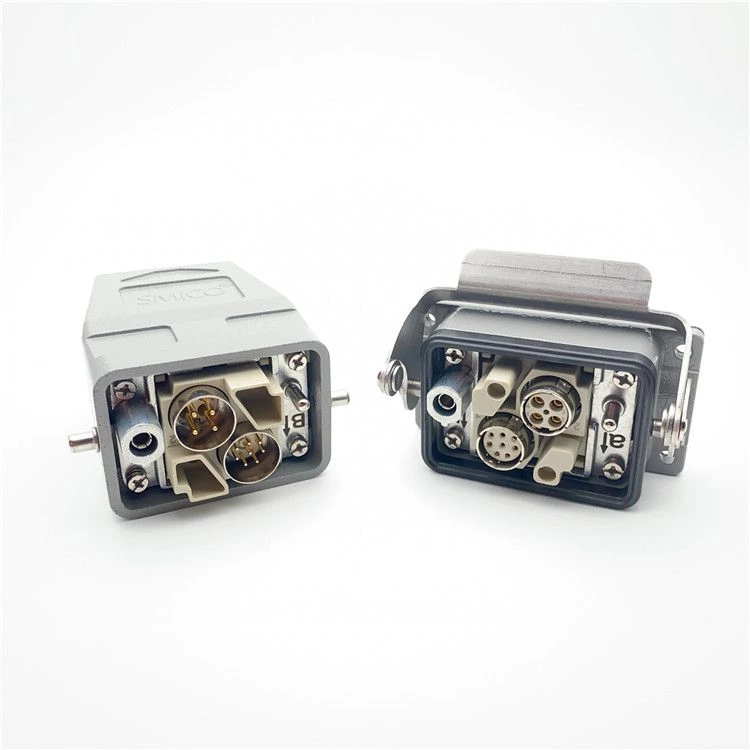

Patent Electrical Rf Coaxial Connector Cable
Shielding bus separate from housing potential.
Suitable for the transmission of sensitive signals.
The four pole H Quintax contact
- Part:
- EMC-001-MC
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09150013013
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
| Coax contacts | |
| Number of contacts | 1+shielding |
| Electrical data acc. to EN 61 984 | |
| ---D Coax | 10A 50V 0.8kV 3 |
| Rated current | 10A |
| Rated voltage | 50V |
| Rated impulse voltage | 0.8kv |
| Pollution degree | 3 |
| Impedance | |
| ---D Coax | 75Ω |
| Material | |
| ---Insulator | polycarbonate |
| ---Outer conductor | zinc alloy |
| Contact resistance | ≤4mΩ |
| Limiting temperatures | -40℃...+85℃ |
| Flammability acc. to UL 94 | V0 |
| Outer surface finish | nickel |
| Cable diameter | 3-9.5mm |
