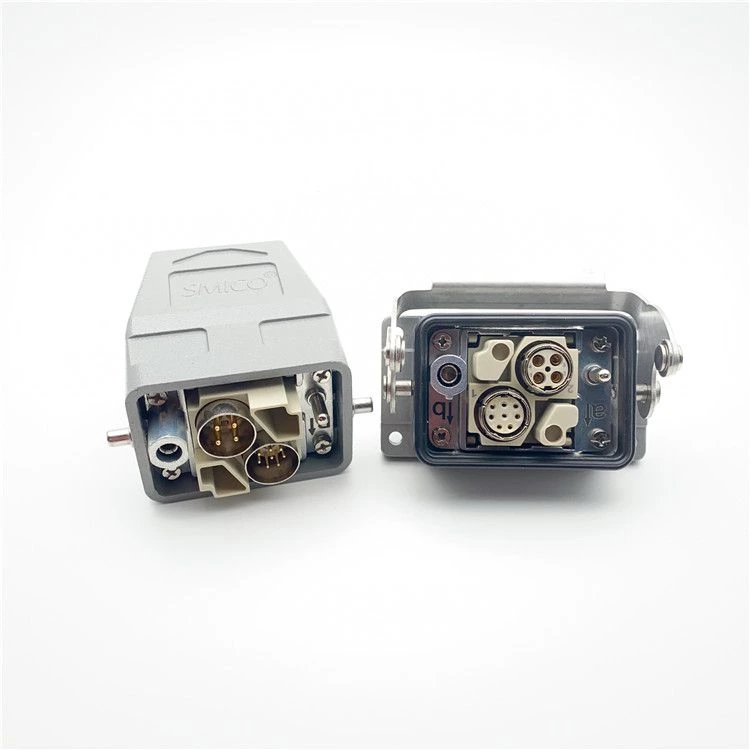

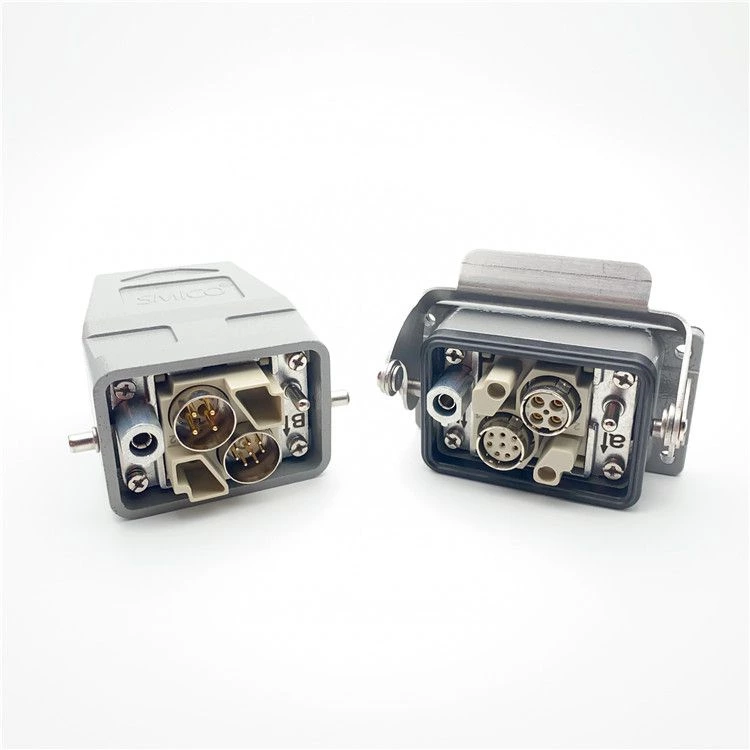

Patent Electrical Rf Coaxial Connector Cable

Shielding bus separate from housing potential. Suitable for the transmission of sensitive signals. The four pole H Quintax contact
Part:
EMC-001-FC
Product Certification:
CE,UL,CUL,ROHS,DMT
Order No.:
09150013113
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month

Patent Electrical Rf Coaxial Connector Cable

Coax contacts
Number of contacts 1+shielding
Electrical data acc. to EN 61 984
---D Coax 10A 50V 0.8kV 3
Rated current 10A
Rated voltage 50V
Rated impulse voltage 0.8kv
Pollution degree 3
Impedance
---D Coax 75Ω
Material
---Insulator polycarbonate
---Outer conductor zinc alloy
Contact resistance ≤4mΩ
Limiting temperatures -40℃...+85℃
Flammability acc. to UL 94 V0
Outer surface finish nickel
Cable diameter 3-9.5mm

Patent Electrical Rf Coaxial Connector Cable
