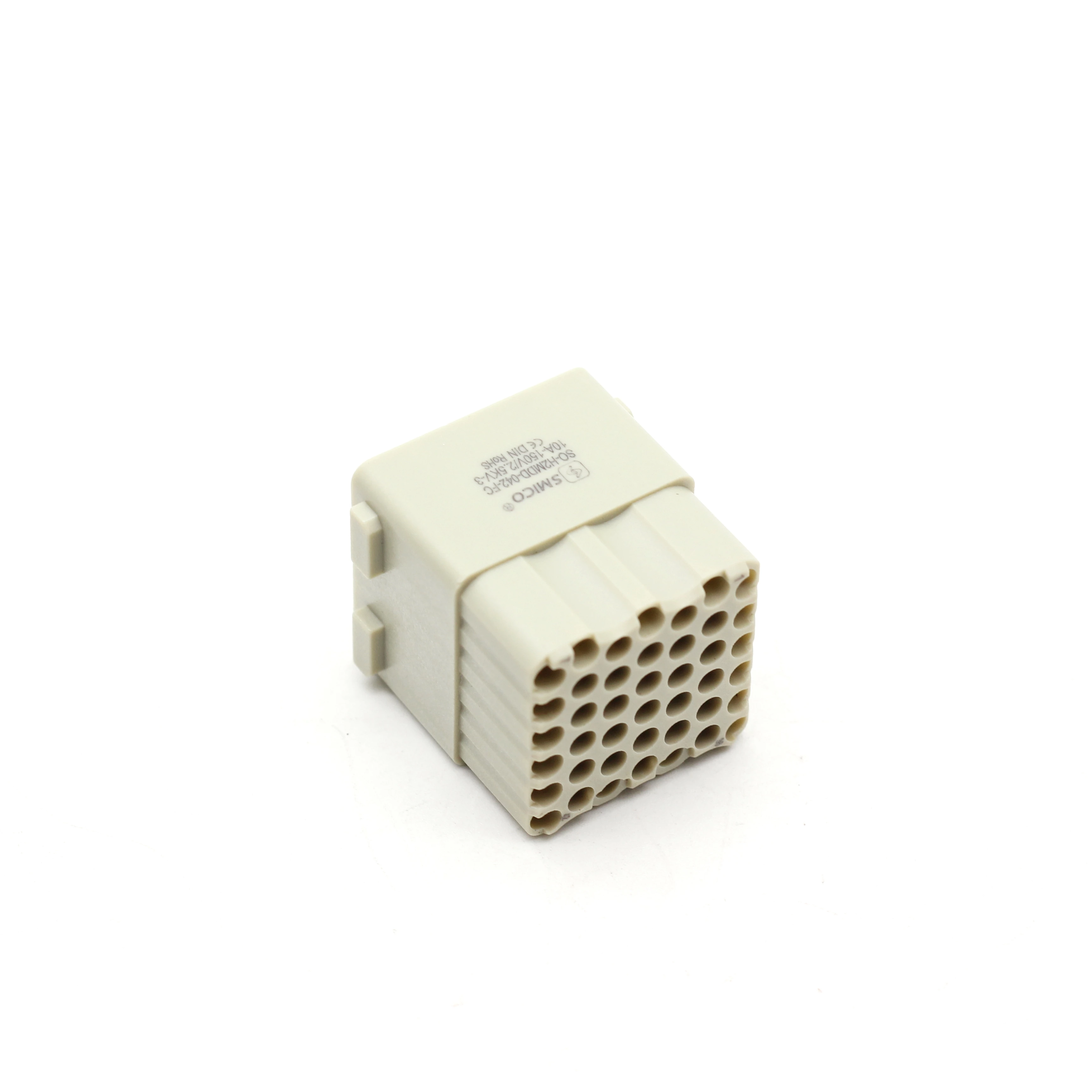

09140423001 H2MDD 42 pins female Heavy Duty Connector

Part:
SO-H2MDD-042-MC
Number of contacts:
42
Rated current:
10A
Rated voltage conductor:
250v
Product Certification:
UL CUL CE ROHS DMT
Order No.:
09140423001
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month

09140423001 H2MDD 42 pins female Heavy Duty Connector

09140423001 H2MDD 42 pins female Heavy Duty Connector

H2MDD-042-MC heavy duty connector Suitable for HD Crimp contacts.Higher density of crimp contacts.Standard module for power up to 10A. Also suitable as reliable signal connector.

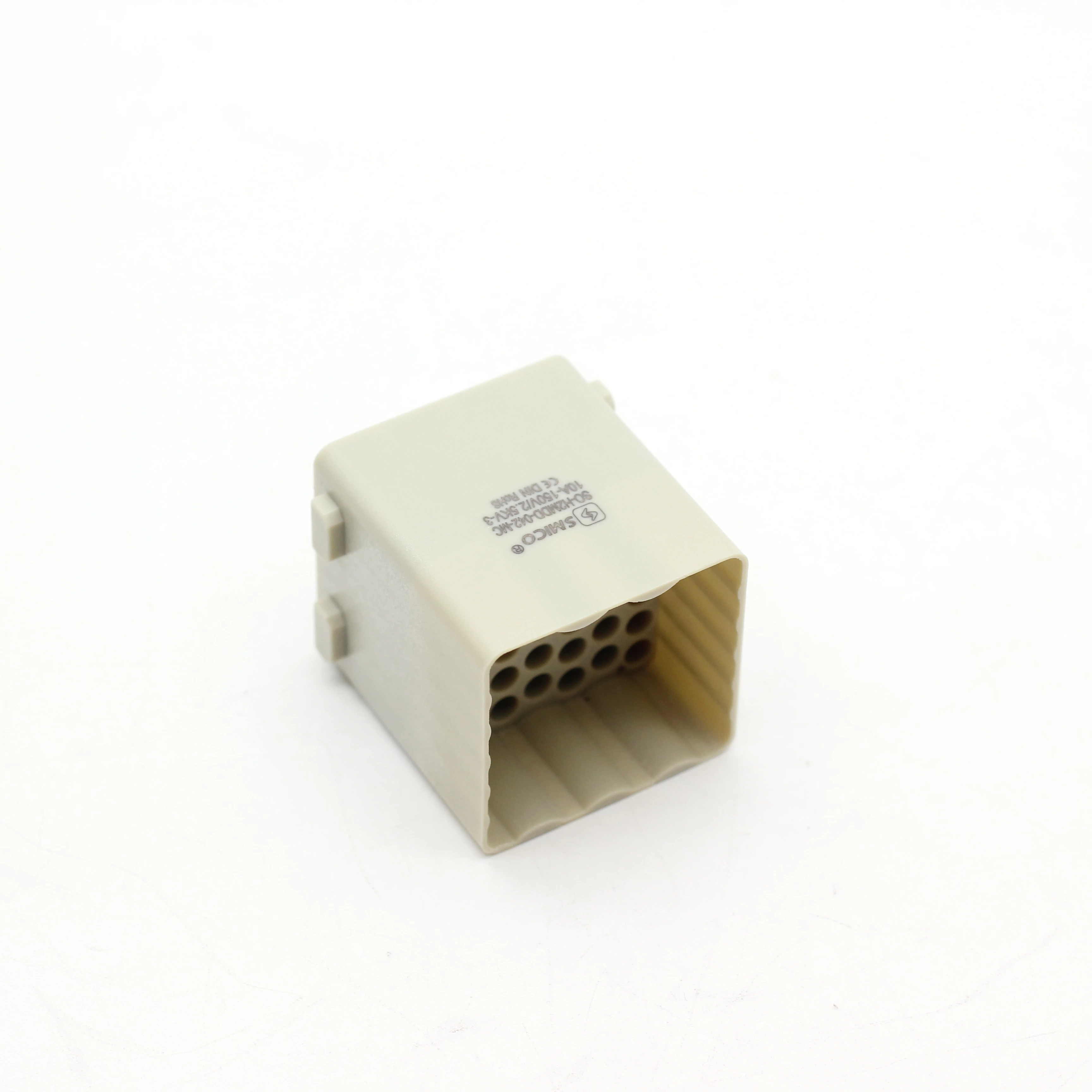

42 pin 10A Male crimping terminal :

Inserts
Number of contacts 42
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage conductor 150V
---Rated impulse voltage 2.5kV
---Pollution degree 3
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥10^10Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤1mΩ
Crimp terminal
---mm2 0.14-2.5mm2
---AWG 26-14



09140423001 H2MDD 42 pins female Heavy Duty Connector

The advance for modular heavy duty connector :

1. Combination of different connectors to one unit

2.Shorter installation times

3.Important space saving

4.Save money for components as well as for the whole industrial site

5.Future safe design due to easy extensions

09140423001 H2MDD 42 pins female Heavy Duty Connector

SMICO Heavy duty connectors Applications :

  • Machinery
  • Automation
  • Robotics
  • Rail
  • Energy Distribution
  • Renewable Energy
  • Construction Machinery
  • Professional Light and Sound
