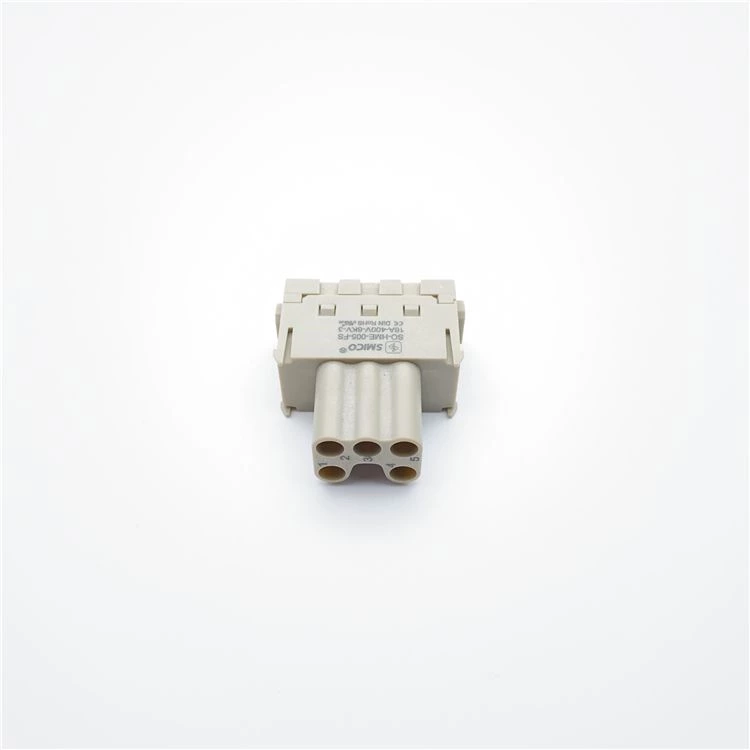

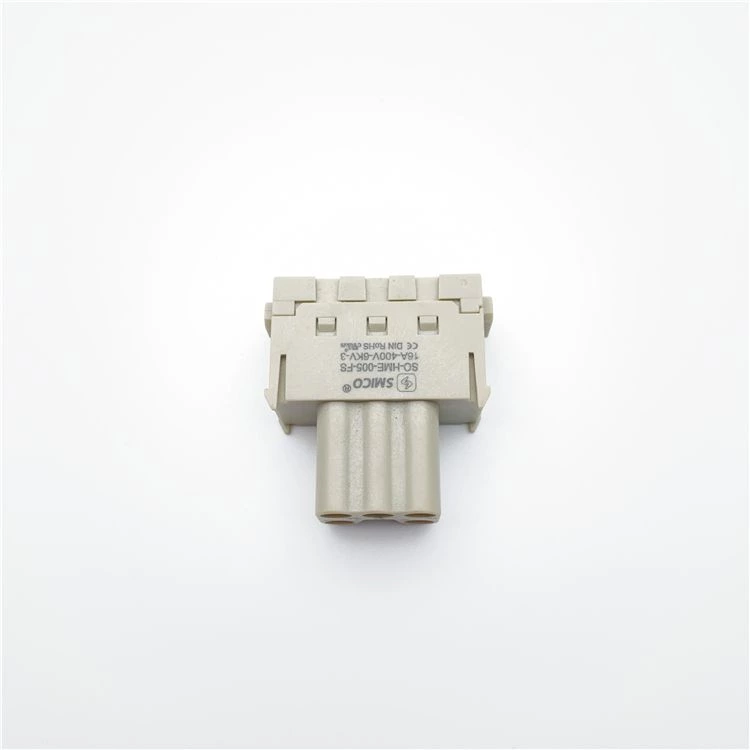

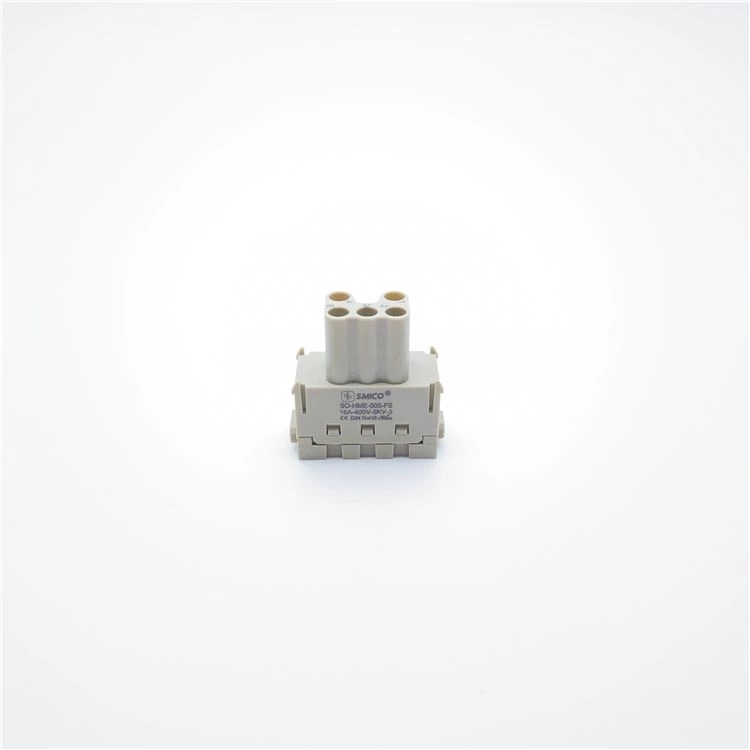

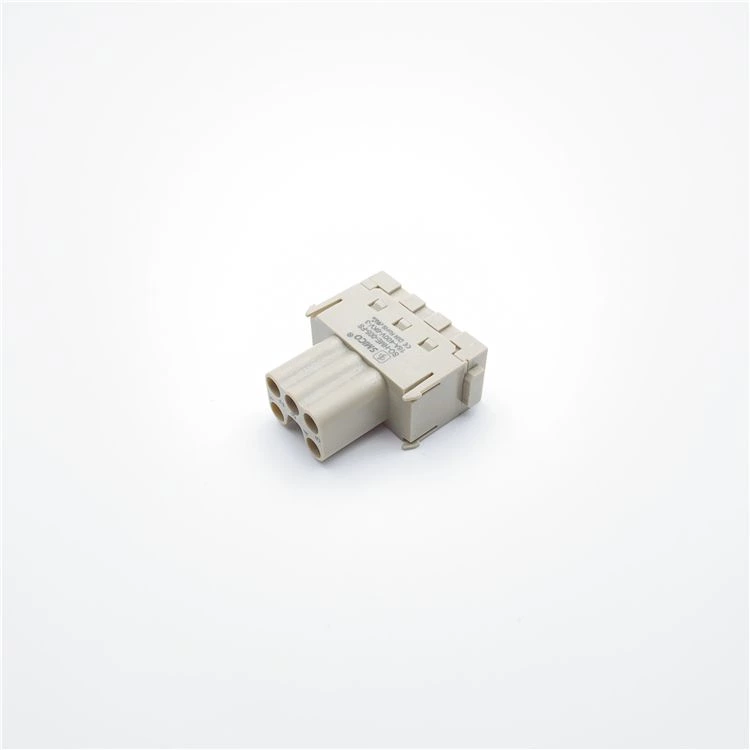

HME Module 5 Pin Heavy Duty Electrical Connector

Standard module for power up to 16A. H-Quick Lock or Crimp terminal available.
Part:
SO-HME-005-FS
Product Certification:
UL CUL CE ROHS DMT
Order No.:
09140052716
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month

HME Module 5 Pin Heavy Duty Electrical Connector

Inserts
Number of contacts 5
Electrical dataacc. to EN 61 984
---Rated current 16A
---Rated voltage 400V
---Rated impulse voltage 6kV
-Pollution degree 3
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥10^10Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life -mating cycles ≥500
Contacts
Material copper alloy
Surface hard-silver plated
hard-gold plated
Contact resistance ≤3mΩ
Crimp terminal
---mm2 0.14-2.5mm2

HME Module 5 Pin Heavy Duty Electrical Connector
