35 Amp 6 Pin Heavy Duty Wire Connector 09310062701

Part
SO-HSB-006-F
Number of contacts
6 PINS
Rated current
35A
Rated voltage conductor
400/690V
Product Certification
UL CUL CE ROHS DMT
Order No.
09310062701
Product Certification
UL CUL CE ROHS DMT IEC-61984
Packaging Details
Standard Export Cartons
Delivery Time
Within 7 Days
Payment Terms
L/C, T/T, Western Union, Paypal
Supply Ability
100000 pcs per month
Contact Now

Download Drawing

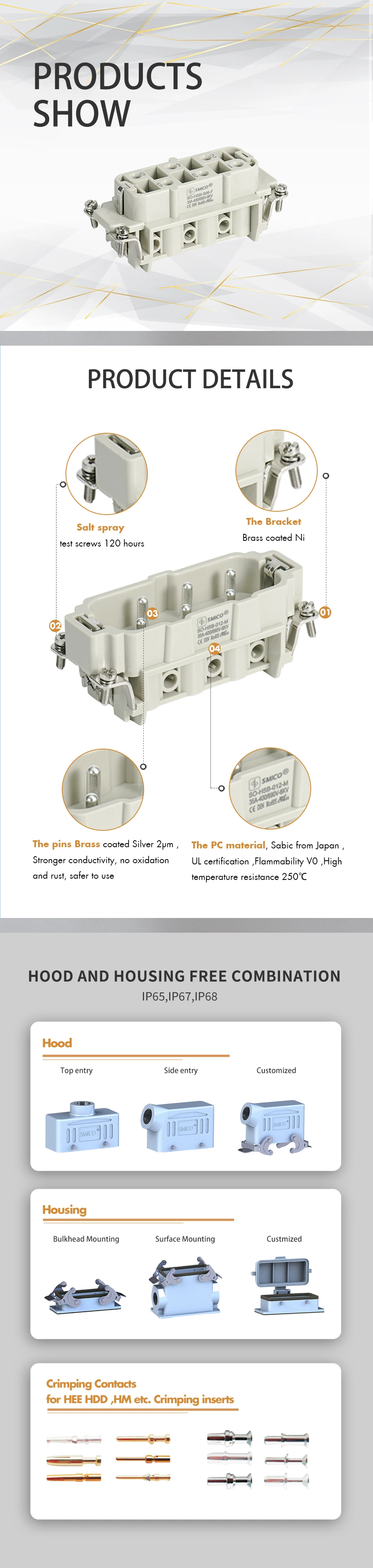

35 Amp 6 Pin Heavy Duty Wire Connector 09310062701

35 Amp 6 Pin Heavy Duty Wire Connector 09310062701

35AMP  heavy vduty connector Screw termination with wire protection,Suitable for power supply applications,Termination with standard screw driver.

SMICO heavy duty connector --connectivity technology is becoming more and more effictient , funcitonality must be used in the smallest possible space and more easy operation.

6 Poles+PE,35A,screw female insert

Inserts Suitable Shell:16BHood/Housing
Number of contacts 6
Electrical data acc. to EN 61 984
---Rated current 35A
---Rated voltage conductor - ground 400V
---Rated voltage conductor - conductor 690V
---Rated impulse voltage 6kV
---Pollution degree 3
---or 35A 500V 6kV 3
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 6mm²
---AWG 10
---Tightening torque 1.2Nm

SMICO heavy duty connector can match the following interchangeable.

The hood and housing for H16B .

Suppier Plug insert Socket insert
SMICO

SO-HSB-006-M

SO-HSB-006-F

H 09310062601 09310062701
ILME
TE T2060062101-000 T2060062201-000
LAPP EPIC 10.1700 10.1710
PHOENIX
MOLEX
WEIDMULLER HDC HSB 6 MS  HDC HSB 6 FS
WIELAND
AMPHENOL

SMICO heavy duty connector

  • Compatible with other brands

  • accept OEM /ODM

  • accept customized colour : like blue ,black

  • The popular parts in stock , delivery time fast

  • Export Packing : Packing for each items respectively or packing for full one set

  • Without MOQ except the customized type
