UKK 500A DIN rail brass conductor power distribution box screw Terminal Block

Part:
UKK-500
Rated current:
500A
Rated voltage conductor:
690V
Packaging Details:
EXPORT CARTON
Delivery Time:
within 7 days
Payment Terms:
T/T
Supply Ability:
10000pcs/week
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month

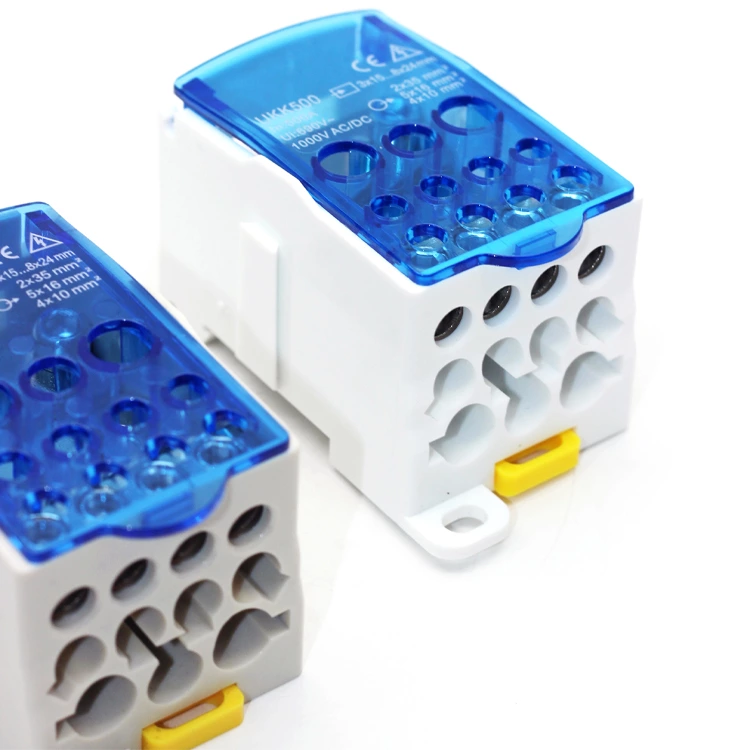

UKK 500A DIN rail brass conductor power distribution box screw Terminal Block

Place Of Origin: China Logo: Customized Logo Is Available
Color: Grey Blue Connect: Screw Type Terminal Blocks
Type: Easy DIN Rail Mountable Design Ampere: 500 A
Installation Hole: 54mm
High Light: terminal block distributor , connection distribution block

A power distribution box is commonly employed in high-current power distribution applications. It provides a convenient, cost-effective, and safer method for distributing power from a single input source to multiple outputs. Equipped with a removable main cover, it allows for easy access during installation and maintenance.

These distribution boxes are designed to ensure high conductivity and excellent electrical contacts, thereby minimizing energy loss and maximizing efficiency in power distribution. They offer a reliable and secure solution for managing power distribution in various settings, providing enhanced safety and operational reliability.

Cable fixing screw diameters>95% fill ratio: excellent electrical.

Clip-on DIN rail or mount to panel with screws: easy fixing.

High safety.

Simple and quick operating.

Professional power design.

Safe and stable performance.

Made from safe and high quality material.

Reasonable Design save the installation space.

Brass crimping frame for better conductivity.

It is preferably used in electrical machine control systems.

keeping only one input, the blocks can be connected in parallel using a jumper wire.

Model No. UKK 500A
Color Blue and Gray
Length/Height/Wide (mm) 47/50/95
Connection method Screw connection
Material Flame resistant Nylon PA66, brass conductor
Rated Voltage/Current 690V400A
Entry Specification 3X15/8X24mm²
Output Specification 2X35/5X16/4X10 mm²
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO SMICO, LOGO can be customized
Certification CE/RoHS/CQC/ISO 9001

 UKK 500A DIN rail brass conductor power distribution box screw Terminal Block

UKK 500A DIN rail brass conductor power distribution box screw Terminal Block

UKK 500A DIN rail brass conductor power distribution box screw Terminal Block

UKK 500A DIN rail brass conductor power distribution box screw Terminal Block

UKK 500A DIN rail brass conductor power distribution box screw Terminal Block
