80A Din Rail Distribution box terminal block junction box with cover
80A Din Rail Distribution box terminal block junction box with cover
- Part:
- UKK-80
- Number of contacts:
- 1 in 6 out
- Rated current:
- 80A
- Rated voltage conductor:
- 690V
- Packaging Details:
- EXPORT CARTONS
- Delivery Time:
- with 7 days
- Payment Terms:
- T/T
- Supply Ability:
- 10000/week
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
80A Din Rail Distribution box terminal block junction box with cover
| Place Of Origin: | China | Logo: | SMICO |
| Color: | Grey+Blue | Connecting: | Screw Terminal Blocks |
| Type: | DIN Rail Terminal Blocks. | Purpose: | Power Distribution Box |
| High Light: | power distribution terminal block , connection distribution block | ||

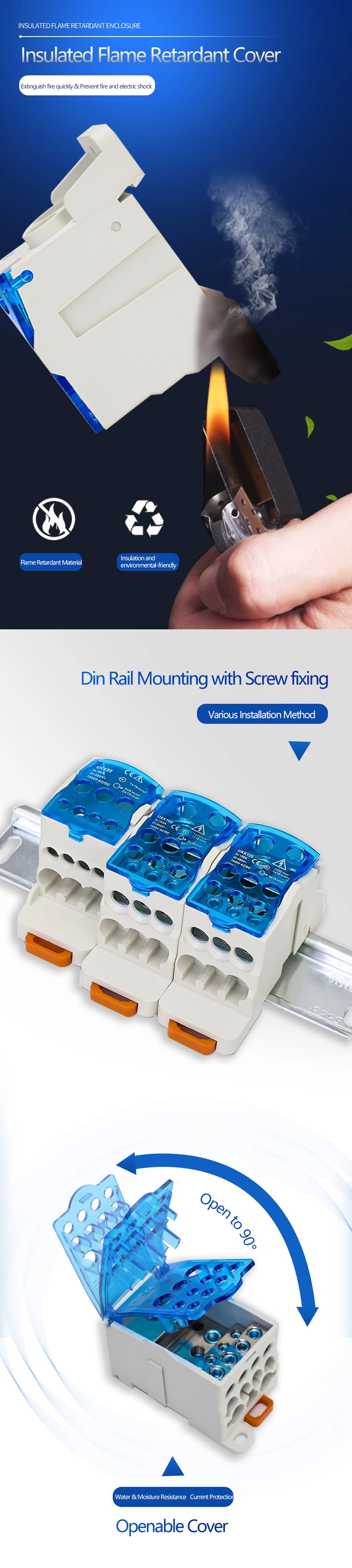

Din Mount 80a Ukk Terminal Block Junction Box is to allow versatile building of power blocks with single pole, two poles, three poles. The transparent cover make it easy to see whether the cable is reliable connecting. Protection grade is IP20 thanks to the cover.
High conductivity with excellent electrical contacts.
High safety.
Blue and Grey color.
Standard specification.
Simple and quick operating.
Profession power design.
Safe and stable performance.
Made from safe and high quality material.

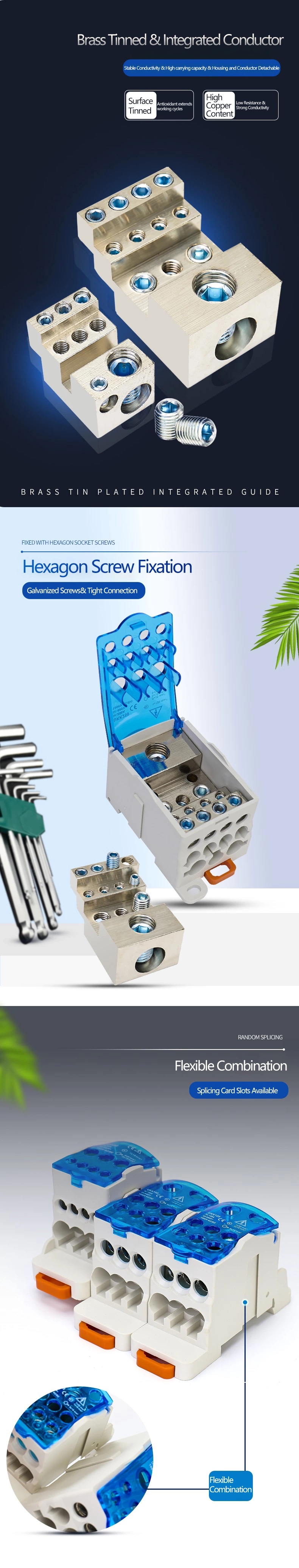

Brass crimping frame for better conductivity.
Reasonable Design save the installation space.
Compact design, design to EN 60947-1
Suitable for 35mm DIN rail .
Customized LOGO is accept, other color can be customized.
| Model No. | UKK 80A |
| Color | Blue and Gray |
| Length/Height/Wide (mm) | 28X65X47 |
| Connection method | Screw connection |
| Material | Flame resistant Nylon PA66, brass conductor |
| Rated Voltage/Current | 690V/80A |
| Entry Specification | 1X16 mm² |
| Output Specification | 2X16/ 4X16 mm² |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | SMICO, LOGO can be customized |
