16A Removal tool for heavy duty connector 09990000319

Part
16A Removal Tool
Number of contacts
1
Rated current
16A
Order No.
09990000319
Product Certification
UL CUL CE ROHS DMT IEC-61984
Packaging Details
Standard Export Cartons
Delivery Time
Within 7 Days
Payment Terms
L/C, T/T, Western Union, Paypal
Supply Ability
100000 pcs per month
Contact Now

16A Removal tool for heavy duty connector  09990000319
16A removal tool
removal tool for heavy duty connector
09990000319 removal tool
HEE removal tool for heavy duty connector

16A Removal tool for heavy duty connector  09990000319

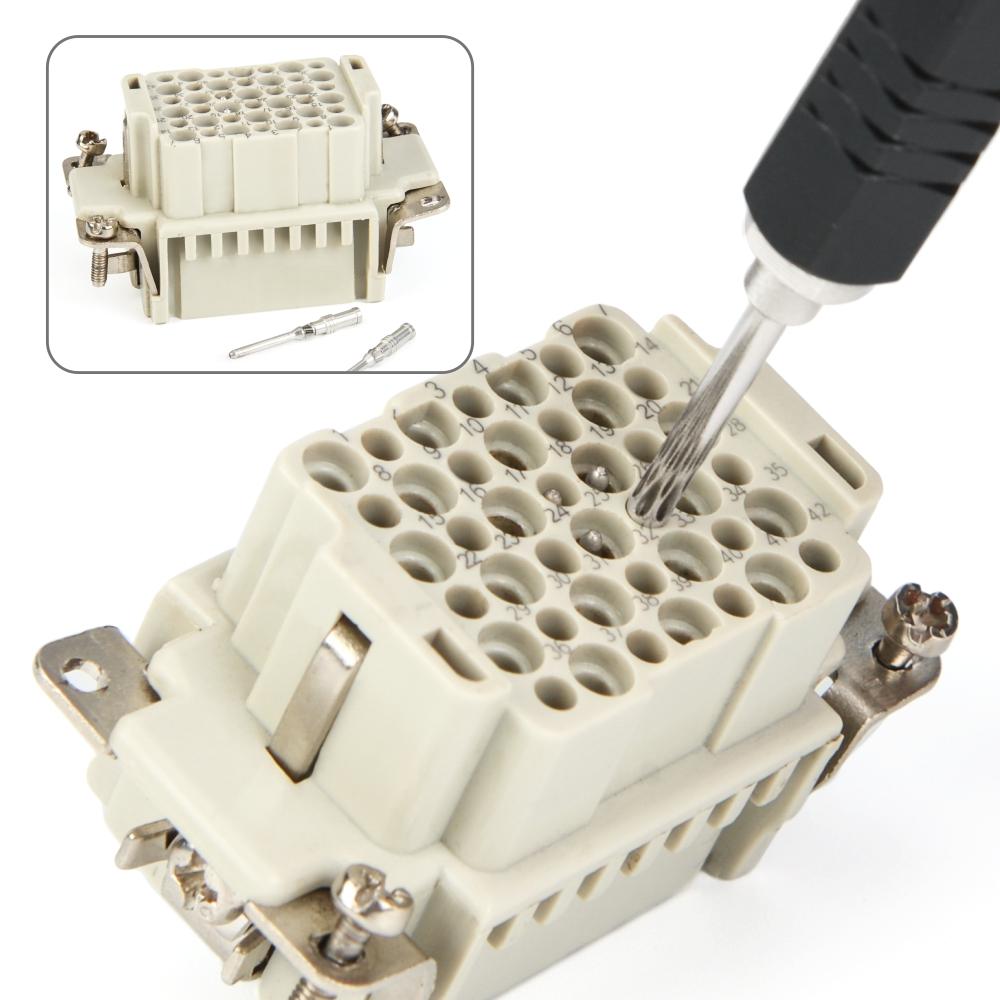

Insert tool from the mating side of the connector until it comes to a stop by putting additional pressure on the tool the contact is unlocked and pushed out towards the termination side when using the removal tool the contact is unlocked by pushing the central plunger after that the contact with the attached wire can be pulled out of the isolator body.

  • Applicable to remove Wain 16A CESM/F contacts(no claws) for HE, HEE series connectors

  • Applicable to remove Hartings 0933000XXXX contacts for HAN E series connectors

  • The head part is made of alloy tool steel and the grip is made of aluminum

  • Pocket-size, easy to carry with

  • Length: 135mm
