A0540HX Ratchet Crimping Tool for heavy duty connector AWG 26-12

Part
Heavy duty connector Crimping Tool
Product Certification
UL CUL CE ROHS DMT IEC-61984
Packaging Details
Standard Export Cartons
Delivery Time
Within 7 Days
Payment Terms
L/C, T/T, Western Union, Paypal
Supply Ability
100000 pcs per month
Contact Now

A0540HX Ratchet Crimping Tool  for heavy duty connector  AWG 26-12
Crimping tool for heavy duty connector
tool for heavy duty connector
Crimping tool for HAN E heavy duty connector
crimping tool for Han D heavy duty connector
heavy duty connector tool
10A ,16A heavy duty connector



A0540HX Ratchet Crimping Tool  for heavy duty connector  AWG 26-12

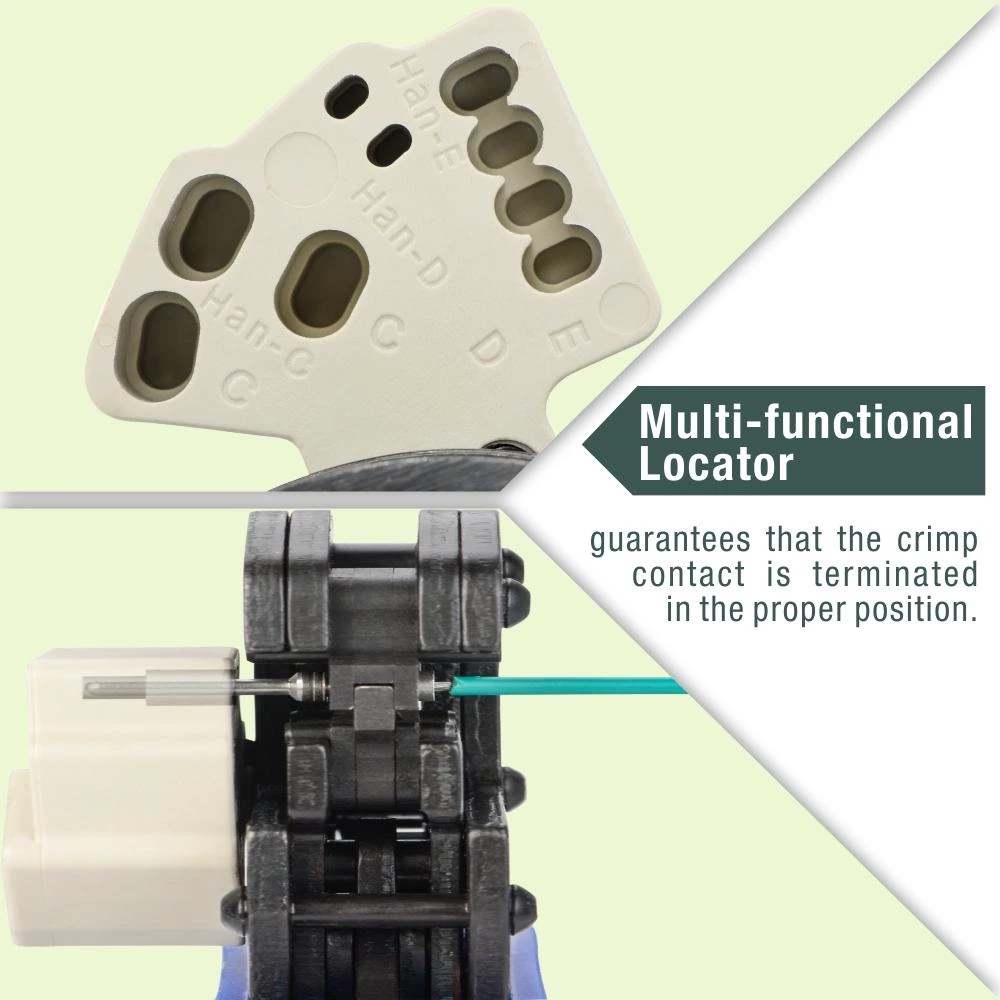

SMICO Ratchet Crimping Tool works for AWG 26-12 Han C,Han D,Han-E Contact or Connectors with Locator Set (0.14mm²-4.0mm²) SMICO A0540HX ratchet crimping tool is designed to crimp solid turned .

Heavy duty connector crimping tool Features:

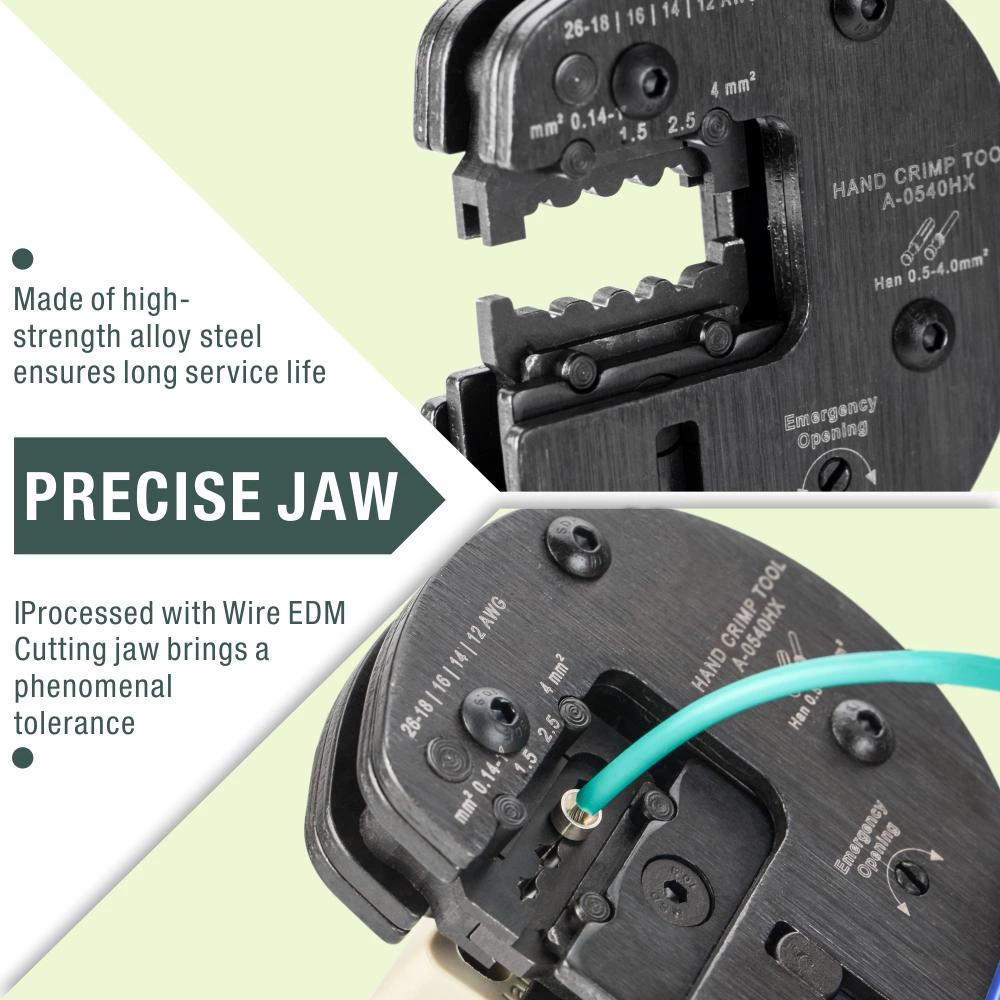

  • Precise crimping die processed with WIRE EDM Cutting to ensure a phenomenal tolerance
  • Ratchet mechanism increases the crimp reliability and enables the operator to repeatedly produce consistent, high-quality crimps
  • Ratchet emergency releasement can be actuated when miss-crimp

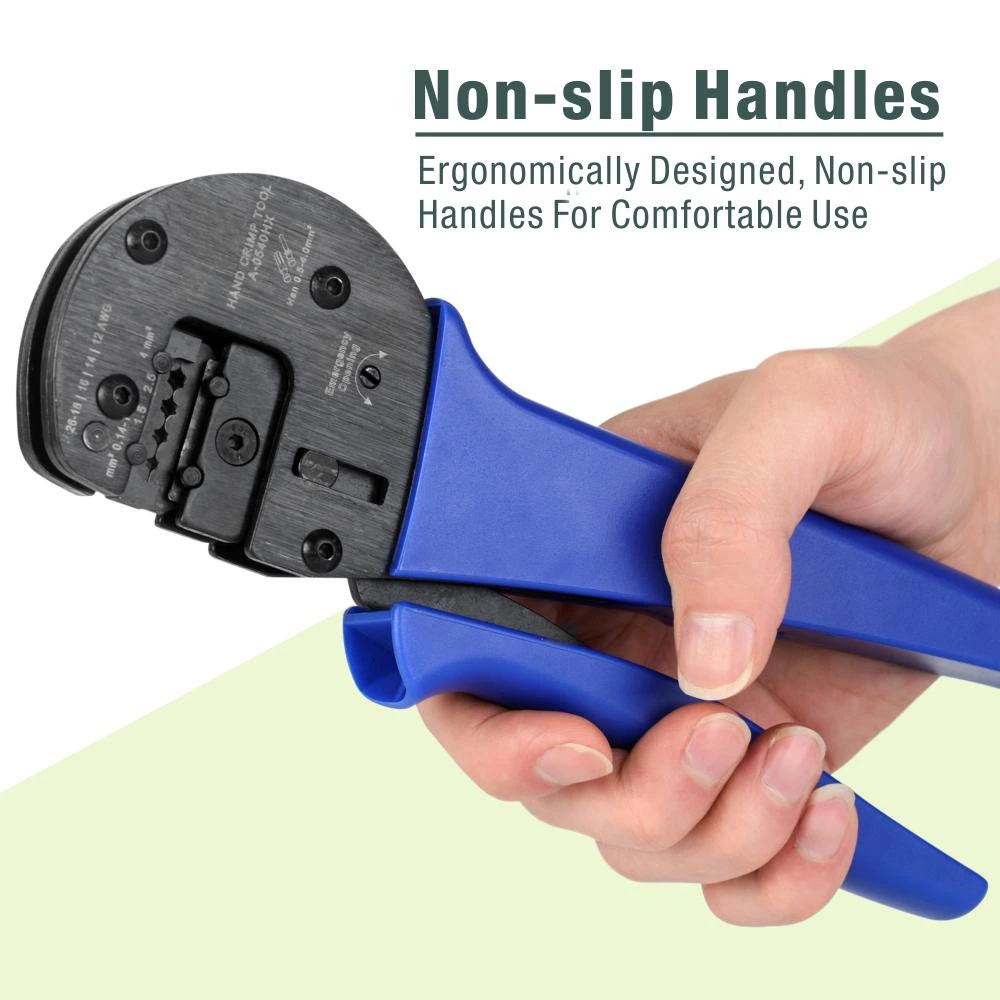

  • Ergonomically designed, non-slip handles for comfortable use

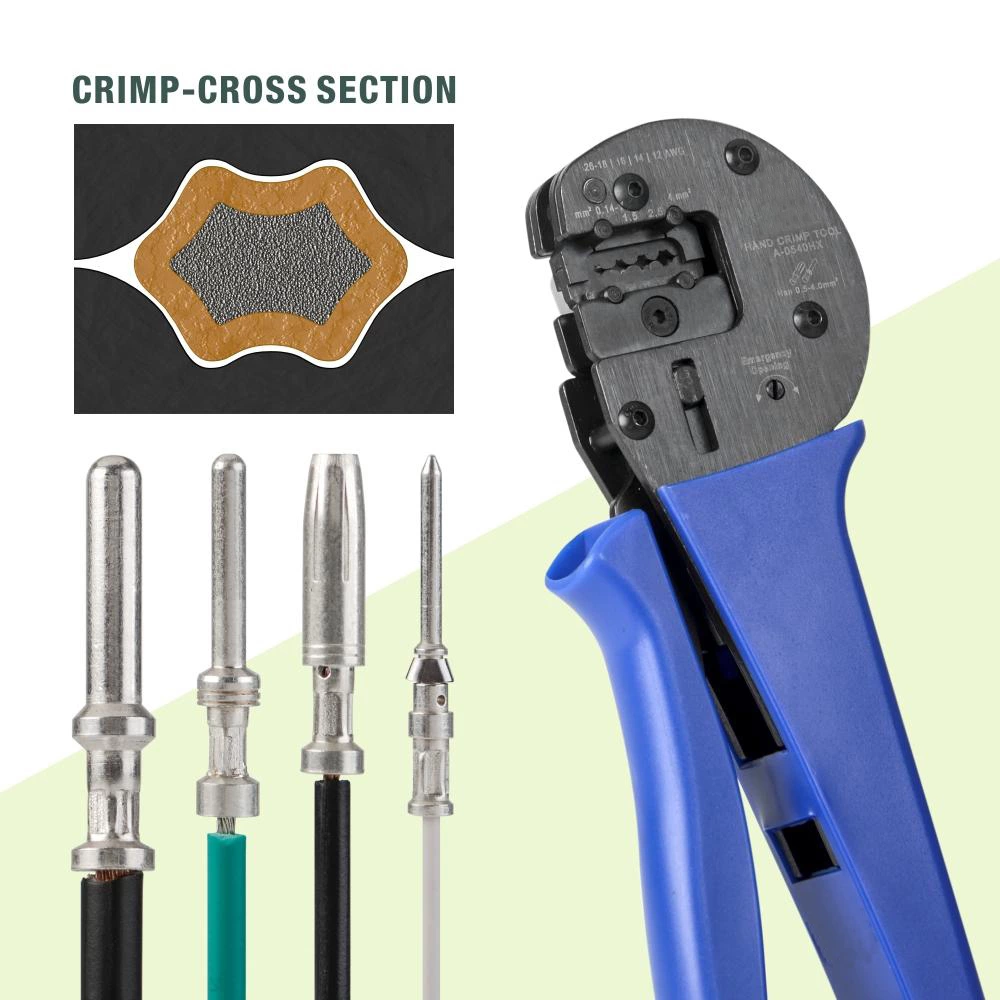

  • Applicable to Han C, Han D, Han E contacts



Crimping tool for heavy duty connector Specifications:

Wire Cross Section Minimum: 0.14mm²
Wire Cross Section Maximum: 4mm²
Han D: 0.14mm² to 1.5mm²
Han E: 0.5mm² to 4mm²
Han C: 1.5mm² to 4mm²
